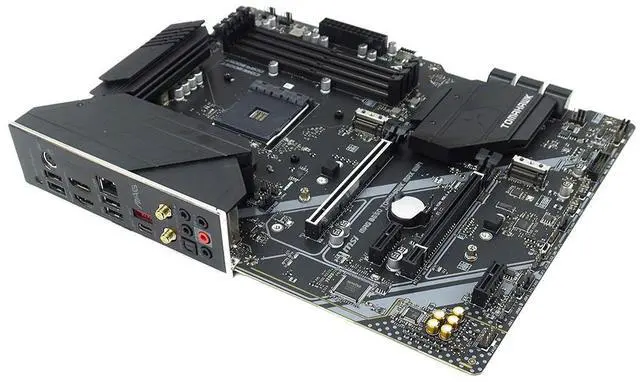

MAG B550 Tomahawk_Ua MSI Tomahawk MAX Wifi AMD Socket AM4 DDR4 Hdmi DP ATX Motherboard AMD Socket AM4 Motherboard

Model: MAG B550 TOMAHAWK_UA
Compatible Part Numbers: MAG B550 TOMAHAWK MAX WiFi
Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 1866MHz / 2133MHz / 2400MHz / 2667MHz / 2800MHz / 2933MHz / 3000MHz / 3066MHz / 3200MHz by JEDEC; 2667MHz / 2800MHz / 2933MHz / 3000MHz / 3066MHz / 3200MHz / 3466MHz / 3600MHz / 3733MHz / 3866MHz / 4000MHz / 4133MHz / 4266MHz / 4400MHz / 4533MHz / 4600MHz / 4733MHz / 4800MHz / 4866MHz / 5000MHz / 5100+MHz by A-XMP OC
Storage Interface: 2x M.2 NVMe; 6x SATA 6Gb/s
RAID Support: RAID 0 and RAID 1 for M.2 NVMe storage devices; RAID 0, RAID 1 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Realtek RTL8125B 2.5 Gbps LAN controller; AMD Wi-Fi 6E
Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
Connectors: 1x 24-pin ATX Main Power Connector; 1x 8-pin ATX 12V Power Connector; 6x SATA 6Gb/s Connectors; 2x M.2 Slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports); 2x USB 2.0 connectors (Supports Additional 4 USB 2.0 Ports); 1x 4-pin CPU Fan Connector; 1x 4-pin Water-Pump Fan Connector; 6x 4-pin System Fan Connectors; 1x Front Panel Audio Connector; 2x System Panel Connectors; 1x Chassis Intrusion Connector; 2x 4-pin RGB LED Connectors; 2x 3-pin RAINBOW LED Connectors; 1x TPM Module Connector; 1x Clear CMOS Jumper
Input/Output Ports: 1x PS/2 Keyboard / Mouse; 1x DisplayPort 1.4; 1x 2.5G LAN Port; 1x USB 3.2 Gen 2 10 Gbps Type-A; 2x Wi-Fi / Bluetooth Antenna Ports; 5x Audio Connectors; 2x USB 2.0 Port; 1x HDMI 2.1 Port; 2x USB 3.2 Gen 1 5Gbps Type-A; 1x USB 3.2 Gen 2 10Gbps Type-C; 1x Optical S/PDIF OUT
Expansion Slots: 1x PCI-Express 4.0 / 3.0 x16 slot; 1x PCI-Express 3.0 x16 slot, supports x4 speed; 2x PCI-Express 3.0 x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit

Please note, this motherboard comes with a CPU cooler backplate and I/O shield only and does not include an M.2 Shield Frozr, Wi-Fi antenna, cables, fan bracket, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
