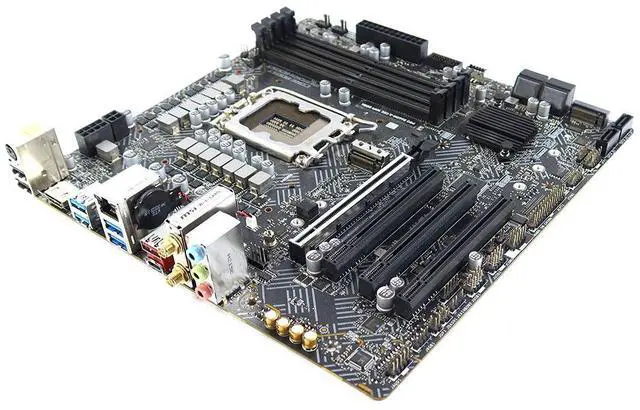

PRO B660M-A Cec_Ua MSI CEC Wifi DDR4 Intel B660 LGA1700 Hdmi M.2 ATX Motherboard NO I/O Intel LGA1700 Motherboard

Model: PRO B660M-A CEC_UA
Compatible Part Numbers: MS-7D37
Chipset: Intel B660
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 2133MHz / 2666MHz / 3200MHz (by JEDEC & POR))
Storage Interface: 2x M.2 NVMe; 6x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Realtek 8125BG 2.5 Gbps LAN controller; Intel Wi-Fi 6
Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Parallel port connector; 1x Serial port connector; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector; 1x Tuning controller connector; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED
Input/Output Ports: 1x PS/2 Keyboard / Mouse; 1x LAN port; 1x USB 3.2 Gen 2 10 Gbps Type-A; 2x Wi-Fi / Bluetooth Antenna Ports; 3x Audio Connectors; 2x USB 2.0; 1x HDMI; 4x USB 3.2 Gen 1 5 Gbps Type-A; 1x USB 3.2 Gen 2 10 Gbps Type-C
Expansion Slots: 4x PCI-Express x16 slots
Form Factor: Micro-ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit

Please note, this motherboard does not include a VRM heatsink, an I/O shield, a Wi-Fi antenna, a fan bracket, a CPU cooler backplate, cables, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
