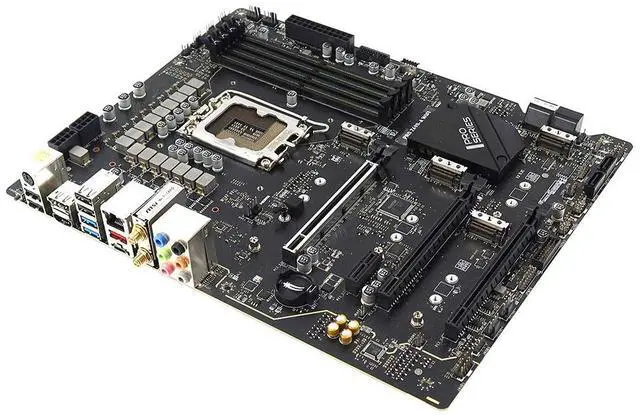

PRO Z690-A Wifi_Ua MSI Wifi Intel Z690 LGA1700 DDR5 M.2 Hdmi DP ATX Motherboard NO I/O Intel LGA1700 Motherboard

Model: PRO Z690-A WIFI_UA
Compatible Part Numbers: MS-7D25
Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 6400+MHz (OC) / 6200MHz (OC) / 6000MHz (OC) / 5800MHz (OC) / 5600MHz (JEDEC) / 5400MHz (JEDEC) / 5200MHz (JEDEC) / 5000MHz (JEDEC) / 4800MHz (JEDEC)
Storage Interface: 4x M.2 NVMe; 6x SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices; RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Intel I225-V 2.5 Gbps LAN; Intel Wi-Fi 6E
Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connectors: 1x 24-pin ATX Main Power Connector; 2x 8-pin ATX 12V Power Connector; 6x SATA 6Gb/s Connectors; 4x M.2 Slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C Port; 2x USB 3.2 Gen 1 5Gbps Connectors (supports Additional 4 USB 3.2 Gen 1 5Gbps Ports); 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports); 1x 4-pin CPU Fan Connector; 1x 4-pin Water-Pump Fan Connector; 6x 4-pin System Fan Connectors; 1x Front Panel Audio Connector; 2x System Panel Connectors; 1x Chassis Intrusion Connector; 1x Clear CMOS Jumper; 1x TPM Module Connector; 1x Tuning Controller Connector; 1x TBT Connector (Supports RTD3); 1x 4-pin RGB LED Connector; 2x 3-pin RAINBOW LED Connectors; 4x EZ Debug LED
Input/Output Ports: 1x PS/2 Keyboard / Mouse; 1x HDMI; 1x DisplayPort; 4x USB 2.0; 1x LAN Port; 2x WIFI / Bluetooth Antenna Ports; 6x Audio Connectors; 2x USB 3.2 Gen 1 5 Gbps Type-A; 1x USB 3.2 Gen 2x2 20 Gbps Type-C; 1x USB 3.2 Gen 2 10 Gbps Type-A
Expansion Slots: 3x PCI-Express x16 slots; 1x PCI-Express 3.0 x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit

Please note, this motherboard comes with a CPU cooler backplate only and does not include an extended heatsink with 7W/mK thermal pad, M.2 Shield Frozr, I/O shield, Wi-Fi antenna, cables, fan bracket, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
