$270.99
Meet Your Seller
Ubiquiti AM-5G19-120 AirMax Sector 5G-19-120 19dBi 120deg 5GHz pairs with RocketM5
- Ubiquiti AirMax 5Ghz 2X2 MIMO 19dbi 120 Degree Sector
- Rocket M5 Seamlessly Integrates with the AirMax Sector
- Frequency Range: 5.10-5.85GHz
- Gain: 18.6-19.1dBi
- Antenna is supplied with two pigtails to connect a Rocket M5
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

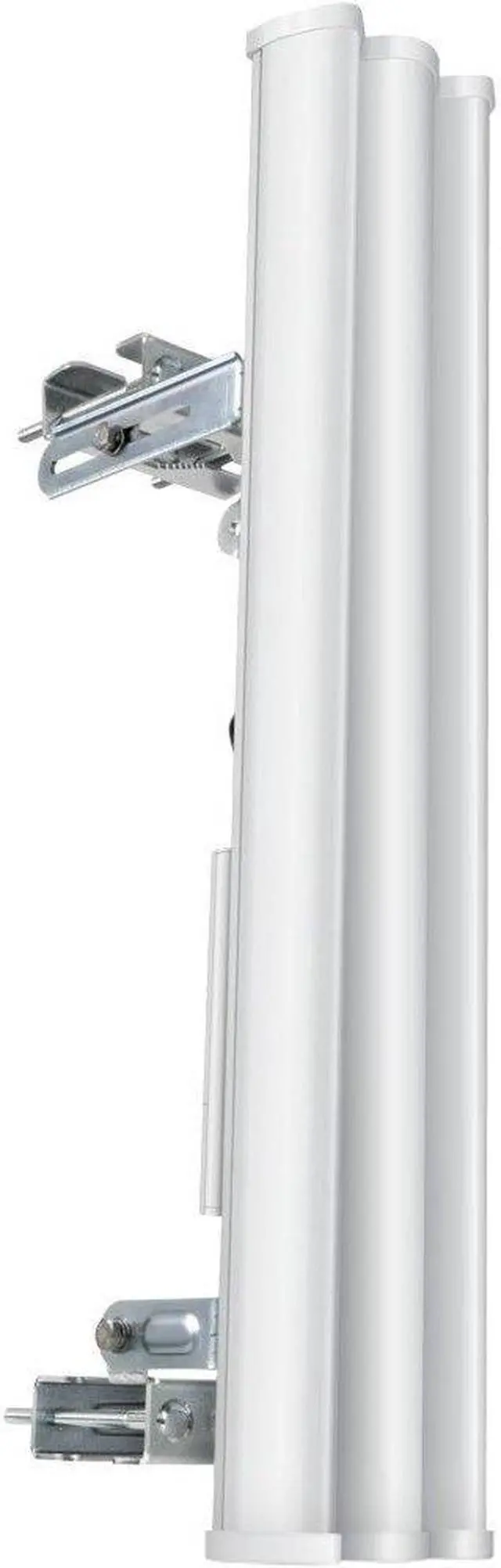

Ubiquiti AM-5G19-120 UISP airMAX 2x2 BaseStation 5 GHz, 19 dBi, 120o Sector Antenna with Rocket M BaseStation for Sector Coverage in Point-to-MultiPoint (PtMP) Networks
The airMAX Sector Antenna is a carrier-class 2x2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Key Features
- High Performance, Long Range
- Seamlessly Integrates with Rocket Radio
- Excellent Cross-Polarization Isolation
- Designed with robust mechanical for outdoor application use
- Plug and Play Integration
- Frequency Range: 5.15 - 5.85 GHz
- Gain: 18.6 - 19.1 dBi
- HPOL Beamwidth: 123deg (6 dB)
- VPOL Beamwidth: 123deg (6 dB)
- Electrical Beamwidth: 4deg
- Electrical Downtilt: 2deg
- Max.
VSWR: 1.5: 1
- Wind Survivability: 125 mph
- Wind Loading: 20 lbf @ 100 mph
- Polarization: Dual-Linear
- Cross-pol Isolation: 28 dB Min.
- ETSI Specification: EN 302 326 DN2
- Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
- Dimensions: 700 x 135 x 73mm ( 27.56" x 5.32" x 2.87" )
- Weight: 5.9 kg (13 lbs)
The airMAX Sector Antenna is a carrier-class 2x2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Key Features
- High Performance, Long Range
- Seamlessly Integrates with Rocket Radio
- Excellent Cross-Polarization Isolation
- Designed with robust mechanical for outdoor application use
- Plug and Play Integration
Specifications
- Frequency Range: 5.15 - 5.85 GHz
- Gain: 18.6 - 19.1 dBi
- HPOL Beamwidth: 123deg (6 dB)
- VPOL Beamwidth: 123deg (6 dB)
- Electrical Beamwidth: 4deg
- Electrical Downtilt: 2deg
- Max.
VSWR: 1.5: 1
- Wind Survivability: 125 mph
- Wind Loading: 20 lbf @ 100 mph
- Polarization: Dual-Linear
- Cross-pol Isolation: 28 dB Min.
- ETSI Specification: EN 302 326 DN2
- Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
- Dimensions: 700 x 135 x 73mm ( 27.56" x 5.32" x 2.87" )
- Weight: 5.9 kg (13 lbs)
