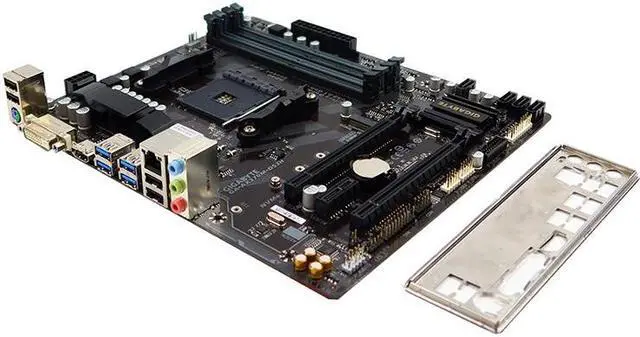

GA-AX370M-DS3H_UA3 Gigabyte GA-AX370M-DS3H AMD Chipset X370 Socket AM4 DDR4 Micro ATX Motherboard AMD Socket AM4 Motherboard

Model: GA-AX370M-DS3H_UA3
Chipset: AMD X370
Socket: AMD AM4
Compatible/Supported CPU: AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10
Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek ALC887 codec
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 1x system fan header; 1x M.2 Socket 3 connector; 4x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 1x RGB LED strip header; 1x USB 3.1 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only); 1x serial port header; 1x Clear CMOS jumper.
Input/Output Ports: 1x PS/2 keyboard/mouse port; 1x DVI-D port; 1x HDMI port; 4x USB 3.1 Gen 1 ports; 4x USB 2.0/1.1 ports; 1x RJ-45 port; 3x audio jacks.
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16); 1x PCI Express x16 slot, running at x4 (PCIEX4); 1x PCI Express x1 slot.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Support for Windows 10 64-bit, Windows 7 64-bit (To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU).
Features: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs; Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support; High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting; RGB FUSION supports RGB LED strips in 7 colors; Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software; Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers; GIGABYTE UEFI BIOS; APP Center Including EasyTune and Cloud Station Utilities.

Please note, this motherboard comes with I/O Shield only! No cables or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
