Desktop Motherboard Compatible Replacement Spare Part for Gigabyte B550 UD AC AMD Chipset Socket AM4 DDR4 USB-C HDMI SATA 6Gb/s ATX

Model: B550 UD AC
Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4733MHz(O.C.)/4600MHz(O.C.)/4400MHz(O.C.)/4266MHz(O.C.)/4133MHz(O.C.)/4000MHz(O.C.)/3866MHz(O.C.)/3733MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C)/3400MHz(O.C.)/3200MHz/2933MHz/2667MHz/2400MHz/2133MHz
Storage Interface: SATA 3 6Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band (P/N: SW10K97457)
Network/Communications: Realtek 1GbE LAN chip (1 Gbit/100 Mbit)
Audio: Realtek ALC1220-VB codec
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 1x water cooling CPU fan header, 4x system fan headers, 2x system fan/water cooling pump headers, 1x CPU cooler LED strip/RGB LED strip header, 2x addressable LED strip headers, 2x RGB LED strip headers, 1x front panel header, 1x front panel audio header 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 2x temperature sensor headers, 1x Thunderbolt add-in card connector, 1x Clear CMOS jumper, 1x Thunderbolt header
Input/Output Ports: 1x HDMI port, 2x SMA antenna connectors (1T1R), 2x USB 3.2 Gen 1 ports, 1x USB Type-C port, with USB 3.2 Gen 2 support, 1x USB 3.2 Gen 2 Type-A ports (red), 4x USB 2.0/1.1 ports, 1x Q-Flash Plus button, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 5x PCI Express x16 slot (PCIEX16), 2x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs, 4x SATA 6Gb/s connectors
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11 64-bit / Windows 10 64-bit

Please note, this motherboard include I/O Shield only! No cables, fan's bracket, fan's backplate or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad

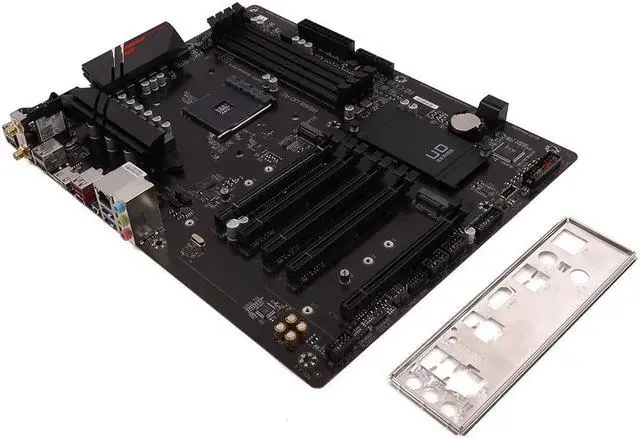

• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
