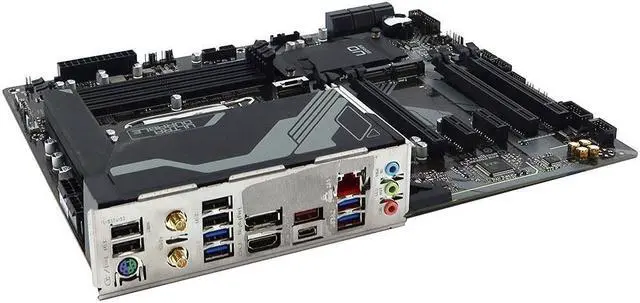

Desktop Motherboard Compatible Replacement Spare Part for Gigabyte Z790 UD AC Intel Chipset Socket LGA1700 DDR5 HDMI DisplayPort USB-C SATA 6Gb/s ATX

Model: Z790 UD AC
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th & 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600MHz(O.C.)/7400MHz(O.C.)/7200MHz(O.C.)/7000MHz(O.C.)/6800MHz(O.C.)/6600MHz(O.C.)/6400MHz(O.C.)/6200MHz(O.C.)/ 6000MHz(O.C.)/ 5800MHz(O.C.)/5600MHz/5400MHz/5200MHz/5000MHz/4800MHz
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: NVMe: 0/1/5/10, SATA: 0/1/5/10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: 802.11ac WLAN
Network/Communications: Realtek Wi-Fi RTL8821CE, Realtek 2.5GbE LAN chip
Audio: Realtek Audio CODEC
Connectors: 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors, 1x CPU fan header, 1x water cooling CPU fan header, 3x system fan headers, 1x system fan/water cooling pump header, 2x addressable LED strip headers, 2x RGB LED strip headers, 3x M.2 Socket 3 connectors, 6x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x serial port header, 2x Thunderbolt add-in card connectors, 1x Trusted Platform Module header, 1x reset button, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper
Input/Output Ports: 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A (red), 4x USB 3.2 Gen 1, 4x USB 2.0/1.1 , 2x SMA antenna connectors (1T1R), 1x HDMI 2.0, 1x DisplayPort, 1x RJ-45, 3x audio jacks
Expansion Slots: 3x M.2 Socket 3 M key, 6x SATA 6Gb/s, 1x PCI Express 5.0 x16, 1x PCI Express 4.0 x16 (x4 mode), 2x PCI Express 3.0 x16 (x1 mode), 2x PCI Express 3.0 x1
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Please note, this motherboard comes with I/O Shield. No any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
