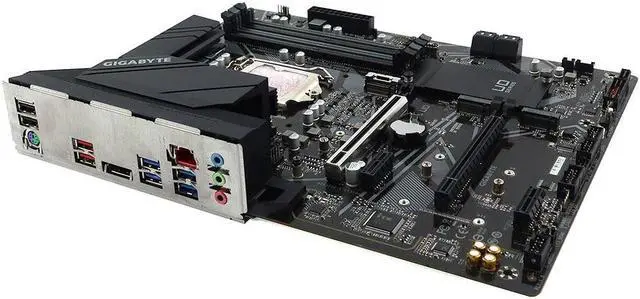

Desktop Motherboard Compatible Replacement Spare Part for Gigabyte Z590 UD Intel Chipset Socket LGA1200 DDR4 USB DisplayPort SATA 6Gb/s ATX

Model: Z590 UD
Chipset: Intel Z590
Socket: Intel LGA1200
Compatible/Supported CPU: 11th 10th Generation Intel Core i9 / Intel Core i7 / Intel Core i5 / Intel Core i3/ Intel Pentium / Intel Celeron processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333(O.C.)/5133(O.C.)/5000(O.C.)/4933(O.C.)/4800(O.C.)/4700(O.C.)/4600(O.C.)/4500(O.C.)/4400(O.C.)/4300(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3666(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200/3000/2933/2800/2666/2400/2133MHz
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: 0, 1, 5, 10
Network/Communications: Realtek 2.5GbE LAN chip
Audio: Realtek audio CODEC
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 1x CPU fan header, 4x system fan headers, 2x addressable LED strip headers, 2x RGB LED strip headers, 1x Q-Flash Plus button, 5x SATA 6Gb/s connectors, 3x M.2 Socket 3 connectors, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x USB 3.2 Gen 1 header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header, 2x Thunderbolt add-in card connectors, 1x serial port header, 1x Clear CMOS jumper
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x DisplayPort, 2x USB 3.2 Gen 2 Type-A ports (red), 4x USB 3.2 Gen 1 ports, 2x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x M.2 (Socket 3, M key PCIe 4.0 x4), 2x M.2 (Socket 3, M key PCIe 3.0 x4/x2), 5x SATA 6Gb/s, 1x PCI Express 4.0 x16, 1x PCI Express x16 (x4 mode), 2x PCI Express x1
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Please note, this motherboard comes with I/O Shield. No any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
