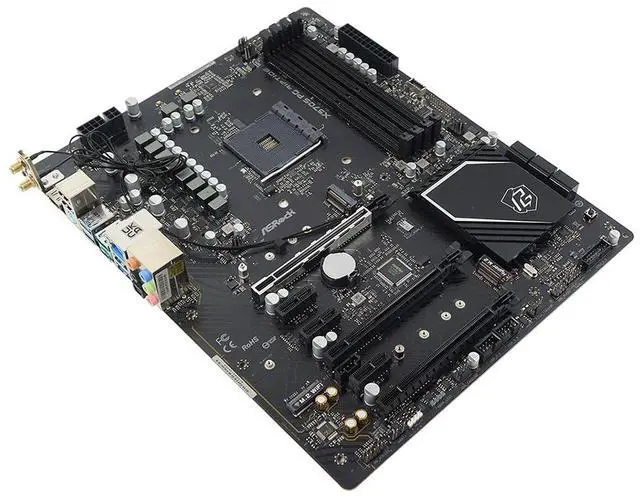

Desktop Motherboard 80-MXBHX0-A1A01 Compatible Replacement Spare Part for ASRock X570S PG Riptide AMD Chipset X570 Socket AM4 DDR4 SATA 6Gb/s HDMI ATX

Model: X570S PG Riptide
Part Number: 80-MXBHX0-A1A01
Chipset: AMD X570
Socket: AMD AM4
Compatible/Supported CPU: AMD AM4 Socket Ryzen 2000 3000 4000 5000 Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Network/Communications: Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 5x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen2 Header, 1x Clear CMOS Button
Input/Output Ports: 1x Antenna Bracket, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x Optical SPDIF Out Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 4x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port with LED, 1x BIOS Flashback Button with LED, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Expansion Slots: 1x PCI Express 4.0 x16, 2x PCI Express 4.0 x16 (x2/x4), 3x PCI Express 4.0 x1, 1x M.2 Socket (Key E) WiFI BT, 2x M.2 PCIe Gen4x4, 6x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard does not include an I/O Shield, cables, fan bracket, fan backplate, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
