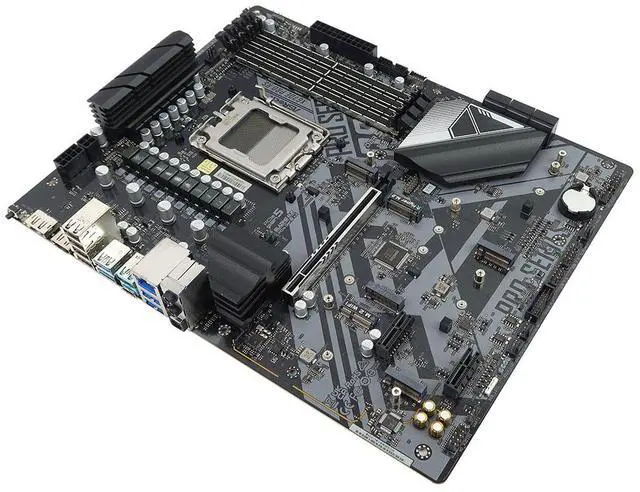

Desktop Motherboard 80-MXBJ70-A1B02 Compatible Replacement Spare Part for ASRock X670E Pro RS AMD Chipset X670 Socket AM5 DDR5 SATA 6Gb/s HDMI DP ATX

Model: X670E Pro RS
Part Number: 80-MXBJ70-A1D01
Compatible Part Numbers: 80-MXBJ70-A1B02 80-MXBJ70-A1C02
Chipset: AMD X670
Socket: AMD AM5
Compatible/Supported CPU: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 10; NVMe: 0, 1, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11axe Wi-Fi 6E
Network/Communications: Dragon RTL8125BG 2.5 Gigabit LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 4x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Input/Output Ports: 2x Antenna, 1x HDMI, 1x Displayport 1.4, 1x Optical SPDIF Out, 1x USB 3.2 Gen2 Type-A (10 Gb/s), 1x USB 3.2 Gen2 Type-C (10 Gb/s), 4x USB 3.2 Gen1, 4x USB 2.0, 1x RJ-45 LAN, 1x BIOS Flashback Button, 1x Line Out Jack (Gold Audio Jack), 1x Microphone Input Jack (Gold Audio Jack)
Expansion Slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x1, 1x M.2 Key-E Wi-Fi/Bluetooth slot, 1x M.2 PCIe Gen5x4, 3x M.2 PCIe Gen4x4, 1x M.2 PCIe Gen3x2 / SATA, 6x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Features: Windows 10 64-bit; Windows 11 64-bit

Please note, this motherboard comes with fan backplate, does not include I/O Shield, fan bracket, WIFI Card, VRM heatsink, 2 M.2 heatsinks, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
