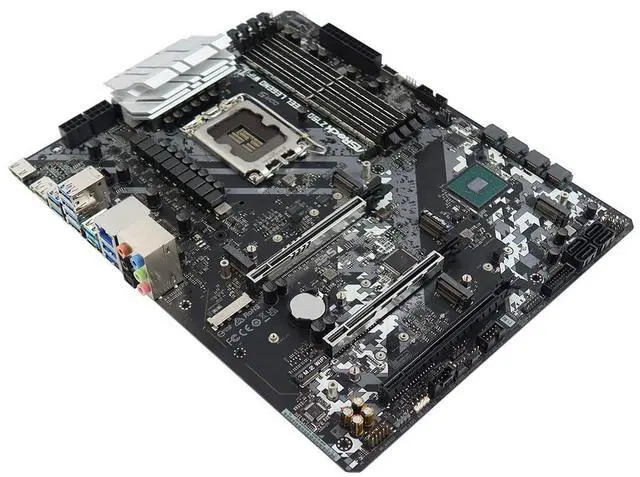

Desktop Motherboard 80-MXBKD0-A1A02 Compatible Replacement Spare Part for ASRock Z790 Steel Legend WiFi Intel Chipset Socket LGA1700 DDR5 SATA 6Gb/s HDMI ATX

Model: Z790 STEEL LEGEND WIFI
Part Number: 80-MXBKD0-A1A02
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th 13th 12th Gen Intel Core Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Bluetooth Standard: Bluetooth
Wireless Lan Support: 802.11ax Wi-Fi 6E
Network/Communications: Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Audio: 7.1 CH HD Audio Realtek ALC897 Audio Codec
Connectors: 1x eDP Signal Connector; 1x SPI TPM Header; 1x Power LED and Speaker Header; 1x RGB LED Header; 3x Addressable LED Headers; 1x CPU Fan Connector (4-pin); 1x CPU/Water Pump Fan Connector (4-pin); 5x Chassis/Water Pump Fan Connectors (4-pin); 1x 24 pin ATX Power Connector; 2x 8 pin 12V Power Connectors; 1x Front Panel Audio Connector (15 Gold Audio Connector); 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card); 2x USB 2.0 Headers (Support 3 USB 2.0 ports); 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Input/Output Ports: 2x Antenna Ports; 1x HDMI Port; 1x DisplayPort 1.4; 1x Optical SPDIF Out Port; 1x USB 3.2 Gen2 Type-A Port (10 Gb/s); 1x USB 3.2 Gen2 Type-C Port (10 Gb/s); 8x USB 3.2 Gen1 Ports; 1x RJ-45 LAN Port; 5x HD Audio Jacks
Interface: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x M.2 Key-E for WiFi, 1x M.2 Socket (M2_1, Key M), 2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_2, Key M), 2260/2280 PCIe Gen5x4 (128 Gb/s), 1x M.2 Socket (M2_3, Key M), 2242/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_4, Key M), 2242/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_5, Key M), 2260/2280 PCIe Gen4x4 (64 Gb/s), 8x SATA3 6.0 Gb/s Connectors
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard does not include an I/O Shield, cables, fan bracket, fan backplate, VRM heatsink, chipset heatsink, 2 M.2 heatsinks or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
