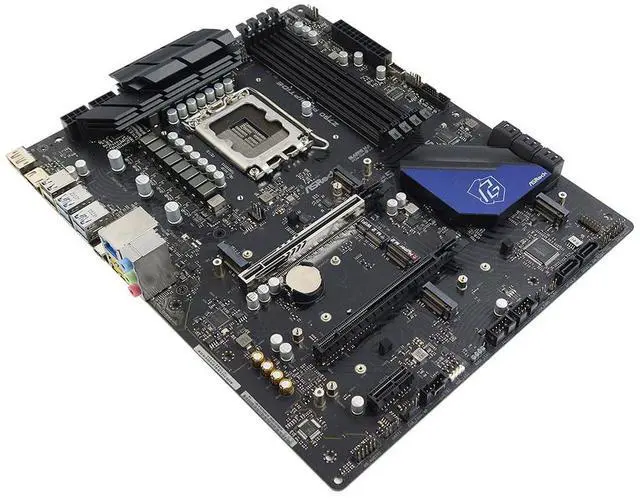

Desktop Motherboard 80-MXBJX0-A1B01 Compatible Replacement Spare Part for ASRock Z790 PG Riptide Intel Chipset Socket LGA1700 DDR5 SATA 6Gb/s HDMI DP ATX

Model: Z790 PG Riptide
Part Number: 80-MXBJX0-A1B01
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th 13th 12th Gen Intel Core Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Network/Communications: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 1x Chassis Fan Connector (4-pin), 4x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 2x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Input/Output Ports: 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 2x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 1x USB 3.2 Gen1 Type-C Port, 4x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Interface: 1x PCIe 5.0 x16 (PCIE1) x16 mode, 1x PCIe 4.0 x16 (PCIE2) x4 mode, 1x PCIe 3.0 x1 (PCIE3), 1x M.2 Socket (Key E), type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2, 1x M.2 2280 PCIe Gen5x4, 4x M.2 2280 PCIe Gen4x4, 8x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard does not include I/O Shield, fan bracket, fan backplate, VRM heatsink, 2 M.2 heatsinks, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
