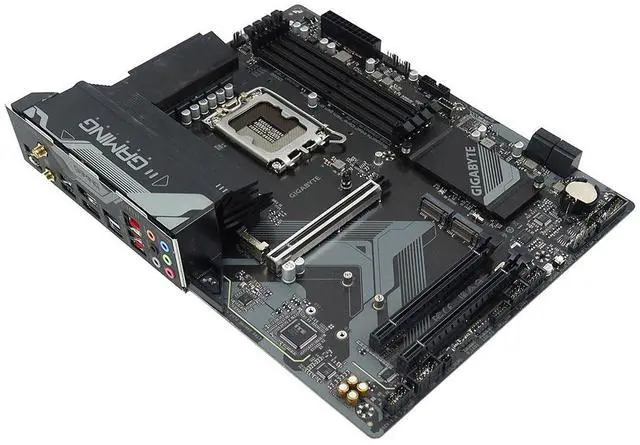

DESKTOP MOTHERBOARD COMPATIBLE REPLACEMENT SPARE PART FOR GIGABYTE Z790 GAMING PLUS AX INTEL SOCKET LGA1700 DDR5 ATX

Model: Z790 GAMING PLUS AX
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th 13th 12th Gen Intel Core Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: NVMe: 0/1/5/10, SATA: 0/1/5/10
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: Realtek Wi-Fi 6 RTL8851BE
Network/Communications: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio: Realtek CODEC High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 1x CPU fan/water cooling pump header, 3x system fan headers, 1x system fan/water cooling pump header, 2x addressable LED strip headers, 2x RGB LED strip headers, 3x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x USB Type-C header, with USB 3.2 Gen 2 support, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header, 1x serial port header, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper
Input/Output Ports: 1x USB 3.2 Gen 2 Type-A port, 1x USB Type-C port, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 port, 5x USB 2.0/1.1 ports, 2x SMA antenna connectors (1T1R), 1x DisplayPort, 1x HDMI port, 1x RJ-45 port, 6x audio jacks
Expansion Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (x1 mode), 3x M.2 PCIe Gen4x4/x2, 4x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard comes with I/O Shield, does not include fan backplate, fan bracket, cables or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
