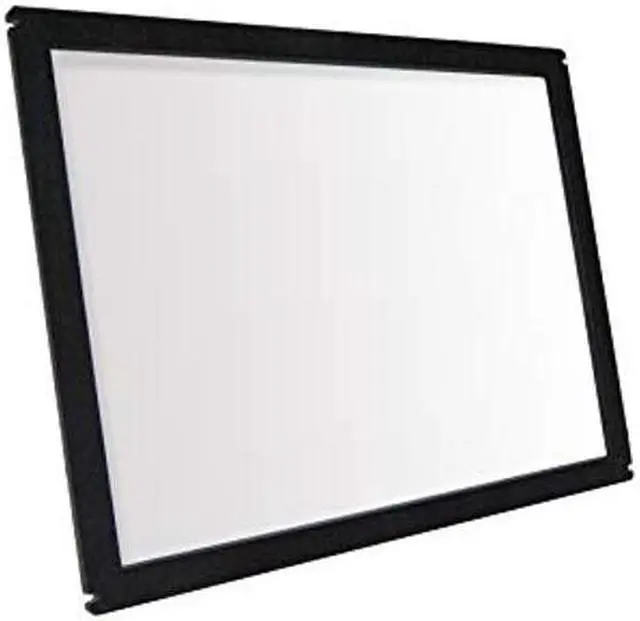

23.6 Inch Multi Points IR Touch Screen, Infrared Touch Screen Panel, USB Free Driver with Tempered Glass for Kiosks, Touch Screen Monitor, Interactive Device Machine

BUSINESS FOCUS Goodtouch Electronics (Guangzhou) Co., LTD is the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor, touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.
DETAIL SPEC *Product name: 23.6 inch IR infrared touch screen overlay panel *Detection
Method: Infrared rays *Detail size data
Display area: L1= 522.3 mm, W1= 294.3 mm
Fixing hole: L2= 552.2 mm, W2= 313.3 mm
Outside area: L3= 558.3 mm, W3=
330.3 mm *Ratio: 16:9 *Touch
Points: 2 points *Object
Touch Size: >= O3mm *Touch
Activation Force: Non Minimum activation force *Touch
Durability: Over 60 millions for single touch *Touch
Resolution: 32768*32768 *Position
Accuracy: 2mm *Fault
Tolerance: Workable even 75% sensors are damaged *Frames per
Second: Up to 450 fps *Touch
Response Time: 8ms *Draw
Response Time: 8ms
*Altitude: 3, 000m *Light
Transmission: 100% without
glass *Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi) (Does not support Smart TV Android system, Raspberry Pi) *Second-development
Support: free SDK, support C/C++, C#, Java etc.
ElECTRICAL *Operating Voltage: DC 4.5V ~ DC 5.5V *Power
Supply: Single USB
Connection *Power Consumption: 1.0W (200mA at DC 5V) ENVIRONMENT *Operating
Temperature: -20degC~70degC *Storage
Temperature: -30degC~80degC *Operating
Humidity: 10%~90%RH(Non-condensing) *Storage
Humidity: 0~95%RH
*Certification: FCC, CE,
ROHS *Warranty: 3 year
