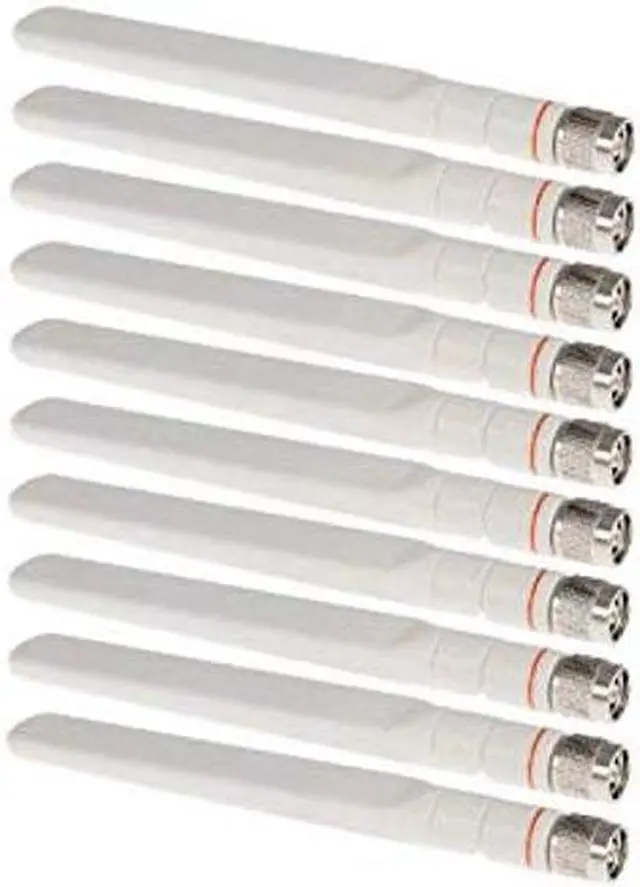

RW RoutersWholesale 2.4GHz / 5GHz Dual-Band (RP-TNC) Antenna Compatible/Replacement for Cisco AIRONET AIR-ANT2524DW-R= (White) 10PACK

The antenna operates in both the 2.4 -GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4 -GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports.
The antenna has a nominal gain of 2 dBi in the 2.4 -GHz frequency band and 4 dBi in the 5-GHz frequency band.
Operating frequency range 2400 to 2500 MHz 5150 to 5850 MHz
Nominal input impedance 50 Ohms
VSWR Less than 2:1
Peak Gain @ 2.4. GHz 2 dBi
Peak Gain @ 5 GHz 4 dBi
Elevation plane 3dB beamwidth @ 2.4 GHz 63 degrees
Elevation plane 3dB beamwidth @ 5 GHz 39 degrees
Connector type RP-TNC plug
Antenna length 6.63 in. ( 168.5 mm)
Antenna width 0.83 in (21 mm)
Radome length 4.88 in. (124 mm)
Weight 1.3 oz

Operating temperature -20degC to 60degC (-4deg to 140degF)
Storage temperature -40degC to 85degC (-40degF to 185degF)
Environment Indoor, office

System Requirements: This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text.
Installation Instructions:
Brand: RW RoutersWholesale
Lifetime Replacement Warranty!
