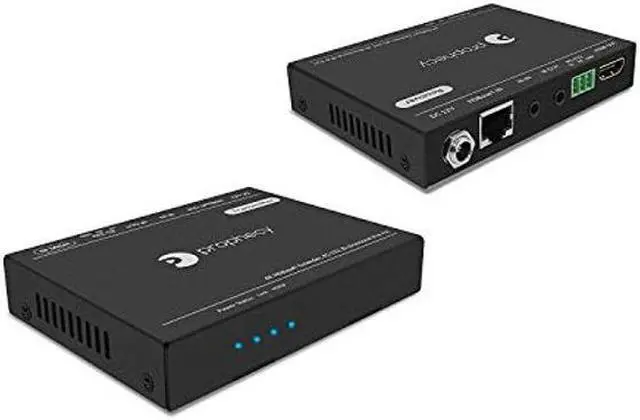

gofanco Prophecy HDBaseT 4K HDMI Extender Over CAT5e/6/7 - 328ft(100m) @1080p, 230ft(70m) @UHD 4K/60Hz (4:2:0 8-bit) 4K/30Hz, Dual IR, RS-232, CEC, PoC, HDMI 1.4, HDCP 2.2/14 (PRO-HDbaseT-RS100)

gofanco Prophecy HDBaseT HDMI 2.0 Extender incorporates HDBaseT technology to extend HDMI audio/video signals over one cost effective CAT5e/6 cable, while maintaining signal strength and lossless video. Bi-directional IR extension allows IR signals to travel both ways, either from the Transmitter (source) to Receiver (sink) or Receiver to Transmitter. Notes:
- A good quality CAT5e/6/7 cable is essential in delivering quality content. CAT6/6a/7 is recommended over CAT5e
- Use a straight-through Ethernet cable and NOT crossover
- This kit is point to point and comes with a Transmitter and Receiver. It's not meant to work through routers or network switches Specifications
- Video resolutions: Up to 4K @30Hz
- Transmission range:
> Up to 328ft (100m) @1080p
> Up to 230ft (70m) @4K/30Hz
- Pure unaltered uncompressed 7.1ch digital HDMI over CATx cable transmission
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports full IR signal frequency from 20KHz to 60KHz
- Bi-directional IR pass-through
- Full Duplex RS-232 control up to 115,200 bps
- HDCP & EDID Bypass
- CEC support
- Auto equalization
- Housing: Metal, Surface mountable
- Country of origin: Taiwan
- Regulatory approvals: FCC, CE, RoHS Compatible Devices
- HDMI source device, such as computer PCs, Blu-ray players, and media players
- HDMI displays, monitors, and HDTVs What's in the Package
- Prophecy HDBaseT 4K HDMI Extender (Transmitter & Receiver units)
- IR TX Blaster cable
- IR RX Receiver cable
- Power adapter (1)
- Surface mount accessories
- 3-pin Terminal blocks (2)
- User's guide Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
