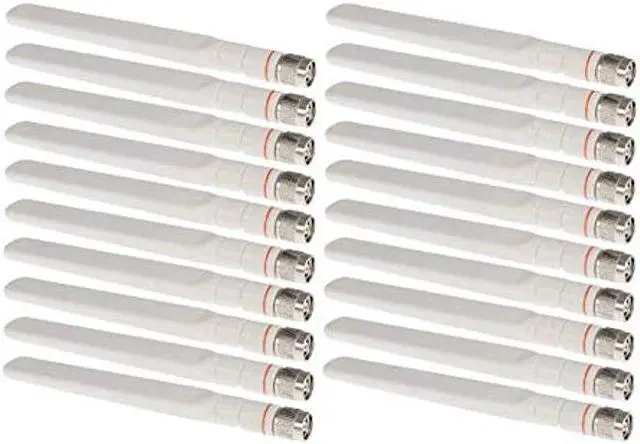

RW RoutersWholesale 2.4GHz / 5GHz Dual-Band (RP-TNC) Antenna Compatible/Replacement for Cisco AIRONET AIR-ANT2524DW-R= (White) 20PACK

The antenna operates in both the 2.4 -GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4 -GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports.

The antenna has a nominal gain of 2 dBi in the 2.4 -GHz frequency band and 4 dBi in the 5-GHz frequency band.

Operating frequency range 2400 to 2500 MHz 5150 to 5850 MHz

Nominal input impedance 50 Ohms

VSWR Less than 2:1

Peak Gain @ 2.4. GHz 2 dBi

Peak Gain @ 5 GHz 4 dBi

Elevation plane 3dB beamwidth @ 2.4 GHz 63 degrees

Elevation plane 3dB beamwidth @ 5 GHz 39 degrees

Connector type RP-TNC plug

Antenna length 6.63 in. ( 168.5 mm)

Antenna width 0.83 in (21 mm)

Radome length 4.88 in. (124 mm)

Weight 1.3 oz

Operating temperature -20degC to 60degC (-4deg to 140degF)

Storage temperature -40degC to 85degC (-40degF to 185degF)

Environment Indoor, office

System Requirements: This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text.

Installation Instructions:

Brand: RW RoutersWholesale

Lifetime Replacement Warranty!
