Teltonika BAT120000100 Model BAT120 Uninterrupted Power Supply; 24W US PSU 4-pin Connector; Overvoltage and Reverse Polarity Protection; Aluminum Housing; 2300 mAh Battery Capacity; for up to 6 Hours

Teltonika BAT120000100 Uninterrupted Power Supply, 24W US PSU with 4-pin Connector, Overvoltage and Reverse Polarity Protection, Aluminum Housing, 2300 mAh Battery Capacity, On/Off Slider Switch

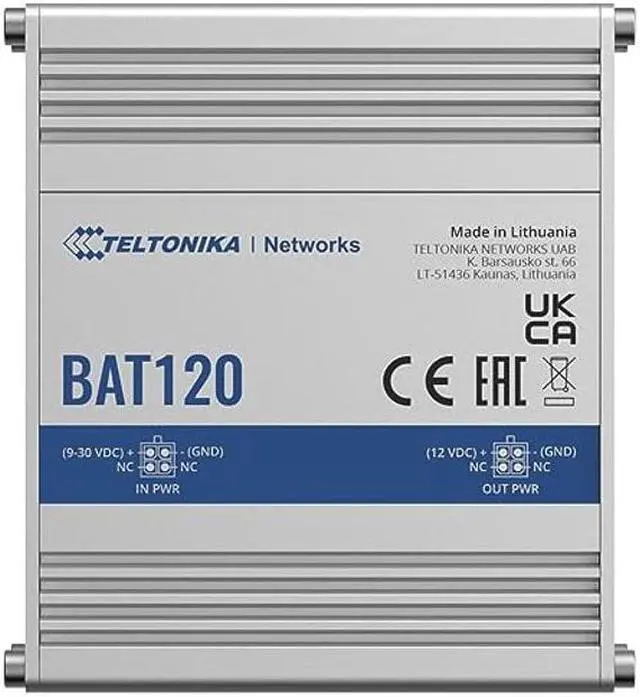

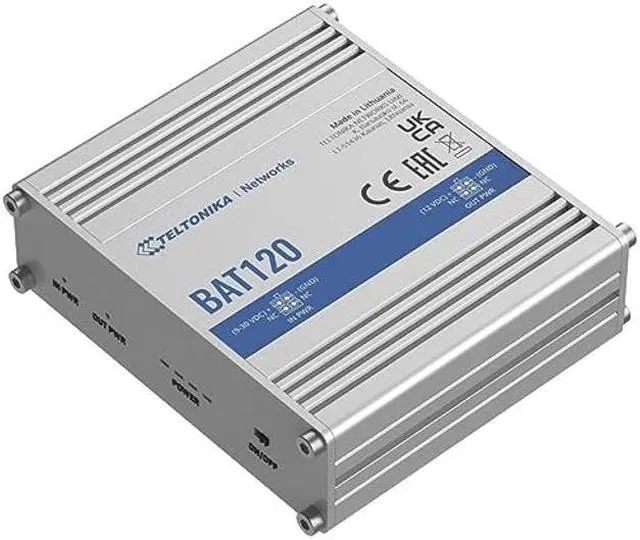

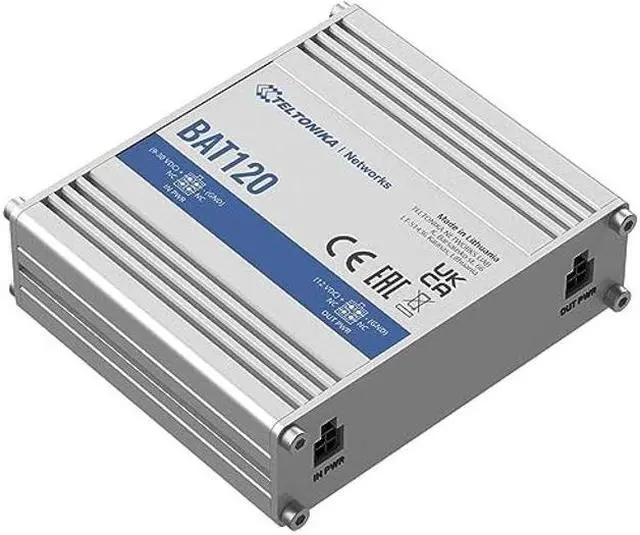

BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features

Key Features:
- 4-pin industrial DC power socket
- Reverse polarity protection, Overvoltage protection
- 2300 mAh/17 Wh battery capacity
- Compatible with RUT2xx, RUT95x, RUT3xx, RUT
Xxx, TRB14x, TRB2xx, TSW110, TCR100 devices
- Package contains: BAT120, 24W US PSU with 4-pin connector, and QSG (Quick Start Guide)

Specifications

:
- Connector: 4-pin industrial DC power socket
- Input power/max charging current:
Charger: max 4 W/300 mA (max battery charging current)
- Input voltage range: 9 - 30 VDC
- Input protection: Reverse polarity protection, Overvoltage protection
- Output voltage in passthrough mode: 9 - 30 VDC -
Output voltage in battery mode: 12VDC
- Output voltage in battery mode: 3A overcurrent protection
- Max output power/current in battery mode: 22 W/ 1.8 A
- Lithium cells: 2 x 18650 Li-Ion cells
- Battery capacity: 2300 mAh 17 Wh

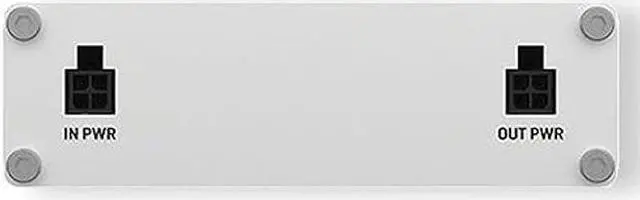

- Power IN: 1 x 4 pin DC connector
- Power OUT: 1 x 4 pin DC connector

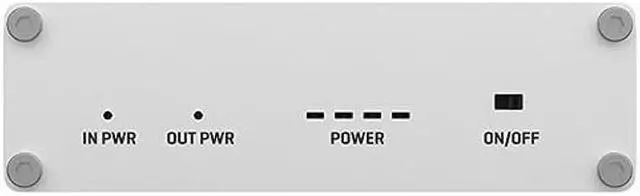

- Status LEDs: 1 x IN PWR LED, 1 x OUT PWR LED, 4 x Power status LEDs
- Switch: On/Off slider switch
- Dimensions (W x H x D): 3.93 x 1.18 x 3.34 Inches
- Weight: 0.69 Pounds
