Xgecu TL866II Plus Upgraded Xgecu T48 Programmer 24 Adapter t48 eprom Programmer TL866-3G IC Bios AVR MCU SPI Nor NAND Flash EMMC Clip Socket
- T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer,With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable),.Based on 32-bit MCU with 120MHZ and 4-layer PCB design.
- Support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, such as 27Cxxx series, VPP Maximum up to 25V, that is what TL866II cannot achieve.n do small batch production for high capacity chips.
- Support operating systems: Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11
- Self test function, self test each pin of VPP/VCC/GND/IO,suitable for developers and maintenance personnel
- Before buying, please contact us for checking the chip models you want to program whether this programmer support or not. The new software will be improved future,.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Xgecu T48 programmer is the TL866ii plus programmer replacement, it's

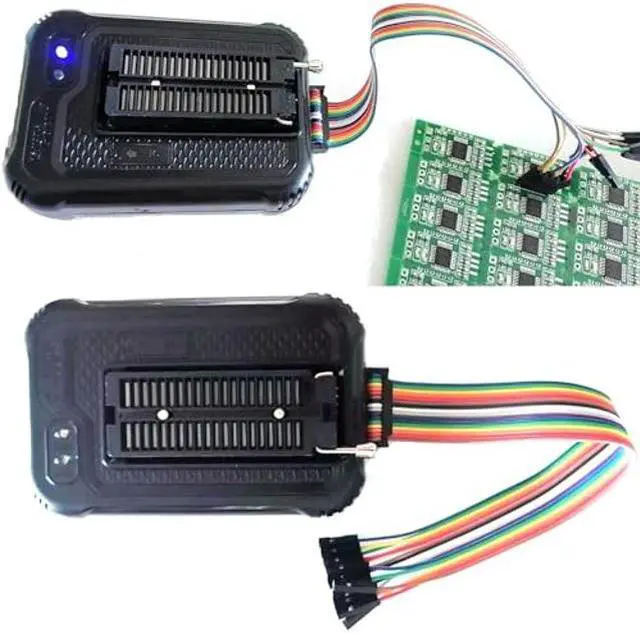

hardware parameters: (almost the same as TL86II) 16 channel ISP total 56-channel. dedicated IO 56-channel high-speed high-voltage insulation, VCC voltage 1.8 - 6.5 V, 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
Power consumption: 5V <500MA.
Static power consumption: 60 mA. Without external power supply interface. Self-test each pin of VPP/VCC/GND/IO Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 programmers on each computer. Suppport high-voltage chips, VPP maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code runs much faster.

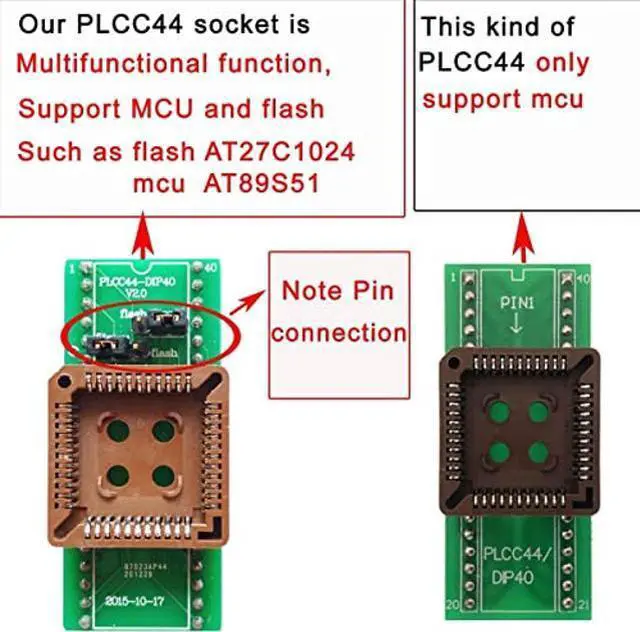

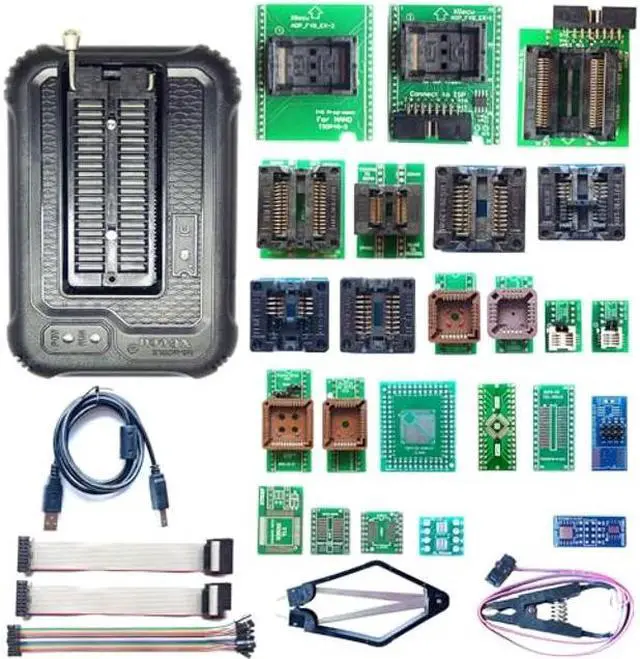

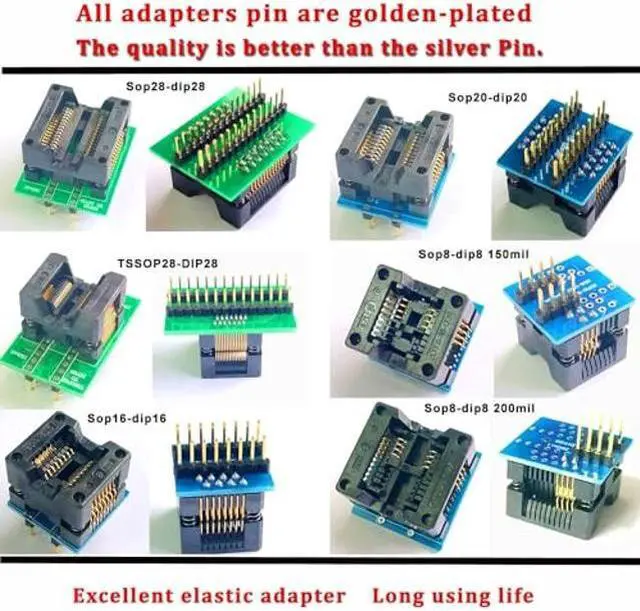

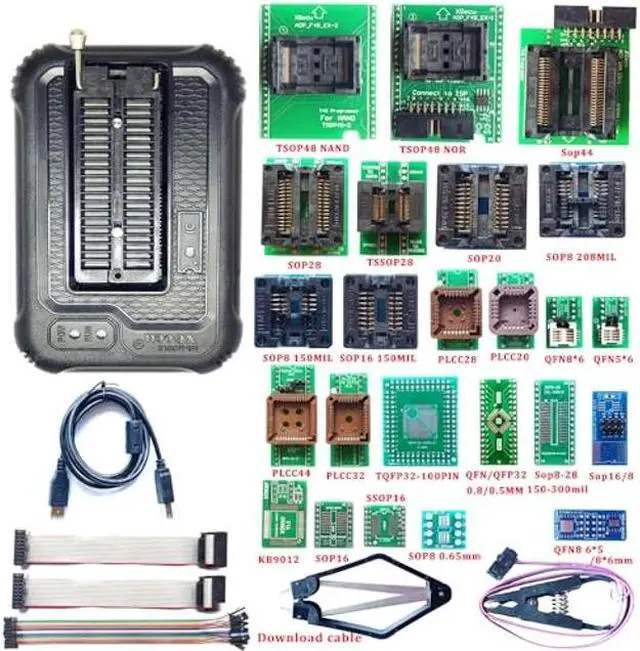

Package includes: 1xXgecu T48 MiniPRO programmer, 1xUSB cable, 1xSOP8 clip, 1xSOP28-DIP28 300mil adapter, 1xTSSOP28-DIP28 adapter, 1xSOP8-DIP8 150mil adapter, 1xSOP8-DIP8 208mil adapter, 1xSOP20-DIP20 adapter, 1xSOP16-DIP16 150mil adapter, 1xPLCC44-DIP44 adapter, 1xPLCC32-DIP32 adapter, 1xPLCC28-DIP24 adapter, 1xPLCC20-DIP20 adapter, 1xSOP8/msop8/tssop8/ssop8/SOP16-DIP16 simple adapter, 1xqfp32-100 pcb board adapter, 1xwson8 6*5/8*6 pcb board adapter, 1xQFN32 0.8 mm pcb board adapter, 1xsop8 0.65 mm PCB board adapter, 1x KB9012 PCB board adapter, 1x Sop8-28 150-300 milPCB board adapter, 1x sop44 socket, 1x tsop48 nand socket, 1x tsop48 nor socket, 1xssop16 board, QFN8 8*6 socket, QFN5*6 socket, 1x 2 pin headers, 1x PLCC IC extractor, download cable
hardware parameters: (almost the same as TL86II) 16 channel ISP total 56-channel. dedicated IO 56-channel high-speed high-voltage insulation, VCC voltage 1.8 - 6.5 V, 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
Power consumption: 5V <500MA.
Static power consumption: 60 mA. Without external power supply interface. Self-test each pin of VPP/VCC/GND/IO Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 programmers on each computer. Suppport high-voltage chips, VPP maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code runs much faster.
Package includes: 1xXgecu T48 MiniPRO programmer, 1xUSB cable, 1xSOP8 clip, 1xSOP28-DIP28 300mil adapter, 1xTSSOP28-DIP28 adapter, 1xSOP8-DIP8 150mil adapter, 1xSOP8-DIP8 208mil adapter, 1xSOP20-DIP20 adapter, 1xSOP16-DIP16 150mil adapter, 1xPLCC44-DIP44 adapter, 1xPLCC32-DIP32 adapter, 1xPLCC28-DIP24 adapter, 1xPLCC20-DIP20 adapter, 1xSOP8/msop8/tssop8/ssop8/SOP16-DIP16 simple adapter, 1xqfp32-100 pcb board adapter, 1xwson8 6*5/8*6 pcb board adapter, 1xQFN32 0.8 mm pcb board adapter, 1xsop8 0.65 mm PCB board adapter, 1x KB9012 PCB board adapter, 1x Sop8-28 150-300 milPCB board adapter, 1x sop44 socket, 1x tsop48 nand socket, 1x tsop48 nor socket, 1xssop16 board, QFN8 8*6 socket, QFN5*6 socket, 1x 2 pin headers, 1x PLCC IC extractor, download cable
