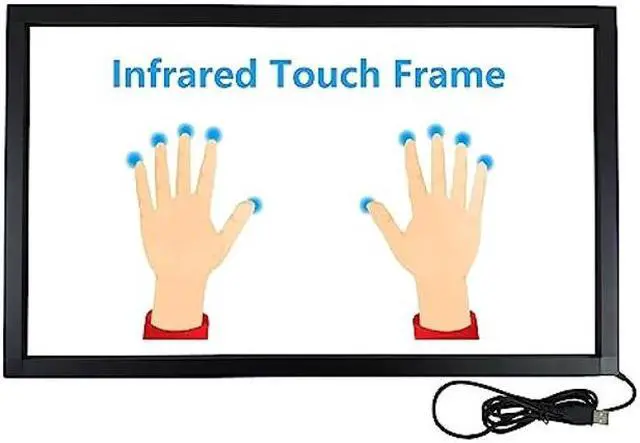

Deyowo 32 Inch Interactive 10 Points Infrared IR Touch Screen Overlay Frame Free Driver

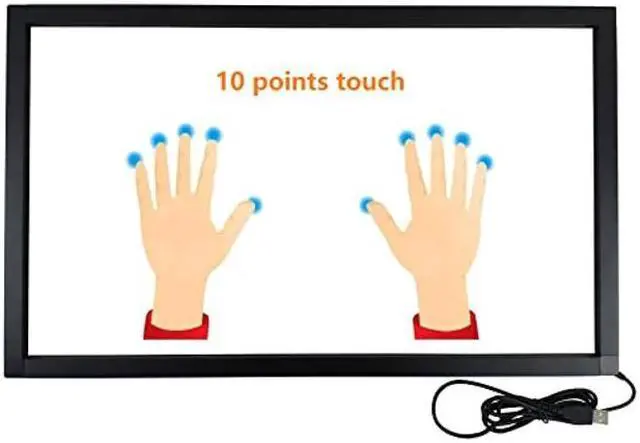

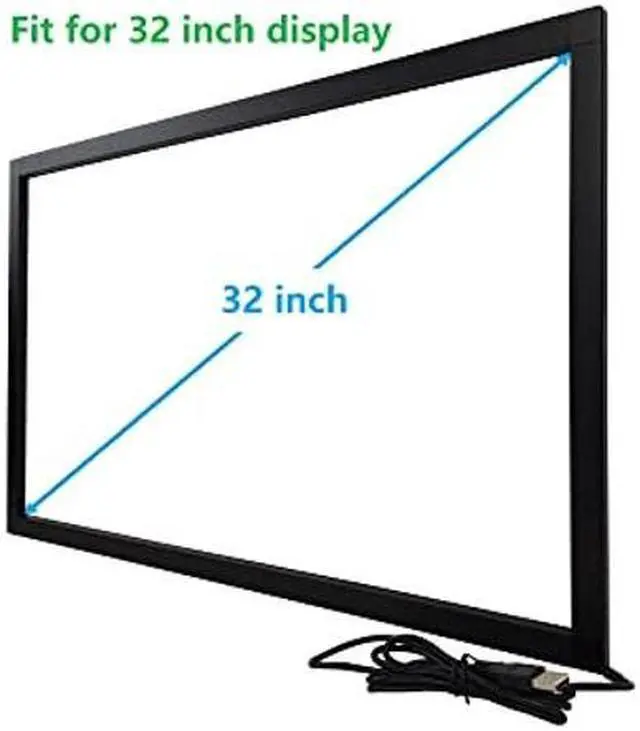

- 10 POINTS TOUCH: This item is 32 inch 10 points interactive infrared touch screen frame, not including glass, Design for for 32 inch LCD display. We have full size of infrared touch frame for sale, which size be from 24 inch to 98 inch, pleasae you visti the DEYOWO store to know more.
- EASY INSTALLATION: Ultra narrow edge design and only 19 mm width for better matching your display; Our IR touch frames is Plug in design, the installation job is very simple and easy. You can read Installation Guide Manual or watch installation video online, you will do it well. If the touch positioning is not accurate after installation, we can provide the calibration software. After installation, if it can't work or function is abnormal, please contact us, we will provide technology support.
- FREE DRIVER: You don't need to install drivers for this Item on Windows,Android and Linux, meanwhile it support Mac iOS with HID driver. If you use this item on Mac iOS, please contact us and get the
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
BUSINESS FOCUS
We are the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor, touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.
DETAIL SPEC
*Product name: 32 inch interactive IR infrared touch scree frame overlay panel
*Detection Method: Infrared rays
*Detail size data
Display area: L1= 701.1 mm, W1= 396.3 mm
Outside area: L2= 747.1 mm, W2= 442.3 mm
*Ratio: 16:9
*Touch Points: 10 points
*Object Touch Size: >= O5mm
*Touch Activation Force: Non Minimum activation force
*Touch Durability: Over 60 millions for single touch
*Touch Resolution: 32768*32768
*Position Accuracy: 2mm
*Fault Tolerance: Workable even 75% sensors are damaged
*Frames per Second: Up to 450 fps
*Touch Response Time: 8ms
*Draw Response Time: 8ms
*Altitude: 3, 000m
*Light Transmission: 100% without glass
*Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android
Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi)
(Does not support Smart TV Android system, Raspberry Pi)
*Second-development Support: free SDK, support C/C++, C#, Java etc.
ElECTRICAL
*Operating Voltage: DC 4.5V ~ DC 5.5V
*Power Supply: Single USB Connection
*Power Consumption: 1.0W (200mA at DC 5V)
ENVIRONMENT
*Operating Temperature: -20degC~70degC
*Storage Temperature: -30degC~80degC
*Operating Humidity: 10%~90%RH(Non-condensing)
*Storage Humidity: 0~95%RH
*Certification: FCC, CE, ROHS
*Warranty: 3 year
We are the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor, touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.
DETAIL SPEC
*Product name: 32 inch interactive IR infrared touch scree frame overlay panel
*Detection Method: Infrared rays
*Detail size data
Display area: L1= 701.1 mm, W1= 396.3 mm
Outside area: L2= 747.1 mm, W2= 442.3 mm
*Ratio: 16:9
*Touch Points: 10 points
*Object Touch Size: >= O5mm
*Touch Activation Force: Non Minimum activation force
*Touch Durability: Over 60 millions for single touch
*Touch Resolution: 32768*32768
*Position Accuracy: 2mm
*Fault Tolerance: Workable even 75% sensors are damaged
*Frames per Second: Up to 450 fps
*Touch Response Time: 8ms
*Draw Response Time: 8ms
*Altitude: 3, 000m
*Light Transmission: 100% without glass
*Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android
Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi)
(Does not support Smart TV Android system, Raspberry Pi)
*Second-development Support: free SDK, support C/C++, C#, Java etc.
ElECTRICAL
*Operating Voltage: DC 4.5V ~ DC 5.5V
*Power Supply: Single USB Connection
*Power Consumption: 1.0W (200mA at DC 5V)
ENVIRONMENT
*Operating Temperature: -20degC~70degC
*Storage Temperature: -30degC~80degC
*Operating Humidity: 10%~90%RH(Non-condensing)
*Storage Humidity: 0~95%RH
*Certification: FCC, CE, ROHS
*Warranty: 3 year
