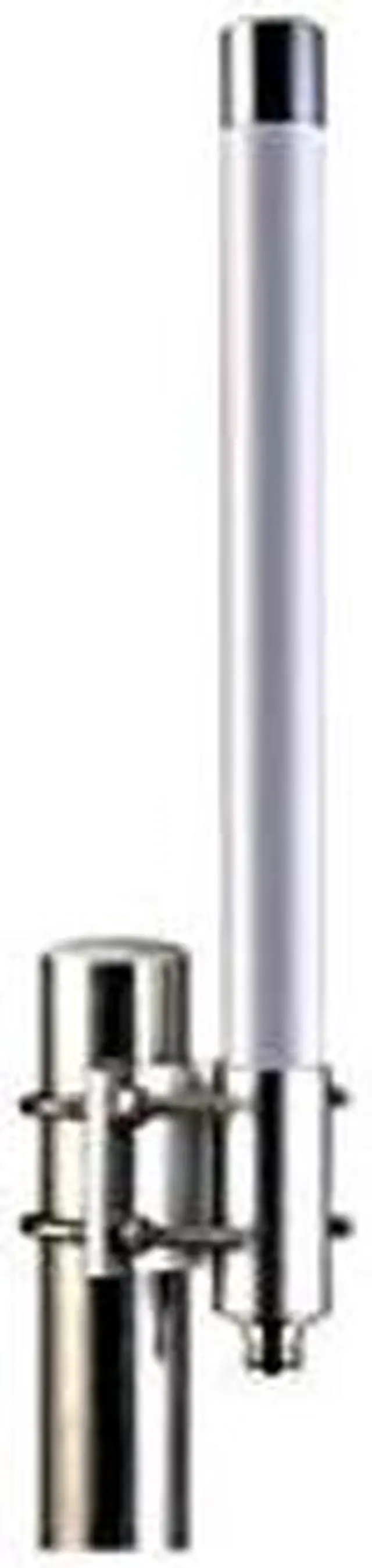

Cradlepoint 170668-000 Multi-Band Omni-Directional Antenna
- Cradlepoint's 170668-000 multi band omni directional antenna collects the 3G/4G/LTE (698-2700 MHz) cell tower signal and sends it through the cable to the integrated or embedded Cradlepoint modem or router.
- When the modem transmits, the signal is transferred directly to the antenna and broadcast back to the cell tower.
- Comaptible with Cradlepoint : IBR600, IBR900, IBR1100, AER1600, AER2100, AER3100, MBR1400, CBA850, IBR650, etc.
- DOES NOT INCLUDE CABLE.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Cralepoint's multi band omni directional antenna collects the cell tower signal and sends it through the cable to the integrated or embedded Cradlepoint modem and router. When the modem transmits, the signal is transferred directly to the antenna and is broadcasted back to the cell tower. For AER1600, AER1650, AER2100, AER3100, AER3150.
Features: Part
Number: 170668-000
Frequency Range: 698-960 MHz / 1710-2170 MHz / 2496-2690 MHz
Nominal Impedance: 50 ohms
Antenna Gain: 3.5 dBi 698-960 MHz / 4.5 dBi 1710-2170 MHz / 3.1 dBi 2496-2690
Radiation: Omni
Polarization: Vertical (Linear)
Ground Plane: Built-in
Connector: N
Type Female Internal Material: Copper
Height: 12.6 inches / 32 cm
Weight: 150 g
ROHS Compliant Package Contains: Multi-Band Omni-Directional Antenna Wall Mount Bracket U-bolt assembly Cable IS NOT included - purchase separately.
Features: Part
Number: 170668-000
Frequency Range: 698-960 MHz / 1710-2170 MHz / 2496-2690 MHz
Nominal Impedance: 50 ohms
Antenna Gain: 3.5 dBi 698-960 MHz / 4.5 dBi 1710-2170 MHz / 3.1 dBi 2496-2690
Radiation: Omni
Polarization: Vertical (Linear)
Ground Plane: Built-in
Connector: N
Type Female Internal Material: Copper
Height: 12.6 inches / 32 cm
Weight: 150 g
ROHS Compliant Package Contains: Multi-Band Omni-Directional Antenna Wall Mount Bracket U-bolt assembly Cable IS NOT included - purchase separately.
