40G QSFP+ LX4 for Cisco QSFP-40G-UNIV 40GBASE-UNIV QSFP+ 4 CWDM 1310nm 2km/150m SMF/MMF LC DDM Optical Transceiver Module
- [(QSFP+ 40G)] Cisco QSFP-40G-UNIV 40Gigabit Ethernet, coding as Cisco QSFP-40G-UNIV also compatible
- [(40GBASE-UNIV)] 40G QSFP+ transceiver module, 40Gbps, single mode and multimode 4 CWDM 1310nm 2km/150m SMF/MMF , LC duplex connector, Hot Pluggable, support DOM

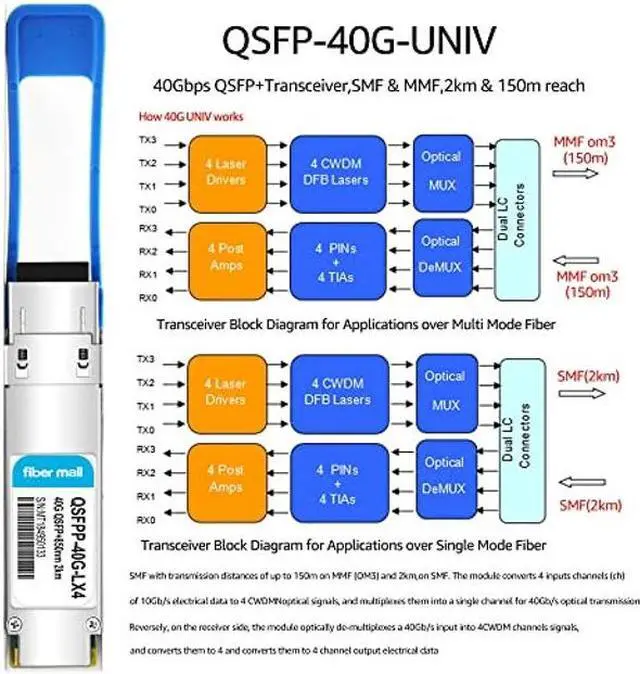

- [(How 40G UNIV works)] SMF with transmission distances of up to 150m on MMF (OM3) and 2km,on SMF. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMNoptical signals, and multiplexes them into a single channel for 40Gb/s optical transmission.Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals, and converts them to 4 channel output electrical data
- [(Protocols)] Compliant with QDR/DDR Infiniband data ratesUp to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF), IEEE 802.3ba, MSA Compliant
- [(3 Warranty)] 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

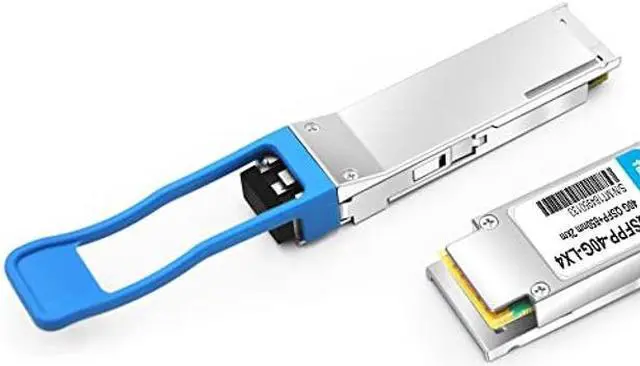

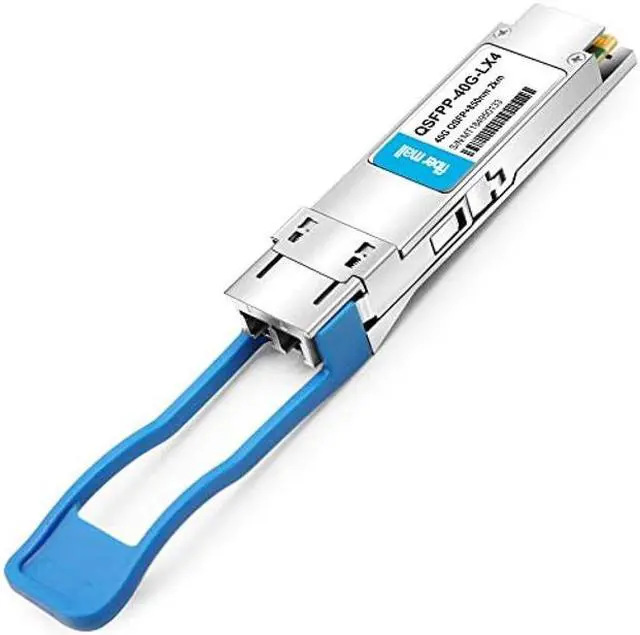

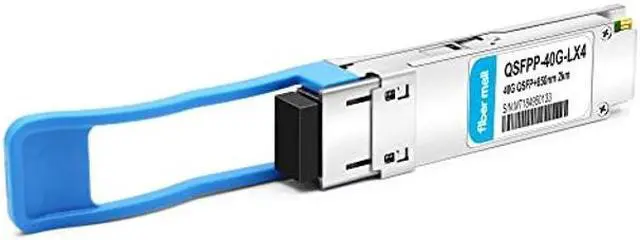

Fiber Mall for Cisco QSFP-40GUNIV Compatible QSFP+ Optical Transceiver Module is applied to 40GBASE Ethernet transmission with links up to 150m/2km over OM3/SMF repsectively, which is compliant with the QSFP+ MSA and IEEE 802.3 ba 40GBASE-LM4 standards.
Product Features
v Cisco Genuine: QSFP-40G-UNIV
v Form Type: QSFP
v 4 CWDM lanes MUX/DEMUX design
v Up to 11.2G b/s data rate per wavelength
v QSFP+ MSA compliant
v IEEE 802.3 ba Electrical Interface
v Digital diagnostic capabilities
v Compliant with QDR/DDR Infiniband data ratesUp to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF)
v Operating case temperature: 0 to 70oC
v Maximum power consumption 3.5W
v LC duplex connector
Applications
Cisco QSFP-40G-UNIV Compatible 40GBASE-UNIV QSFP+ Optical Transceiver Module for Ethernet and Data Center
v 40GBASE-LX4 Ethernet Links
v Infiniband QDR and DDR interconnects
v Client-side 40G datacom connections
Package

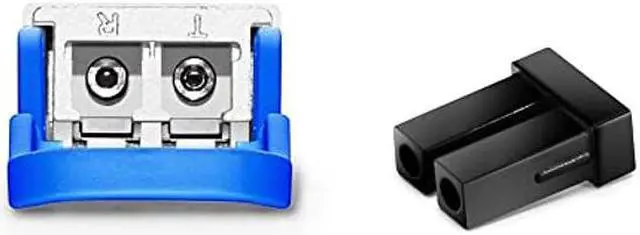

1*sfp dust cover
1 *pair 40Gbps fiber transceiver module
1* package box
Product Features
v Cisco Genuine: QSFP-40G-UNIV
v Form Type: QSFP
v 4 CWDM lanes MUX/DEMUX design
v Up to 11.2G b/s data rate per wavelength
v QSFP+ MSA compliant
v IEEE 802.3 ba Electrical Interface
v Digital diagnostic capabilities
v Compliant with QDR/DDR Infiniband data ratesUp to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF)
v Operating case temperature: 0 to 70oC
v Maximum power consumption 3.5W
v LC duplex connector
Applications
Cisco QSFP-40G-UNIV Compatible 40GBASE-UNIV QSFP+ Optical Transceiver Module for Ethernet and Data Center
v 40GBASE-LX4 Ethernet Links
v Infiniband QDR and DDR interconnects
v Client-side 40G datacom connections
Package
1*sfp dust cover
1 *pair 40Gbps fiber transceiver module
1* package box
