1stPV 23.6" Super HD 5MP 16:9 Professional Security Monitor, 1 HDMI, 2 BNC Inputs(HD-TVI/AHD/CVI/CVBS) & 2 BNC Outputs, Working with Super HD 5MP Security Cameras Directly in Addition to DVR/NVR & PC
- 1. 23.6" Super HD 5MP/2592x1944 over Coax LED Security Monitor. Support up to 5MP/2592x1944 Super HD-TVI, HD-AHD, and 4MP HD-CVI. Super HD 5 megapixel (2592x1944) BNC resolution, which is 1.4 times higher than the 3.68MP (2560x1440) HDMI resolution from Normal PC monitors.
- 2. Super HD 5 megapixel (2592x1944) BNC resolution, which is 10 times higher than the Standard Definition (0.46MP/960H, 0.3MP/CVBS or VGA) BNC resolution from Normal CCTV/security monitors.

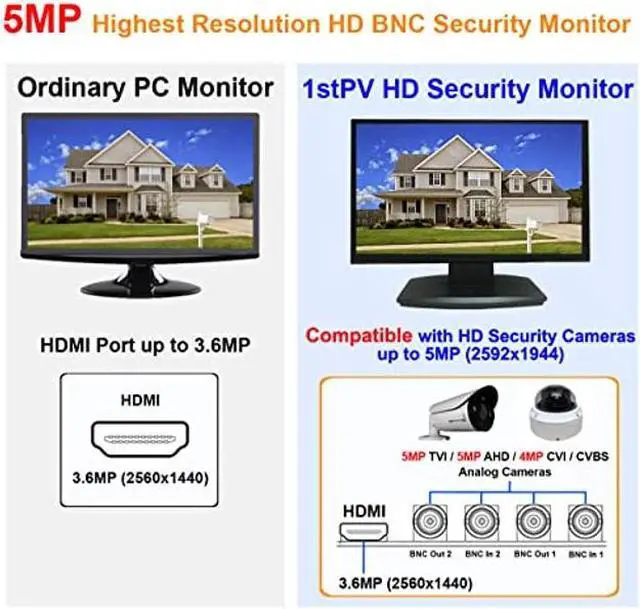

- 3. 1 HDMI & 2 Super HD BNC Video Inputs. BNC video-in port works directly with the new Super HD security cameras without going through any DVR or converters. And 2 BNC Video Outputs for Second Monitor. Comprehensive range of Super High Definition product line, including cameras, DVRs/NVRs, and Super HD monitors.
- 4. Fast 5ms response time to avoid blurred motion monitoring and feed delays on critical moment. Auto display recovery after power interruptions. Construction-black plastic bezel and removable base. NTSC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1st Pick Video Inc.
1stPV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

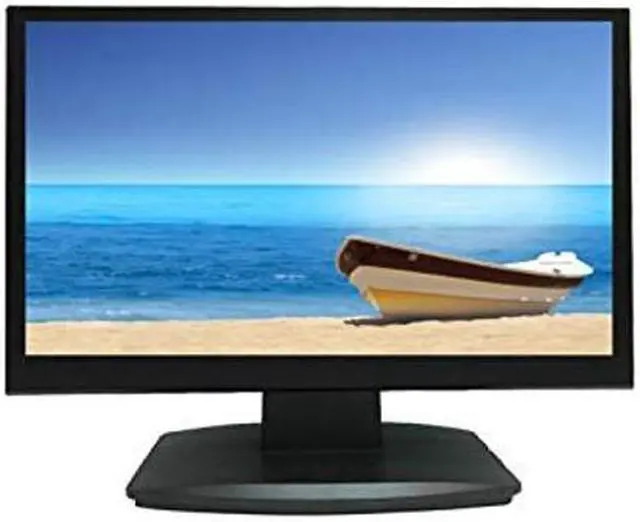

This is a 23.6 inch Analog HD 16:9 Professional Grade LED Security Monitor. Great reliability rating of 50, 000 hours for 24/7 security application requirements. Ergonomic tilt and swivel design for a more efficient, productive, and safer workplace. User friendly front push button operation. US local support and service.
Specification
Model#: 1PV-D236HD

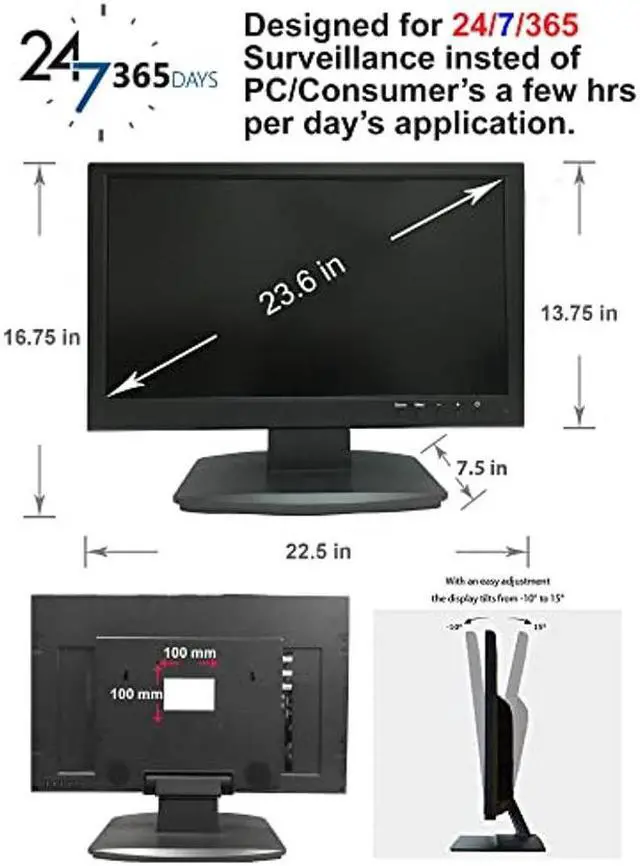

Size: 23.6" Wide Screen
Aspect Ratio (Pixel Count): 16:9 (FHD) (1920 x 1080p)
Viewing Lines (BNC Connector): 1000 TVL
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Response Time: 5 ms
Colors: 16.7M
Viewing Angle: H: 178deg/V: 178deg
Video Inputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS), 1x HDMI
Video Outputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS)
HDMI Format: 2560x1440@30/60, 19201080@25/30/50/60HZ, 1600x1200@60HZ, 1440x900@60HZ, 1366x768@60HZ, 1280x1024@60HZ, 1280x720@60HZ, 1024x768@60HZ, 800x600@60HZ
Analog HD:
TVI: 5MP@20fps, 4MP@25fps, 3MP@ 18.75 fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
AHD: 5MP@20fps, 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
CVI: 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30/50/60fps
Power Consumption: 12VDC, 3A, <25W
VESA Size: 100x100mm
Auto Adjustment: Yes
OSD Menu: Yes
Packing Dimensions (LxDxW): 22.8" x 4.7" x 17"
Net Weight: 13.9 lbs
Certification: FCC-DOC, CE, and RoHS
What is in the box?
23.6" Analog HD LED Security Monitor x 1; Power Cord, Adapter, Stand, User's Guide, and HDMI Cable
#CCTV monitor, Security monitor, Security displays, BNC monitor, VGA monitor, Security screen, Security camera monitor, Analog monitor, DVR monitor, NVR monitor, CCTV camera monitor, Remote viewing monitor, Monitoring monitor.
1stPV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.
This is a 23.6 inch Analog HD 16:9 Professional Grade LED Security Monitor. Great reliability rating of 50, 000 hours for 24/7 security application requirements. Ergonomic tilt and swivel design for a more efficient, productive, and safer workplace. User friendly front push button operation. US local support and service.
Specification
Model#: 1PV-D236HD
Size: 23.6" Wide Screen
Aspect Ratio (Pixel Count): 16:9 (FHD) (1920 x 1080p)
Viewing Lines (BNC Connector): 1000 TVL
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Response Time: 5 ms
Colors: 16.7M
Viewing Angle: H: 178deg/V: 178deg
Video Inputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS), 1x HDMI
Video Outputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS)
HDMI Format: 2560x1440@30/60, 19201080@25/30/50/60HZ, 1600x1200@60HZ, 1440x900@60HZ, 1366x768@60HZ, 1280x1024@60HZ, 1280x720@60HZ, 1024x768@60HZ, 800x600@60HZ
Analog HD:
TVI: 5MP@20fps, 4MP@25fps, 3MP@ 18.75 fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
AHD: 5MP@20fps, 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
CVI: 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30/50/60fps
Power Consumption: 12VDC, 3A, <25W
VESA Size: 100x100mm
Auto Adjustment: Yes
OSD Menu: Yes
Packing Dimensions (LxDxW): 22.8" x 4.7" x 17"
Net Weight: 13.9 lbs
Certification: FCC-DOC, CE, and RoHS
What is in the box?
23.6" Analog HD LED Security Monitor x 1; Power Cord, Adapter, Stand, User's Guide, and HDMI Cable
#CCTV monitor, Security monitor, Security displays, BNC monitor, VGA monitor, Security screen, Security camera monitor, Analog monitor, DVR monitor, NVR monitor, CCTV camera monitor, Remote viewing monitor, Monitoring monitor.
