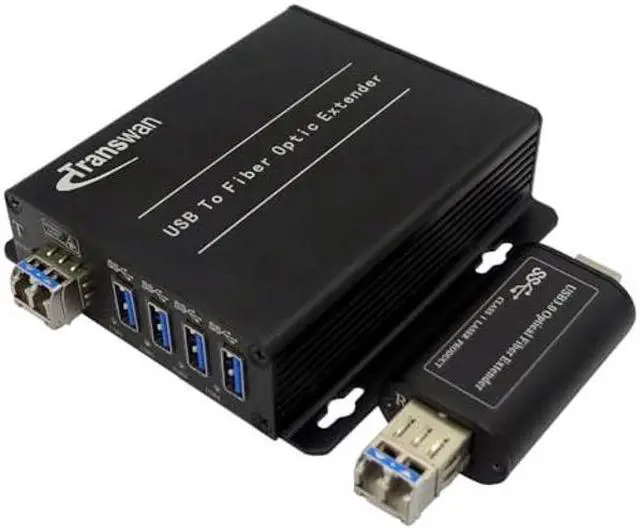

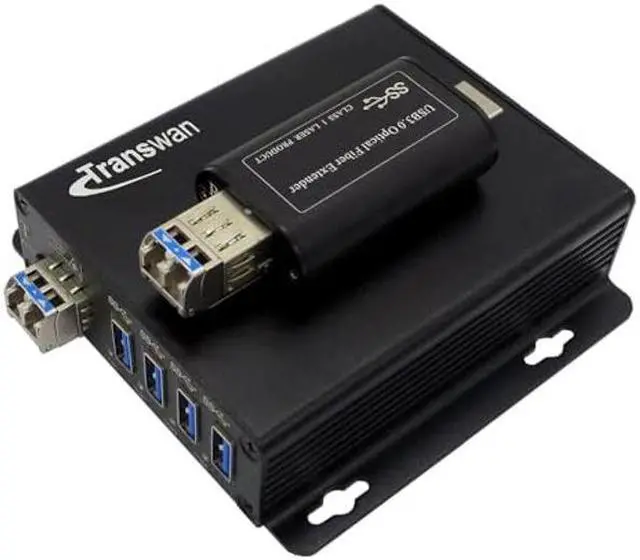

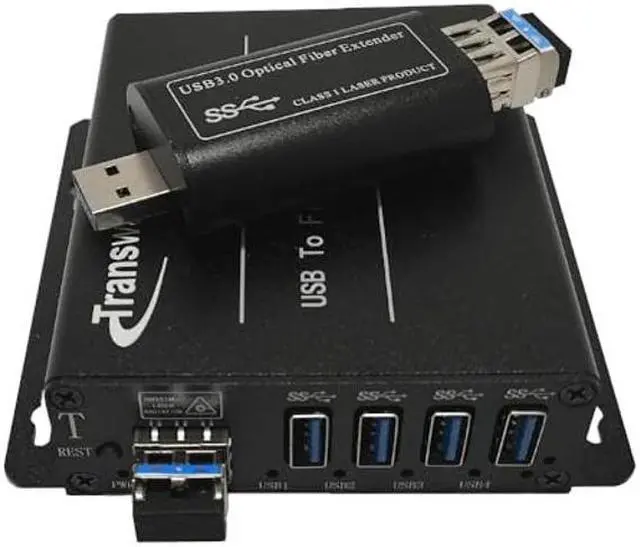

Transwan USB 3.0 Hub Fiber Optic Extender to Max 250 Meters with 10 Gbps SFP Module, USB 3.0 Splitter 1 to 4 Ports Over 2 Fibers, Supports 5 Gbps Super-Speed, Supports Kinect Devices & HD Camera etc

BY-USB-412DF includes a transmitter (client-side) and a receiver (host-side), which can extend the Super Speed USB 3.0 to a remote location over 2 core Single-mode fiber cable with Max distance 250 Meters. It also can split 1 USB 3.0 interface to 4 USB 3.0 interfaces.

Supported Typical USB 3.0 Devices:
1). USB 3.0
Camera:
RealSense, XiQ USB 3.0 Camera, Kinect Devices, EMCCM camera etc
2).
Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing etc
3).
Aduio Device:
Stereo D to A Converter etc
4).
Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5. ) Others

Application:
1. Industrial video transmission
2. USB 3.0 Vision cameras
3. HD video surveillance system.
4. High - speed data acquisition system
5. Remote storage.
6. Digital signage and TV wall.
7. Industrial printer system.
8. VA/VR systems.

Note:
Not backwards compatible with USB 2.0 and USB 1.1 devices.
4 Ports hub share the 5 Gbps Capacity of 1 port at the local side, so it allows only 1~2 USB ports for USB 3.0 Camera run at the FULL speed at the SAME time. but for USB 3.0 flash drive, each of 4 ports can work at the SAME time.

SPECS:
USB 3.0 ports at transmitter: 4 ports
Optical Connector: 2 x LC
Wave length: 1310nm
Support Fiber types: 9/125mm Single-mode Fiber

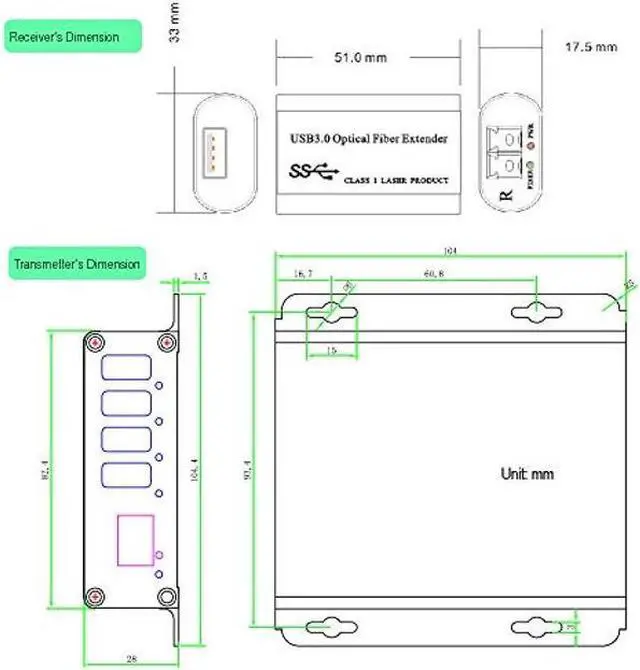

Physical Size (Lx W xH): 1)
Transmitter: 104 x 104 x 28 mm; 2)
Receiver: 51 x 33 x 17.5 mm
Case: Aluminum
Color: Black
N. W.: 0.5K g
Power Voltage: 5~12V DC
Sender power consumption: <18W
Receiver power consumption: <2W
Environment Working temperature: 0-50
Storage temperature: -40-85
Humidity: 0-95% (non-condensing)

Package:
1. 1 x transmitter (client side).
2. 1 x receiver (host side).
3. 1 x Power Adapter DC 5~12V with US plug.
4. 1 x Manual.
