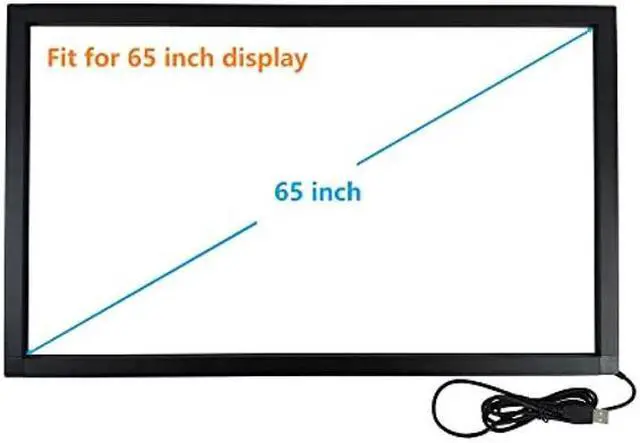

Deyowo 65 Inch Interactive 10 Points Infrared IR Touch Screen Overlay Frame Free Driver

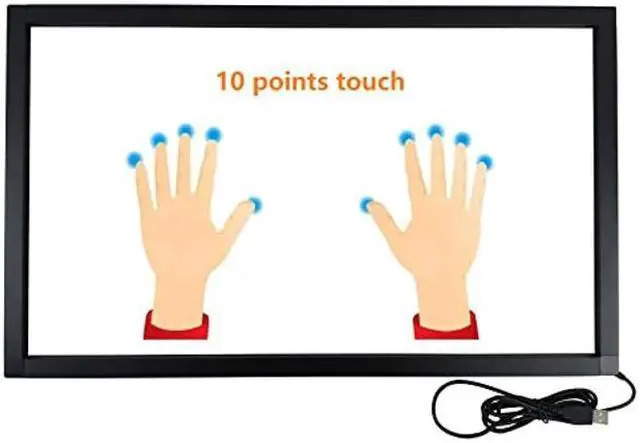

- 10 POINTS TOUCH: This item is 65 inch 10 points interactive infrared touch screen frame, not including glass, Design for for 65 inch LCD display. We have full size of infrared touch frame for sale, which size be from 24 inch to 98 inch, pleasae you visti the DEYOWO store to know more.
- EASY INSTALLATION: Ultra narrow edge design and only 23 mm width for better matching your display; Our IR touch frames is Plug in design, the installation job is very simple and easy. You can read Installation Guide Manual or watch installation video online, you will do it well. If the touch positioning is not accurate after installation, we can provide the calibration software. After installation, if it can't work or function is abnormal, please contact us, we will provide technology support.
- FREE DRIVER: You don't need to install drivers for this Item on Windows,Android and Linux, meanwhile it support Mac iOS with HID driver. If you use this item on Mac iOS, please contact us and get the
+
+
Overview
Specs
Reviews
BUSINESS FOCUS We are the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor, touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.
DETAIL SPEC *Product name: 65 inch interactive IR infrared touch scree frame overlay panel *Detection
Method: Infrared rays *Detail size data
Display area: L1=1434mm, W1=809mm
Outside area: L2= 1480.3 mm, W2=855mm
Frame thickness: 9.4
mm *Ratio: 16:9 *Touch
Points: 10 points *Object
Touch Size: >= O5mm *Touch
Activation Force: Non Minimum activation force *Touch
Durability: Over 60 millions for single touch *Touch
Resolution: 32768*32768 *Position
Accuracy: 2mm *Fault
Tolerance: Workable even 75% sensors are damaged *Frames per
Second: Up to 450 fps *Touch
Response Time: 8ms *Draw
Response Time: 8ms
*Altitude: 3, 000m *Light
Transmission: 100% without
glass *Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi) (Does not support Smart TV Android system, Raspberry Pi) *Second-development
Support: free SDK, support C/C++, C#, Java etc.
ElECTRICAL *Operating Voltage: DC 4.5V ~ DC 5.5V *Power
Supply: Single USB
Connection *Power Consumption: 1.0W (200mA at DC 5V) ENVIRONMENT *Operating
Temperature: -20degC~70degC *Storage
Temperature: -30degC~80degC *Operating
Humidity: 10%~90%RH(Non-condensing) *Storage
Humidity: 0~95%RH
*Certification: FCC, CE,
ROHS *Warranty: 3 year
DETAIL SPEC *Product name: 65 inch interactive IR infrared touch scree frame overlay panel *Detection
Method: Infrared rays *Detail size data
Display area: L1=1434mm, W1=809mm
Outside area: L2= 1480.3 mm, W2=855mm
Frame thickness: 9.4
mm *Ratio: 16:9 *Touch
Points: 10 points *Object
Touch Size: >= O5mm *Touch
Activation Force: Non Minimum activation force *Touch
Durability: Over 60 millions for single touch *Touch
Resolution: 32768*32768 *Position
Accuracy: 2mm *Fault
Tolerance: Workable even 75% sensors are damaged *Frames per
Second: Up to 450 fps *Touch
Response Time: 8ms *Draw
Response Time: 8ms
*Altitude: 3, 000m *Light
Transmission: 100% without
glass *Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi) (Does not support Smart TV Android system, Raspberry Pi) *Second-development
Support: free SDK, support C/C++, C#, Java etc.
ElECTRICAL *Operating Voltage: DC 4.5V ~ DC 5.5V *Power
Supply: Single USB
Connection *Power Consumption: 1.0W (200mA at DC 5V) ENVIRONMENT *Operating
Temperature: -20degC~70degC *Storage
Temperature: -30degC~80degC *Operating
Humidity: 10%~90%RH(Non-condensing) *Storage
Humidity: 0~95%RH
*Certification: FCC, CE,
ROHS *Warranty: 3 year
