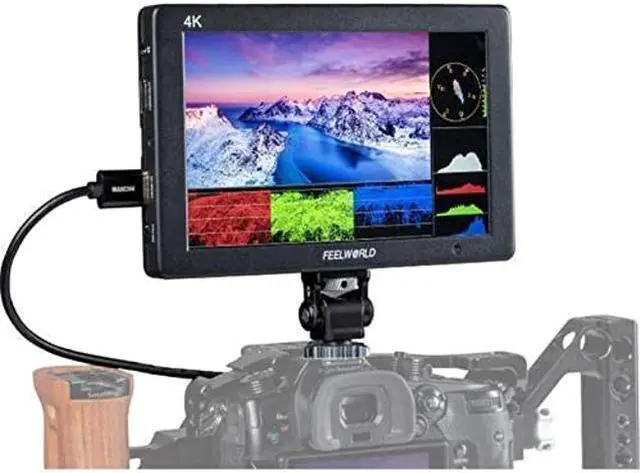

FEELWORLD T7 Plus 7 Inch 3D LUT 4K HDMI Camera Field Monitor Video Assist Full HD 1920x1200 Solid Aluminum Housing DSLR Monitor with Waveform histogram vectorscope Peaking Focus False Colors
- FEELWORLD T7 PLUS is a 7-inch impressive 323 PPI (Pixels Per Inch). High Resolution: 1920x1200 Full HD , Brightness: 450cd/m2, Contrast: 1200:1, Aspect Ratio:16:10,160degwide viewing angles IPS panel.

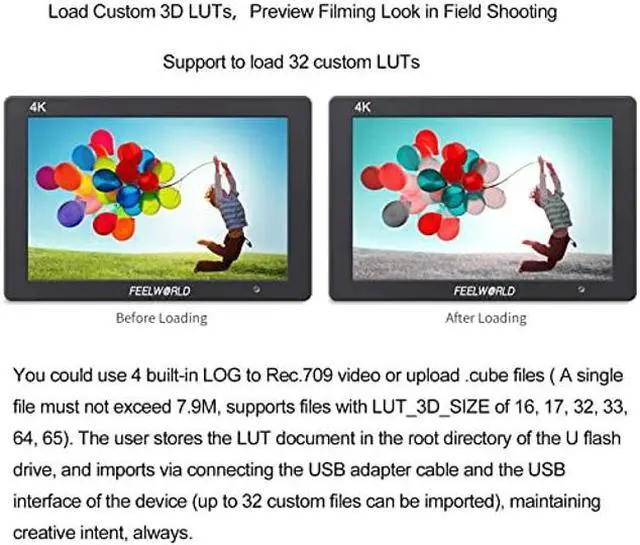

- Support to load 32 custom LUTs. The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting.

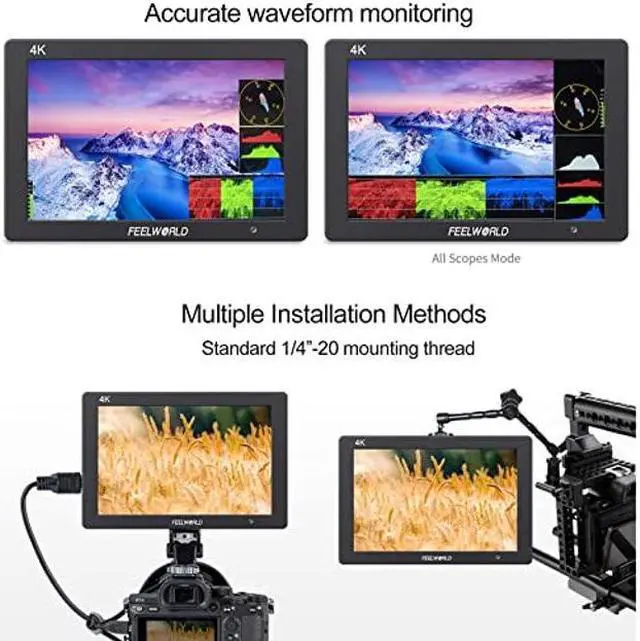

- T7 PLUS built in waveform monitoring. Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals.
- Ultra-thin Lightweight Design, Hard aluminum shell Specially designed to merge portability, and functionality, 18mm thickness 320g the T7 PLUS gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

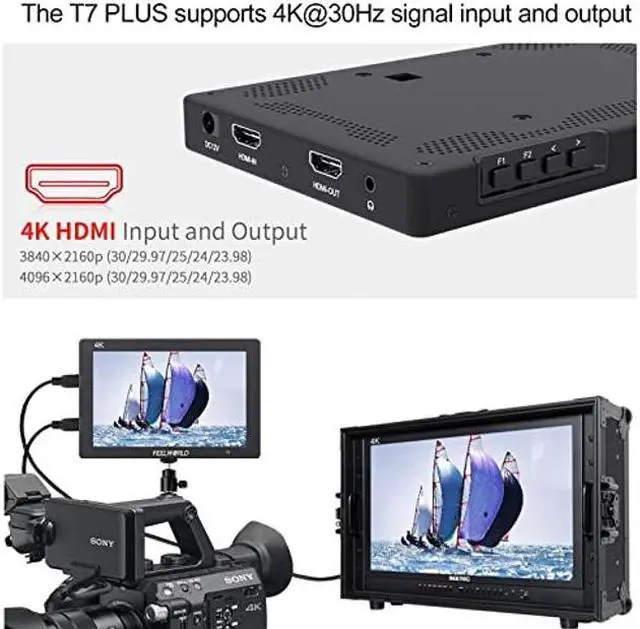

- 4K HDMI Input and Output,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: T7 PLUS
Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m2
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80deg/80deg(L/R) 80deg/80deg(U/D)
Input
1 X HDMI
Output
1 X HDMI
Audio
Audio: Stereo Headphone, Speaker
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/29/25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
4K UHD 3840x2160p (30/ 29.97 /25/24/ 23.98H z), 4096x2160p (24Hz)
General
Input Voltage: DC7~24V
Power Consumption: <=8W
Working Temperature: -20degC~55degC
Storage Temperature: -30degC~65degC
Install Way: 1/4"-20 Thread Socket (top, bottom)
Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)

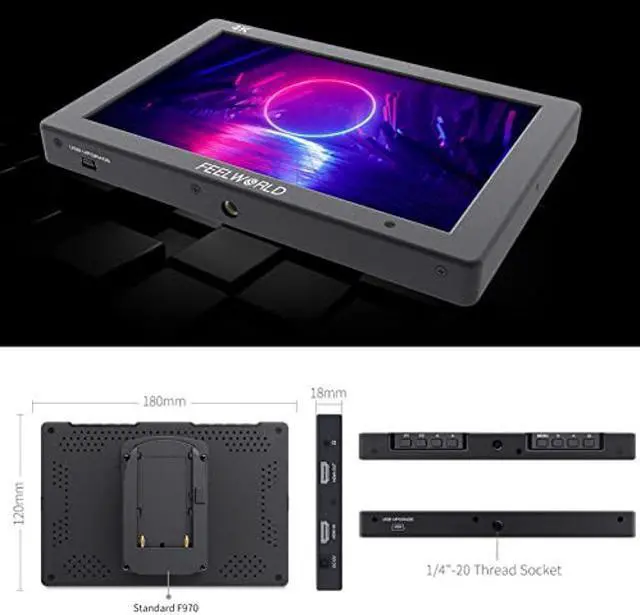

Unit Size: 180Lx120Hx18D (mm)
Unit Weight: 320g/350g (With F970 Plate)
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
* All waves
* Waveform (RGB, Y, YUV)
* Histogram (RGB1, Y, RGB2)
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35: 1)
* Ratio Marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
* Color Temperature Adjustment
* Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Scan Mode (Under Scan, Over Scan)
* Pixel to Pixel
* Zoom All
* U/D Zoom
* L/R Zoom
Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m2
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80deg/80deg(L/R) 80deg/80deg(U/D)
Input
1 X HDMI
Output
1 X HDMI
Audio
Audio: Stereo Headphone, Speaker
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/29/25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
4K UHD 3840x2160p (30/ 29.97 /25/24/ 23.98H z), 4096x2160p (24Hz)
General
Input Voltage: DC7~24V
Power Consumption: <=8W
Working Temperature: -20degC~55degC
Storage Temperature: -30degC~65degC
Install Way: 1/4"-20 Thread Socket (top, bottom)
Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
Unit Size: 180Lx120Hx18D (mm)
Unit Weight: 320g/350g (With F970 Plate)
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
* All waves
* Waveform (RGB, Y, YUV)
* Histogram (RGB1, Y, RGB2)
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35: 1)
* Ratio Marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
* Color Temperature Adjustment
* Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Scan Mode (Under Scan, Over Scan)
* Pixel to Pixel
* Zoom All
* U/D Zoom
* L/R Zoom
