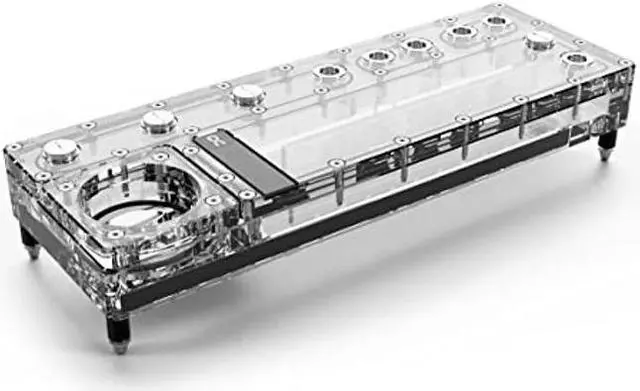

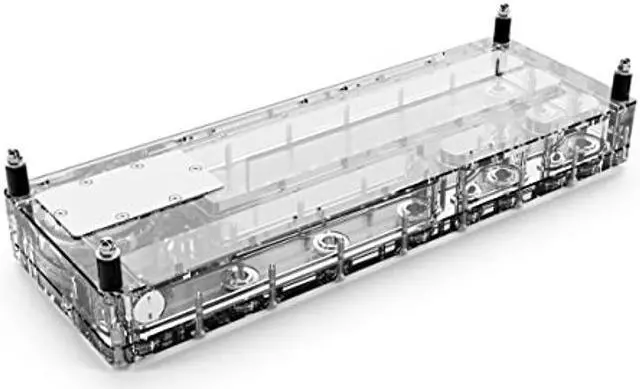

Alphacool Core Distro Plate 360 Left VPP/D5 (15476)

Alphacool's Core Distro Plate is a must-have for any performance-oriented custom water cooling system, as it significantly simplifies the planning, construction and maintenance of complex water circuits. core design A core element of Alphacool's Core Design series are the chrome-plated, brass G1/4" connections. With the Core Distro Plate, the connections are only embedded and not screwed into a thread as usual. This way Alphacool avoids the problem of possible leaks due to cracking through the direct screwing of the connections into the acrylic. The connections are in two parts, provided with an O-ring and counteract each other during assembly in the acrylic.

This not only ensures that each individual connection is absolutely tight, but also enables the clear and functional appearance of the Alphacool Core Design Series lighting Alphacool's Core Distro Plate is made of high-quality acrylic glass. This allows an unobstructed view of the coolant and enables a brilliant play of colors thanks to the built-in digitally addressable aRGB lighting. The lighting can be controlled via a digital aRGB header on the mainboard or optionally by Alphacool's Aurora Eiscontrol aRGB controller (item no.: 15360).
Compatibility: - Can be mounted on the radiator or on the panel Technical

Details

Distro Plate: Dimensions (L x W x
H): 360 x 125 x 68.80 mm
Material: Acrylic
Volume: 309ml
Pump Compatibility: D5/VPP
Connections: 10x G1/4" internal thread / 1x drain port Maximum
Working Temperature: 60c
Pressure Tested: 0.8 bars Number of Digital aRGB
LEDs: 18 Voltage Digital aRGB
LEDs: 5V Power Connection Digital aRGB
LEDs: 3-pin JST + 3-pin 5V
Model: 15476
