ELP 4K USB Camera 170degree Fisheye USB Webcam Board with Microphone,Ultra HD 3840X2160 30fp 4K Cameras,Wide Angle IMX317 Mini 4K USB Camera Module with Audio for Machine Vision,Smart Kiosk,Robot,ATM
Limited time offer, ends 05/05 By QURO

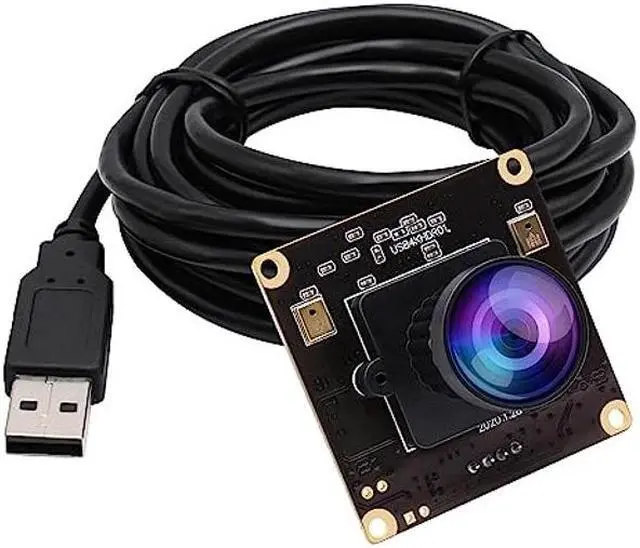

- High Quality Imaging: ELP 4k usb camera with metal case adopts high quality 4k 1/2.5" IMX317 sensor for sharp image and accurate color reproduction, still picture resolution: 3840x2160 Max.
- Wide Angle: Mounted a High quality FHD 170 degree wide angle fisheye M12 lens with IR filter, provides a wilder Field of View. Horizontal Angle:171deg,Vertical Angle:94deg.
- With microphone for audio recording: Mini board size 38x38mm for embedded application,low power consumption - ideal for portable equipment..Frame Rates: 3840x2160@30fps/2592x1944@30fps/2048x1536@30fps/1600x1200@30fps/1920x1080@30fps

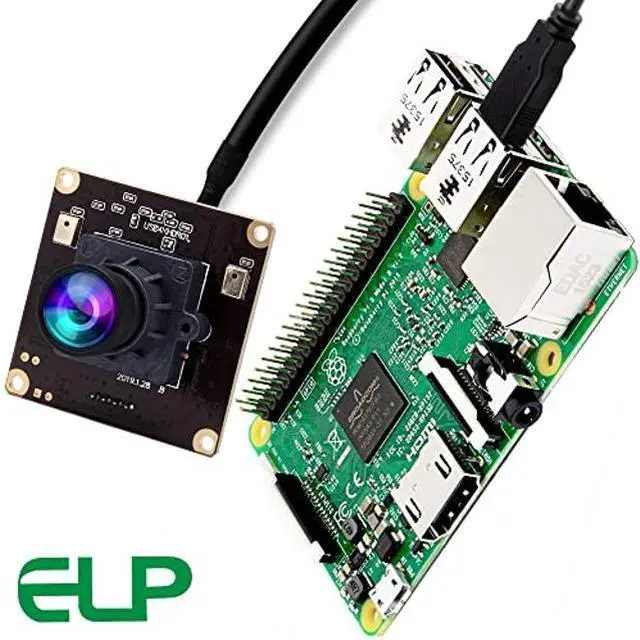

- Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
- Applications: ELP 4K usb camera with 170degree wide angle fisheye lens is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking,Biometric Scanning,Casino Game,KIOSK,or oth
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Sensor IMX317 (1/ 2.5" ) Max Resolution 3840 (H) *2160 (V) Sensitivity 1000mV/Lux-sec Image area 6100umx4524um Picture format MJPEG / YUY2 (YUYV) Center Definition 1000LW/PH (Center) S/N (Signal Noise Ratio) 26dB Sensitivity 0.65V /lux-sec@550nm Low illumination 0.2 lux Shutter Electronic rolling shutter / Frame exposure Interface USB 2.0 High Speed AEC/AEB/AGC Support Resolution & FPS 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2 1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2 1280x960@5fps YUY2/1280x720@ 5fps YUY2 1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast,
Exposure Lens Size: 1/ 2.3", FOV: 100Degree Relative
Illumination (Sensor): 70%
IR Filter: 650+-10nm Power Supply & Connector USB BUS POWER 4P- 2.0 mm socket Power DC5V Current 200mA Size 38mm x 38mm Storage Temperature -20degC to 70degC Working Temperature 0degC to 60degC Operating System Win XP/Vista/Win7/Win8 / Linux with UVC(above linux- 2.6. 26) MAC-OS X 10.4. 8 or later/Android 4.0 or above with UVC
Exposure Lens Size: 1/ 2.3", FOV: 100Degree Relative
Illumination (Sensor): 70%
IR Filter: 650+-10nm Power Supply & Connector USB BUS POWER 4P- 2.0 mm socket Power DC5V Current 200mA Size 38mm x 38mm Storage Temperature -20degC to 70degC Working Temperature 0degC to 60degC Operating System Win XP/Vista/Win7/Win8 / Linux with UVC(above linux- 2.6. 26) MAC-OS X 10.4. 8 or later/Android 4.0 or above with UVC
