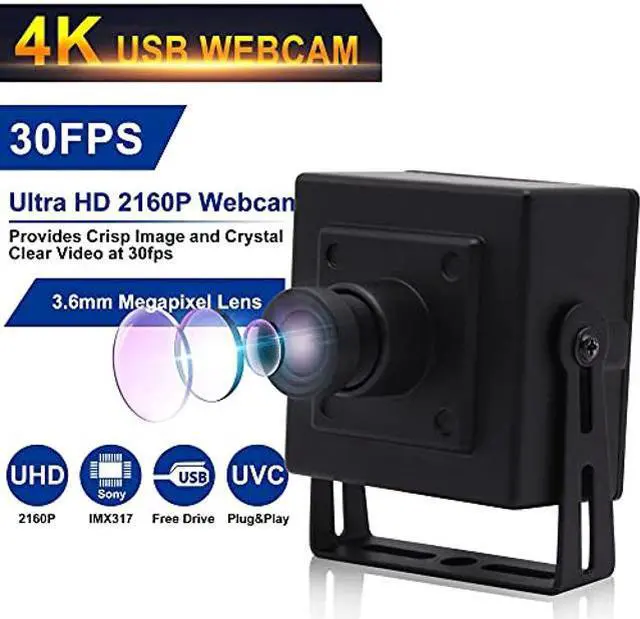

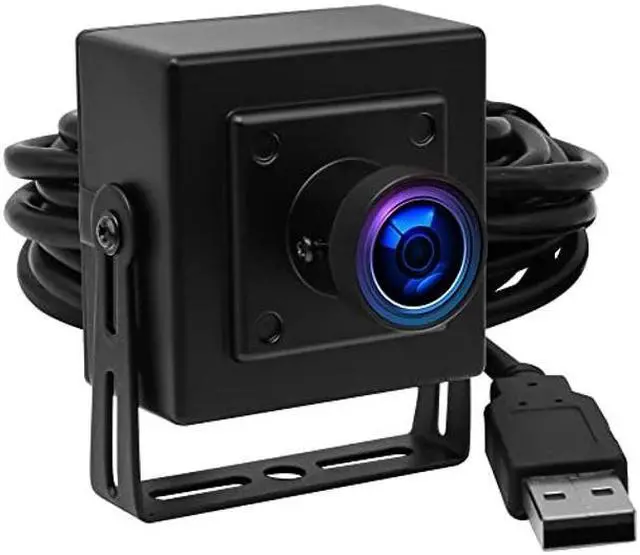

ELP 4K Camera 3.6mm Lens Mini USB Camera with 3840x2160 HD Webcam for MAC/Windows/Linux/Raspberry Pi Web Camera
- High Quality Imaging: ELP 4k usb camera with metal case adopts high quality 4k 1/2.5" IMX317 sensor for sharp image and accurate color reproduction, still picture resolution: 3840x2160 Max.
- Wide Angle: Mounted a High quality 3.6mm M12 lens with IR filter, provides a wilder Field of View. Horizontal Angle:93deg,Vertical Angle:51deg.
- With microphone for audio recording: Low power consumption - ideal for portable equipment.Frame Rates: 3840x2160@30fps/2592x1944@30fps/2048x1536@30fps/1600x1200@30fps/1920x1080@30fps
- Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
- Applications: ELP 4K usb camera with metal box housing is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking,Biometric Scanning,Casino Game,KIOSK,or other machine vision applications which demand high resolution.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Sensor IMX317 (1/ 2.5" ) Max Resolution 3840 (H) *2160 (V) Sensitivity 1000mV/Lux-sec Image area 6100umx4524um Picture format MJPEG / YUY2 (YUYV) Center Definition 1000LW/PH (Center) S/N (Signal Noise Ratio) 26dB Sensitivity 0.65V /lux-sec@550nm Low illumination 0.2 lux Shutter Electronic rolling shutter / Frame exposure Interface USB 2.0 High Speed AEC/AEB/AGC Support Resolution & FPS 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2 1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2 1280x960@5fps YUY2/1280x720@ 5fps YUY2 1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast,
Exposure Lens Size: 1/ 2.3", FOV: 100Degree Relative
Illumination (Sensor): 70%
IR Filter: 650+-10nm Power Supply & Connector USB BUS POWER 4P- 2.0 mm socket Power DC5V Current 200mA Size 38mm x 38mm Storage Temperature -20degC to 70degC Working Temperature 0degC to 60degC Operating System Win XP/Vista/Win7/Win8 / Linux with UVC(above linux- 2.6. 26) MAC-OS X 10.4. 8 or later/Android 4.0 or above with UVC
Exposure Lens Size: 1/ 2.3", FOV: 100Degree Relative
Illumination (Sensor): 70%
IR Filter: 650+-10nm Power Supply & Connector USB BUS POWER 4P- 2.0 mm socket Power DC5V Current 200mA Size 38mm x 38mm Storage Temperature -20degC to 70degC Working Temperature 0degC to 60degC Operating System Win XP/Vista/Win7/Win8 / Linux with UVC(above linux- 2.6. 26) MAC-OS X 10.4. 8 or later/Android 4.0 or above with UVC
