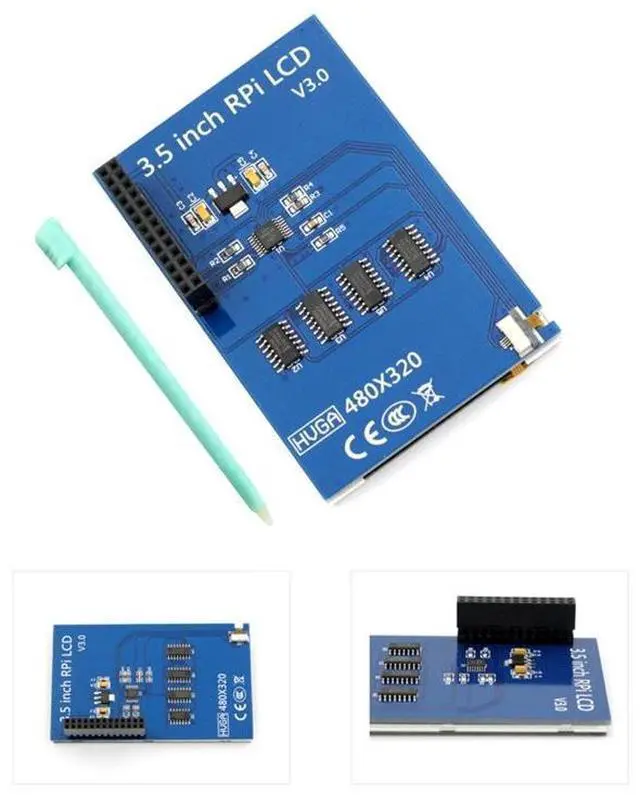

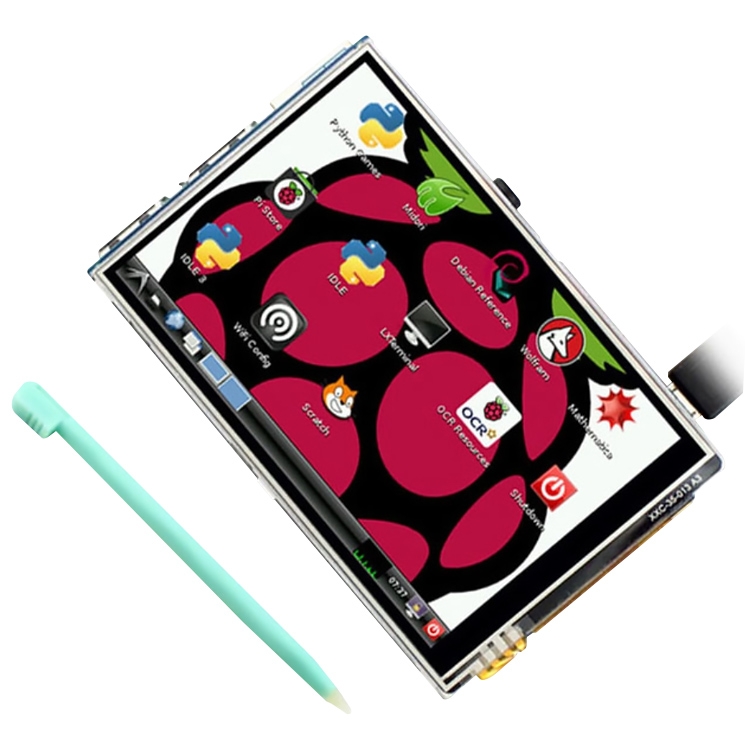

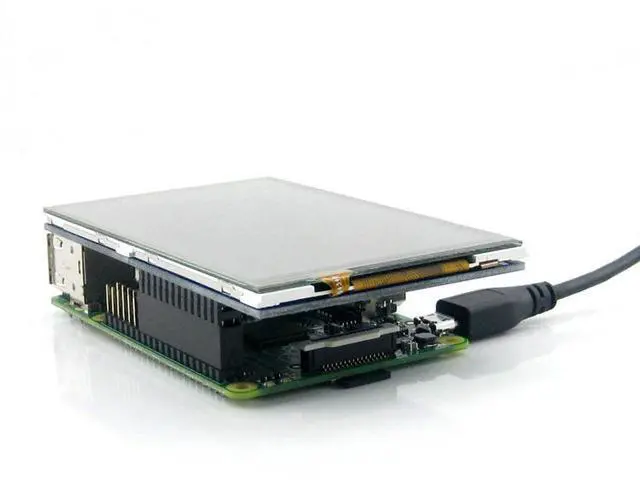

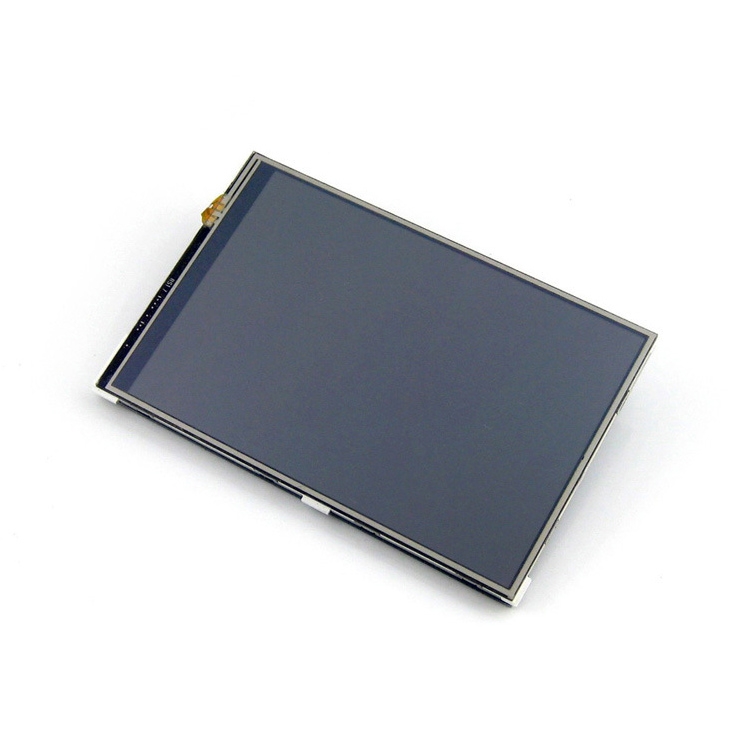

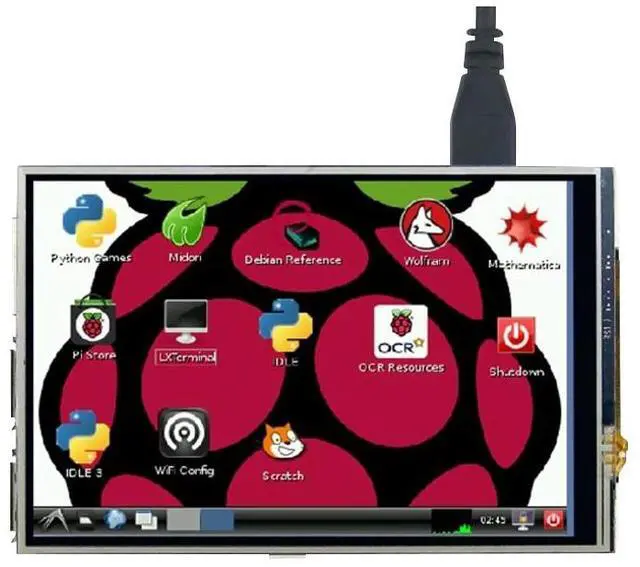

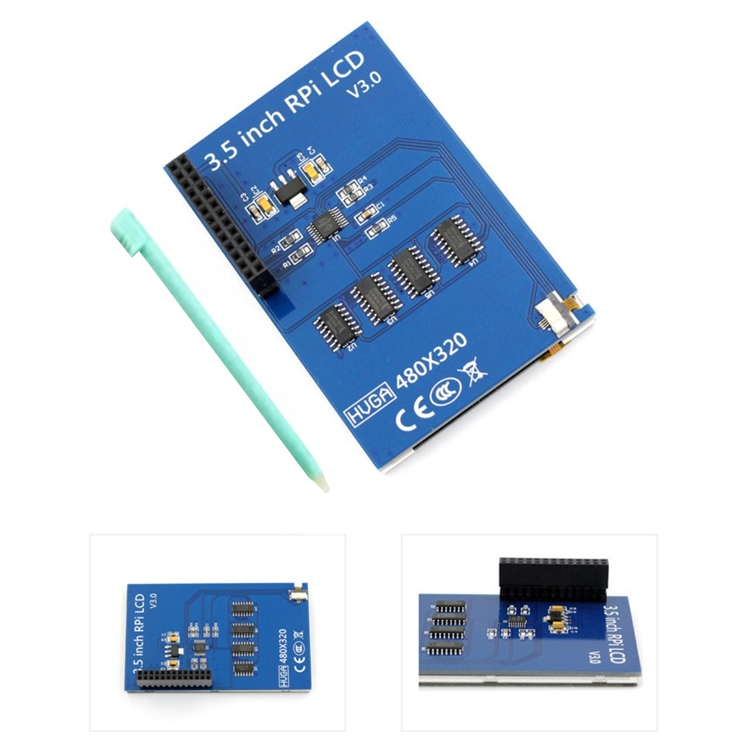

3.5 inch LCD TFT Touchscreen Display Touch Shield with Stylus Pen for Raspberry Pi
- This5inchtouchscreenmoduleisdesignedespeciallyforRaspberryPi,usingthelatestLinuxCoresystem(vision189,thelatestRaspberryPiofficialUIdesktopfilesystemandthefastestSPItransmissiondata,anidealalterna
- Features
- LCDInterface:SPI
- TouchScreenController:XPT204
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About the Product
This 3.5 inch touch screen module is designed especially for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI transmission data, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime.
Features
1. LCD Interface: SPI.
2. Touch Screen Controller: XPT2046.
3. Backlight: LED.
4. LCD Type: TFT.
5. Resolution: 320*480 DOTS.
6. Core System: vision 3.18.9.
7. SPI Speed: 32MHz.
8. Color Levels Index: 65536.
9. Power Consumption/Backlight Current: TBD.
10. Supports Raspbian system, enables your system to:
- Play videos (supports multi formats, MP4 and so on).
- Take photos by touching (up to 17 camera modes).
- Support software keyboard (system interaction without keyboard/mouse).
- Support driver is installed automatically.
This 3.5 inch touch screen module is designed especially for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI transmission data, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime.
Features
1. LCD Interface: SPI.
2. Touch Screen Controller: XPT2046.
3. Backlight: LED.
4. LCD Type: TFT.
5. Resolution: 320*480 DOTS.
6. Core System: vision 3.18.9.
7. SPI Speed: 32MHz.
8. Color Levels Index: 65536.
9. Power Consumption/Backlight Current: TBD.
10. Supports Raspbian system, enables your system to:
- Play videos (supports multi formats, MP4 and so on).
- Take photos by touching (up to 17 camera modes).
- Support software keyboard (system interaction without keyboard/mouse).
- Support driver is installed automatically.
