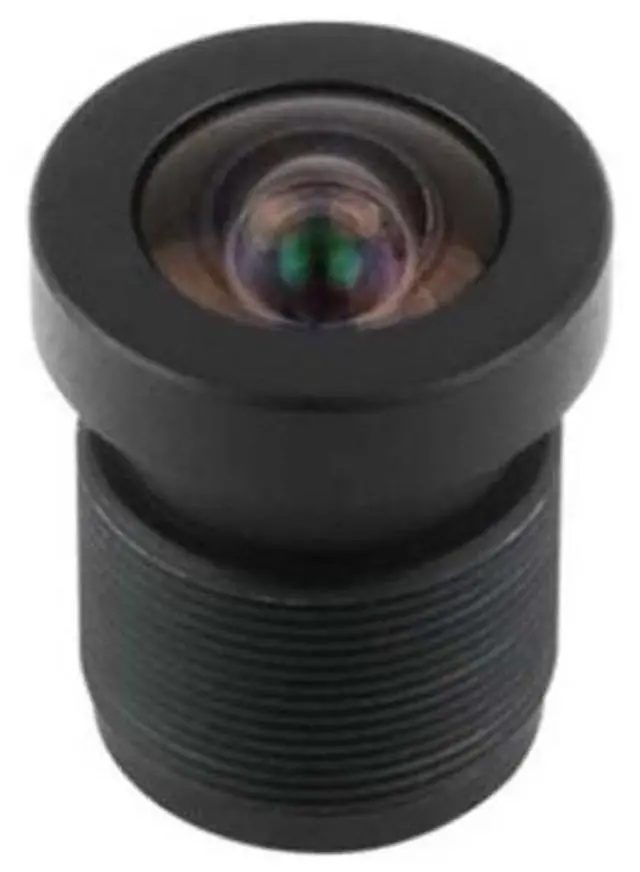

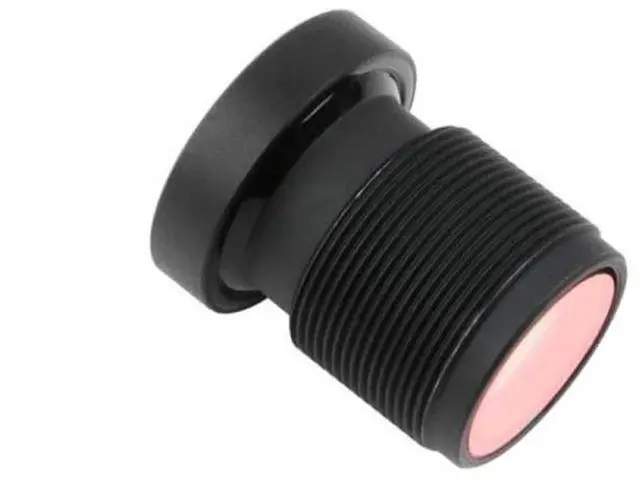

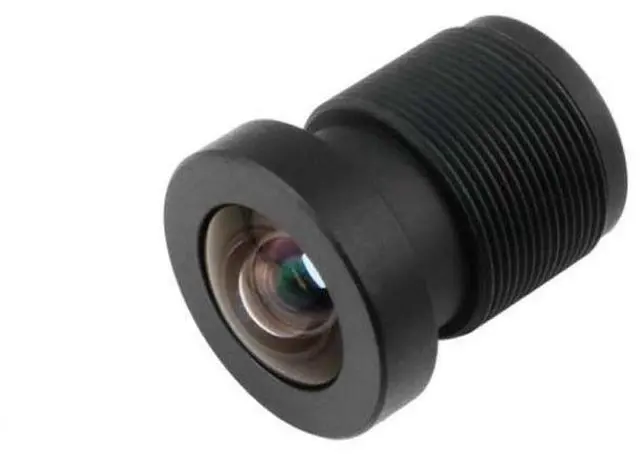

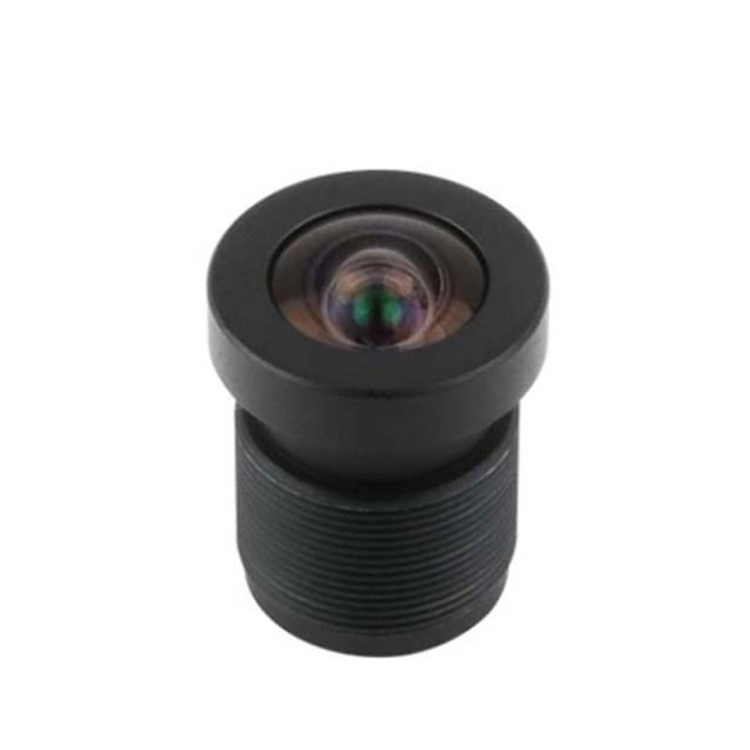

Waveshare WS1053516 High Resolution Lens 16MP, 105 Degree FOV, 3.56mm Focal length, For Raspberry Pi Camera M12 23966 23966

ForRaspberry_PiM12cameramodule
Resolution:16megapixels
Focallength:56mm
Aperture(F/NO:5

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

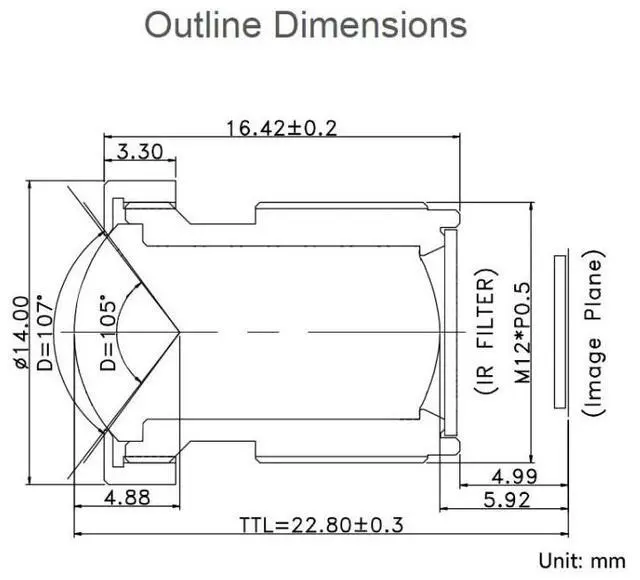

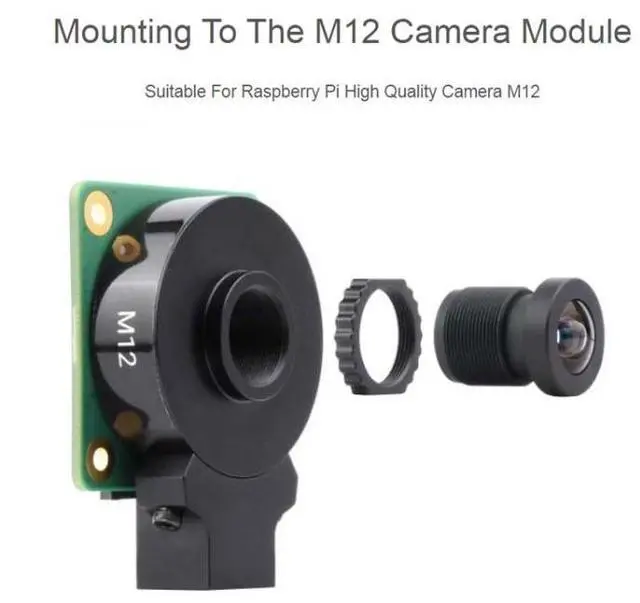

1. For Raspberry_Pi M12 camera module
2. Resolution: 16 megapixels
3. Focal length: 3.56mm
4. Aperture (F/NO): 2.5
5. Back focal length: 5.92mm
6. Distortion: less than -17.6%
7. Operating temperature: -30-70 degrees Celsius
8. Mounting: M12 x P0.5
9. Structure: 4G3P+IR
10. Weight: 7g
11. Field of view:
-Image format: 1/2.3 inch
-Diagonal: 105 degrees
-Horizontal: 88 degrees
-Vertical: 70 degrees

Note: To use with Raspberry Pi Zero or Zero 2W, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable
