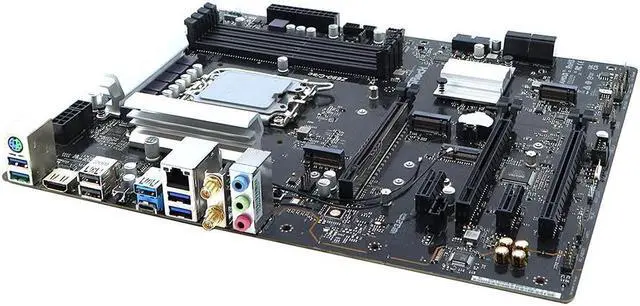

Z690-C/ac Asrock Intel Z690 Socket LGA1700 DDR4 Hdmi ATX Motherboard NO I/O Intel LGA1700 Motherboard

Model: Z690-C/ac
Part Number: 80-MXBHA2-A1B01
Compatible Part Numbers: 80-MXBHA2-A1B05
Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th, 13th & 12th Gen Intel Core Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333MHz(O.C.)
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Bluetooth Standard: Bluetooth+ High speed class II
Wireless Lan Support: 802.11ac WLAN
Network/Communications: Intel I219V Gigabit LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 4x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 1x Thunderbolt AIC Connector (3-pin), 1x USB 2.0 Header (Supports 2 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 4x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port with LED, 1x BIOS Flashback Button, 3x HD Audio Jacks
Expansion Slots: 1x Hyper M.2 Socket (M2_1, Key M) 2260/2280 PCIe Gen4x4, 1x Hyper M.2 Socket (M2_2, Key M) 2242/2260/2280 PCIe Gen4x4, 1x Hyper M.2 Socket (M2_3, Key M) 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4, 1x Ultra M.2 Socket (M2_4, Key M) 2280 PCIe Gen3x4, 4x SATA3 6.0 Gb/s, 1x PCIe 5.0 x16 Slot (PCIE1) x16 mode, 1x PCIe 4.0 x16 Slot (PCIE3) x4 mode, 1x PCIe 3.0 x16 Slot (PCIE5) x1 mode, 2x PCIe 3.0 x1 Slots (PCIE2 and PCIE4), 1x M.2 Socket (Key E) 2230 WiFi/BT PCIe WiFi module and Intel CNVi
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit / 11 64-bit

Please note, this motherboard does not include an I/O Shield, cables, fan's bracket, fan's mounting backplate, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
