Alphacool Eispumpe VPP755 with Eisdecke D5 V.3 Pump / Res Combo, D5, Acetal

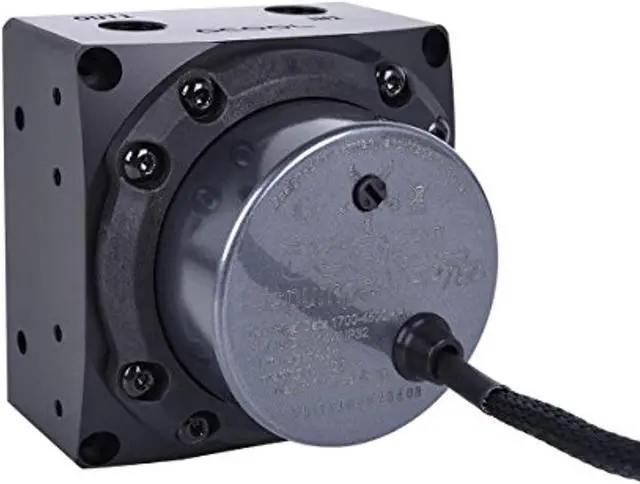

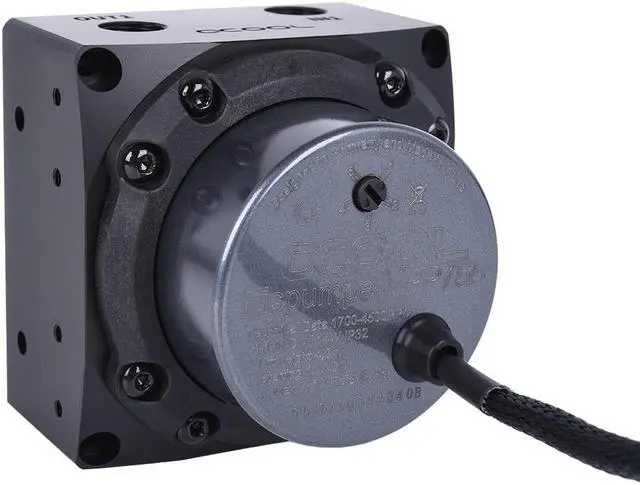

VPP755 Eispump Technical Specifications

Dimensions (DxH): 60 x 53.5 mm
Cable length: 50cm
Standard voltage: 12V DC
Power consumption: 14W
Permitted voltage: 8-13V DC
Pressure at 12V: 4m water head
Maximum flow rate: 350l/h
Pump medium: water, water/glycol mixture
Maximum system temperature: 65º C

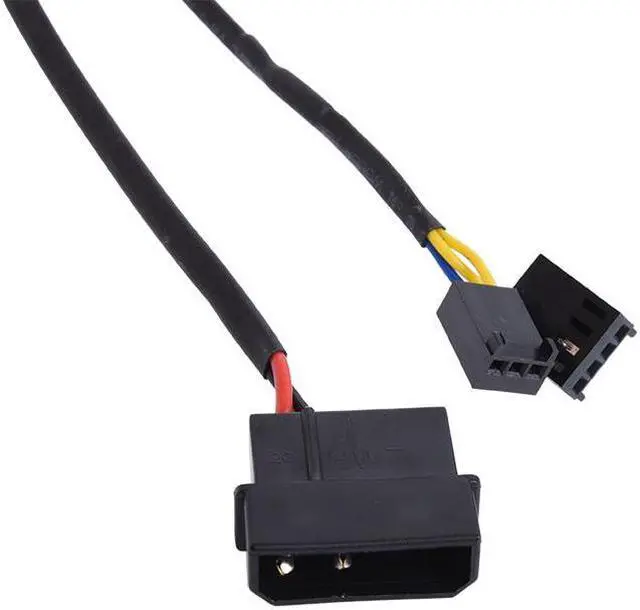

Power connection: 4-pin molex
Tach signal: 3-pin
PWM signal: 4-pin
Special feature: adjustable in five levels
Level 1: 1800 RPM
Level 2: 2500 RPM
Level 3: 3200 RPM
Level 4: 3900 RPM
Level 5: 4500 RPM

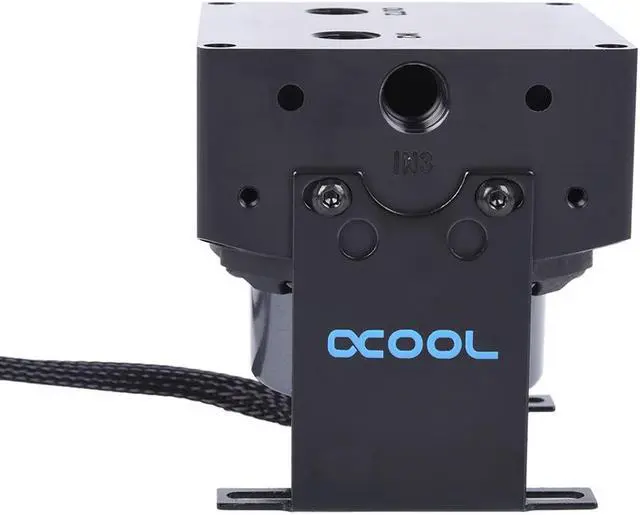

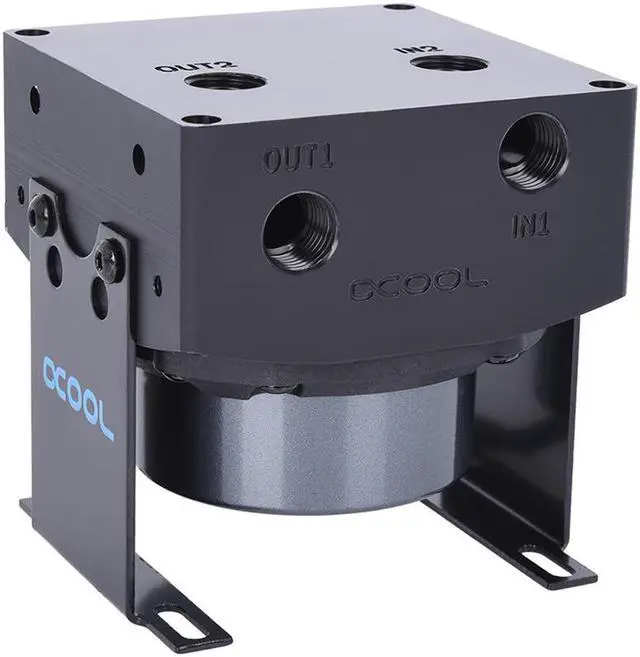

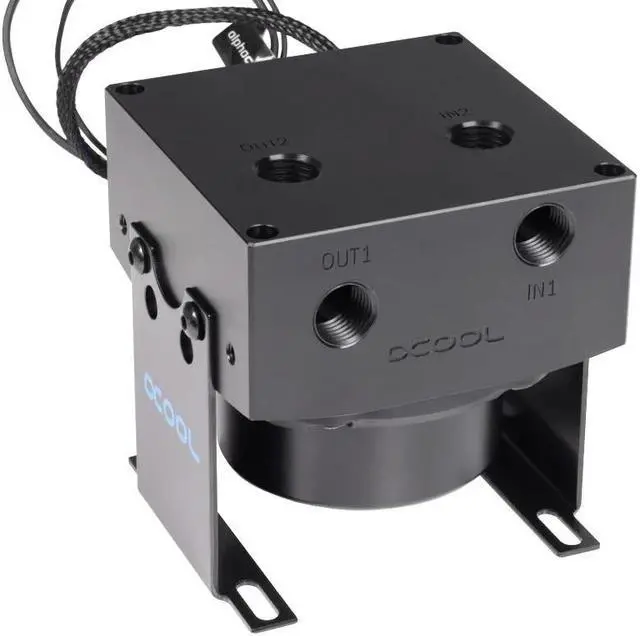

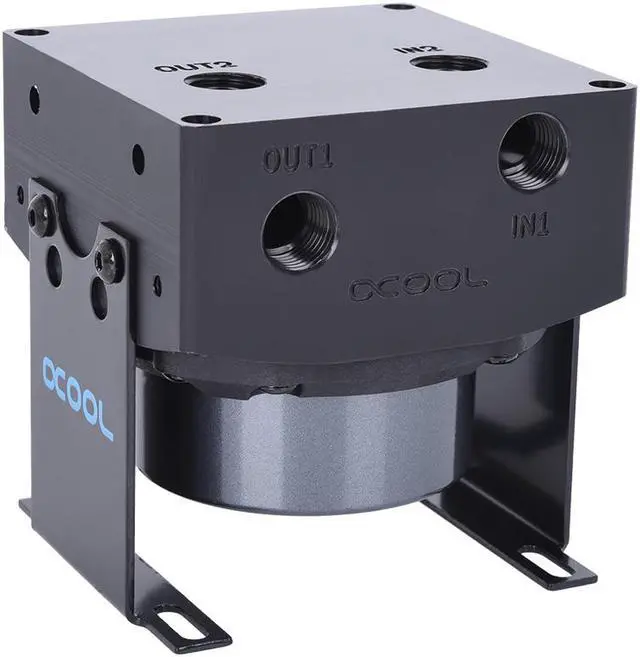

Eisdecke Technical Specifications

Dimensions: 80 x 80 x 40mm

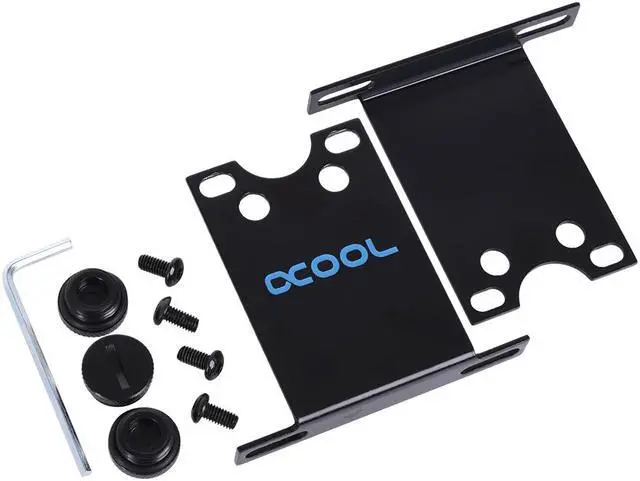

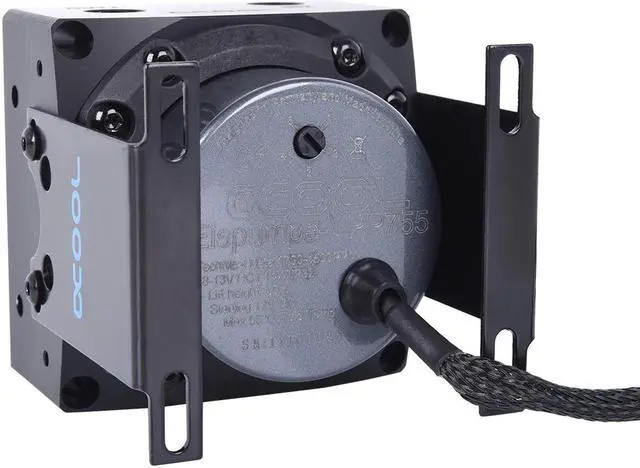

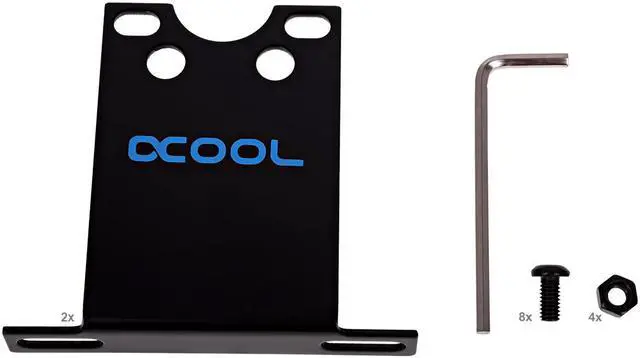

Dimensions with stands: 83 x 80 x 87mm
Material: acetal
Connections: 5x 1/4" threads

Scope of Delivery

1x Alphacool Eispump VPP755 - G1/4 IT incl. Eisdecke D5 - Acetal V. 3

CAUTION
Removing the impeller from the ceramic shaft will cause the upper ceramic clamping ring to over-expand, which will destroy it! Removal will void the pump’ s warranty!

If the pump is put together again and put back into operation, the clamping ring will loosen, which is not accepted as grounds for a return or exchange...

Notice:
Attention: The manufacturer Mayhems advises that Mayhems fluids, especially the Aurora line of products, have been manufactured and distributed solely for show and modding purposes. These should not be utilized in the system for more than 14 days.

We would also like to advise that Mayhems fluids can damage water cooling products, and using Mayhems fluids can thereby void the warranties offered by the following manufacturers: Koolance, Phobya, Alphacool, Aqua Computer, Watercool.

Damages such as: clogging, corrosion of aluminium radiators, deterioration of glued containers, etc., are a consequence of the use of Mayhems, but will not be reimbursed by Mayhems. Use is therefore at one’ s own risk.

Model: 13305
