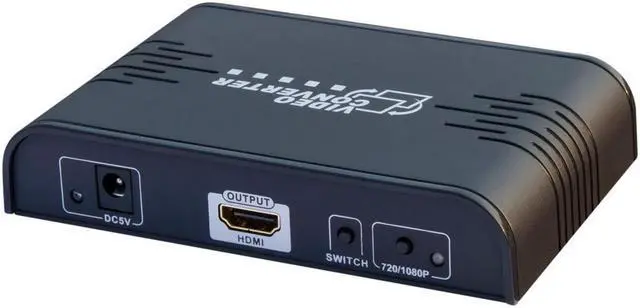

LKV363A The New Composite / S-Video + Stereo Audio to HDMI 1080P Converter
- 1. Convert analog audio and video signals into a single HDMI output for use with HD displays
- 2. Up-scales Composite Video or S-Video up to full HD 1080p;
- 3. HDMI output is optional at 720P 50Hz/60Hz (LED: red )or 1080P 50Hz/60Hz;(LED:Green)
- 4. Composite Video ,HDMI and S-video can stay simultaneous connection, and to be selected as the input source by the switch button
- 5. Composite Vide and S-Video Share the same audio input
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LKV363A AV/S-VIDEO to HDMI converter converts CVBS/S-Video and Audio(L/R) to HDMI output to improve the picture and audio quality by Color eye technology. Lenkeng Color eye technology will choose best solution from hundreds of thousands of color assortment to make the output quality much more vivid.
Features: 1. Convert analog audio and video signals into a single HDMI output for use with HD displays2. Up-scales Composite Video or S-Video up to full HD 1080p; 3. HDMI output is optional at 720P 50Hz/60Hz (LED: red )or 1080P 50Hz/60Hz; (LED: Green)4. Composite Video, HDMI and S-video can stay simultaneous connection, and to be selected as the input source by the switch button5. Composite Vide and S-Video Share the same audio input6. Supports OSD (One Screen Display)
OSD information display as below: S-video (Source) 1080P 50Hz/60Hz (Output Resolutions) 7.
Supports HDMI input resolution: 480p@60Hz, 480i@60Hz, 576i@50Hz 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60HzSupports
HDMI graphic card resolution: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz8. Supports 50Hz to 60Hz frame rate conversion9. Automatic NTSC/PAL video format detection10. Settings of input signal and output resolution are auto-stored when powered on and off11.

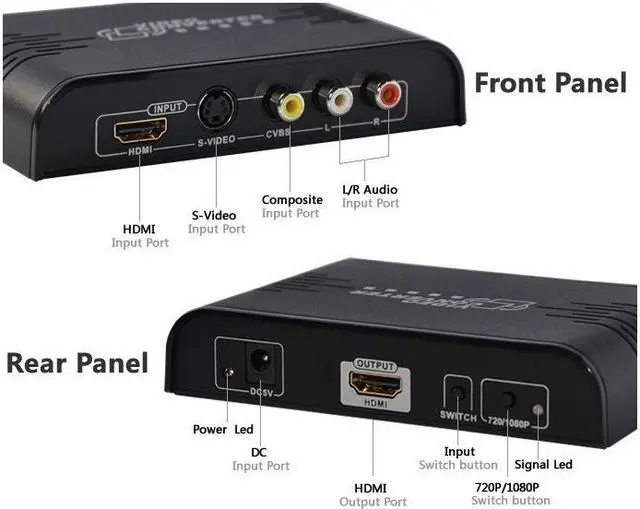

Input ports include: 1 x Composite Video; 1 x S-Video, 1 x Analog Audio 1 x HDMI12.
Output ports include: 1 x HDMI13.

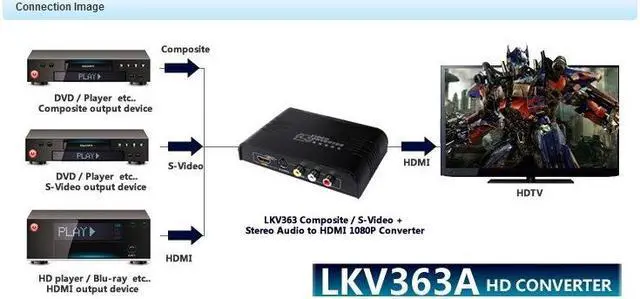

Power Supply: 1x 5V/2A Connection Image
Features: 1. Convert analog audio and video signals into a single HDMI output for use with HD displays2. Up-scales Composite Video or S-Video up to full HD 1080p; 3. HDMI output is optional at 720P 50Hz/60Hz (LED: red )or 1080P 50Hz/60Hz; (LED: Green)4. Composite Video, HDMI and S-video can stay simultaneous connection, and to be selected as the input source by the switch button5. Composite Vide and S-Video Share the same audio input6. Supports OSD (One Screen Display)
OSD information display as below: S-video (Source) 1080P 50Hz/60Hz (Output Resolutions) 7.
Supports HDMI input resolution: 480p@60Hz, 480i@60Hz, 576i@50Hz 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60HzSupports
HDMI graphic card resolution: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz8. Supports 50Hz to 60Hz frame rate conversion9. Automatic NTSC/PAL video format detection10. Settings of input signal and output resolution are auto-stored when powered on and off11.
Input ports include: 1 x Composite Video; 1 x S-Video, 1 x Analog Audio 1 x HDMI12.
Output ports include: 1 x HDMI13.
Power Supply: 1x 5V/2A Connection Image
