Specifications: HDMI
version: HDMI 1.4; HDCP 1.4
Video resolution: 3840 * 2160 @ 30HZ
Maximum pixel clock: 340MHz
Maximum data rate: 10Gbps

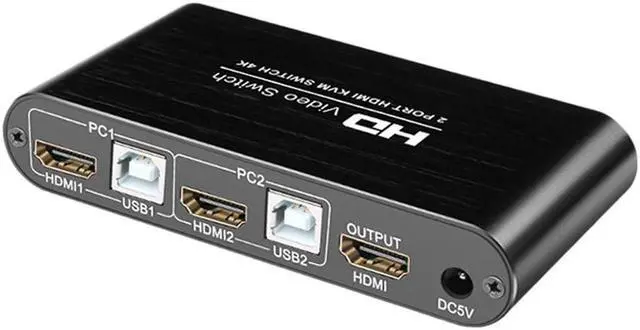

Video interface: HDMI female
Impedance: 100
Support wire length: <5M
USB interface version: USB 2.0
Computer interface: USB-B
Keyboard and mouse interface: USB-A
Power supply: USB Power
Power consumption: MAX 2W
Temperature:
operating: -5 ~ + 70
Humidity:
operating: 5% ~ 90%

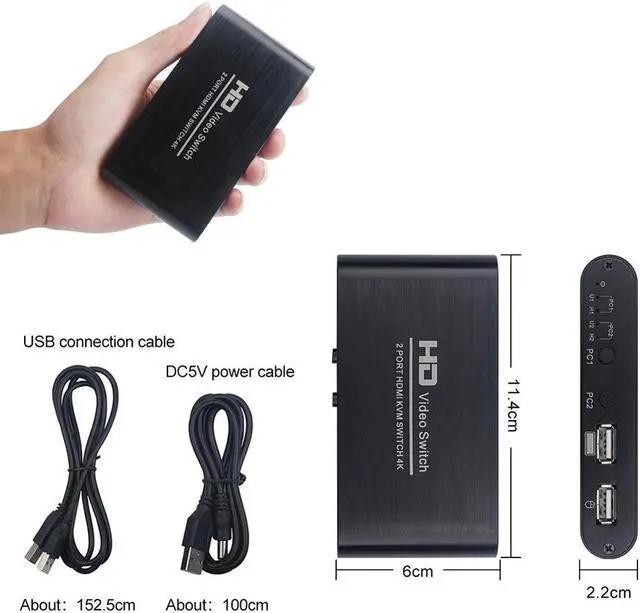

Size: about 100 * 60 * 20mm/ 3.94 * 2.36 * 0.79 in

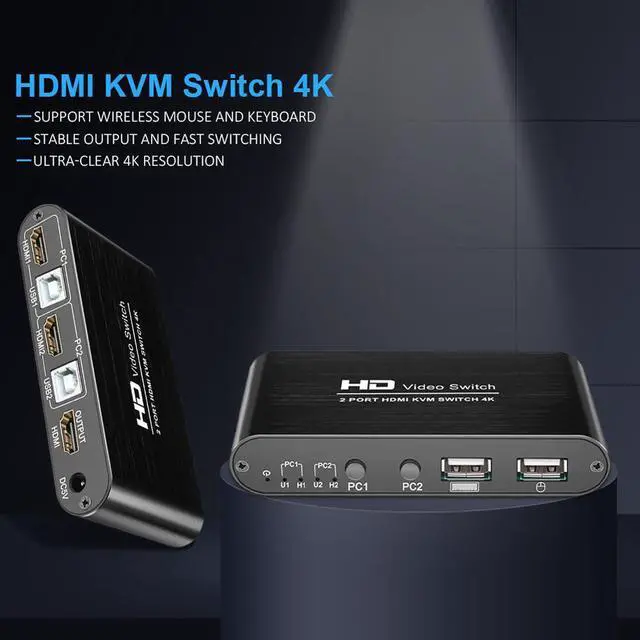

Description: 1.

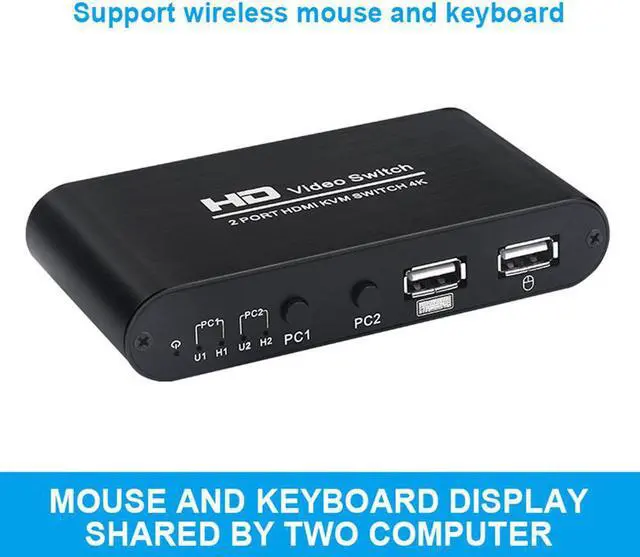

Wide Functions: The switcher supports wireless mouse keyboard and the two computers share mouse and keyboard display. 2.
Low Power Consumption: The switching chip for AX68002 features high performance and low power consumption. There is no power required and the switcher fully supports hot plug.
3.7 *24 Hours Work: The switcher has an ultra-clear 4K resolution for lower heat dissipation and more stable signal that supports 7 * 24 hours work. 4.

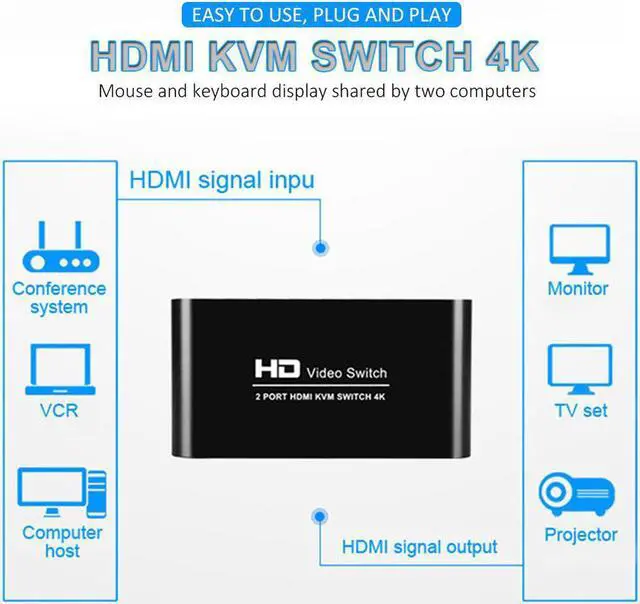

Easy to Use: Plug and play, decode using pure hardware technology. No driver required for easy and fast to use. 5.
High-definition Switching: The stable output for fast switching. The two monitors share a monitor and a pair of mouse and keyboard. The switcher features high-definition switching with up to 4K * 2K for stable signal with no power required.
