RTL9210B Chipset to NVME M-key M.2 NGFF SATA SSD PCBA Case Combo Type-C & USB3.0 2280 / 2260 / 2242 /2230 mm Adapter

Package:Yes
Model Number:UC-057-2280MM
USB Type:USB 3.1 Type-C
Use:Mobile Storage
Origin:Mainland China
Certification:CE

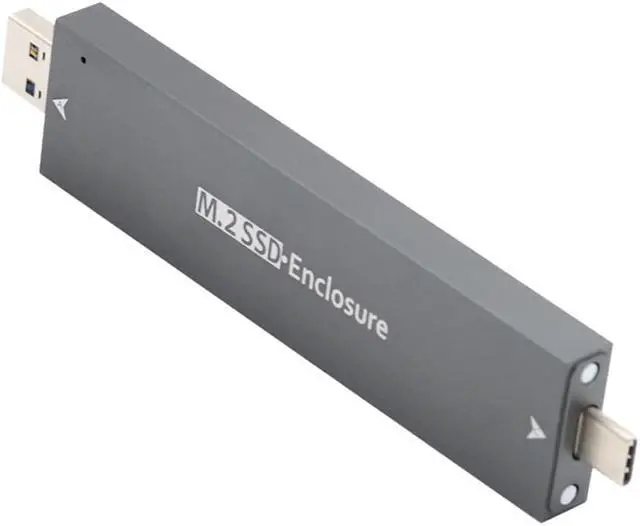

Combo Type-C & USB3.0 to NVME M-key M.2 NGFF SATA SSD PCBA Case
2280 / 2260 / 2242 / 2230 mm
RTL9210B Chipset

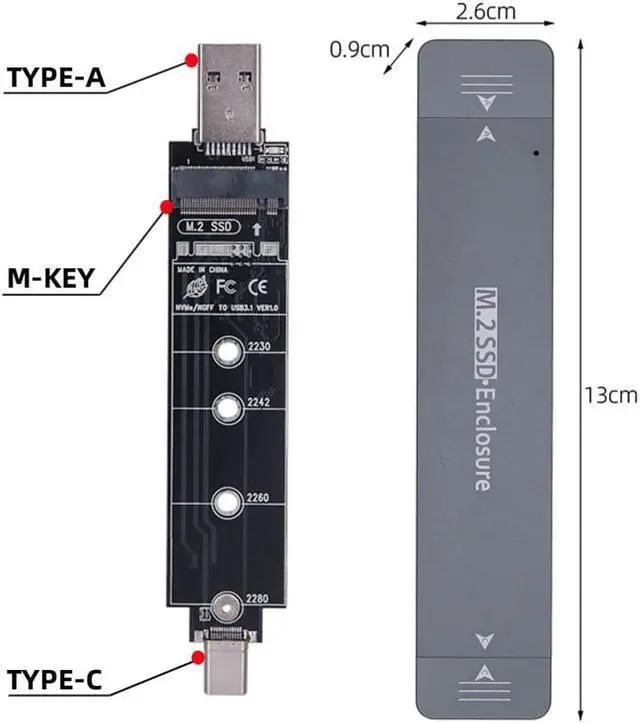

The item included one PCBA (RTL9210B Chipset) and Case. (Type-A and Type-C connector included.)
The RTL9210B chipset is a USB  bridge that combines a USB device with both a PCIe controller and a SATA controller.
Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode.
In USB-to-PCIe mode, the RTL9210B supports PCIe Gen3 x2. For PCIe, it provides up to 10Gbps bandwidth.
The PCIe host supports NVM Express.
In USB-to-SATA mode, the RTL9210B supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth.
It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode.
Fit 2280 / 2260 / 2242 / 2230MM NGFF / NVME M.2 SSD.
(The NGFF SSD is not included)
