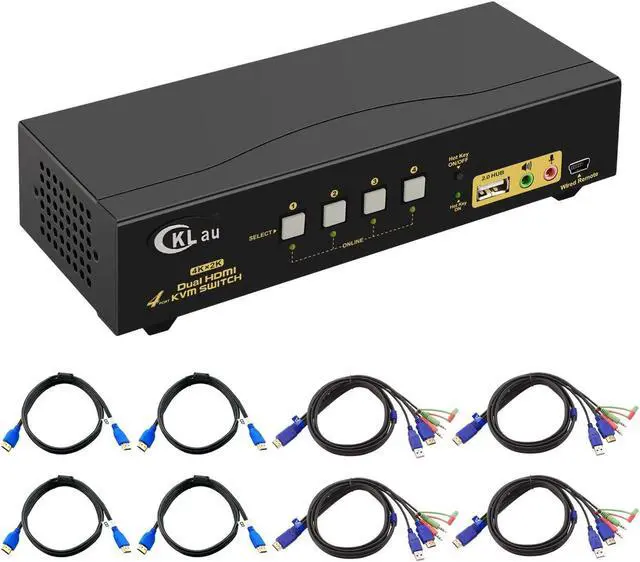

HDMI KVM Switch 4 Port Dual Monitor Extended Display, CKL Dual View 4 in 2 out PC Monitor Keyboard Mouse Selector Box with Audio Microphone Output and USB 2.0 Hub, 4K@30Hz
- [4 PORT KVM SWITCH HDMI DUAL MONITOR]: Consoles control up to 4 computers or HDMI devices with 1 independent set of USB keyboard, mouse and 2 monitors extended/duplicated display with dual head input.
- [USB HDMI KVM WITH WIDE COMPATIBILITY] Support Multiple Operation Systems & Devices: Fully compatible with Windows 10/7/2000/XP/ and Mac; also support HDMI devices like webcam, hard disk player, game console, DVR etc.
- [HDMI SWITCH BOX WITH COMVENIENT SWITCH MODES]: 1. Hot key switching on keyboards that support all operation system; 2. Switch via Mouse Click (Industry Leading Technology); 3. Toggle selection on front panel; 4. Auto scan switch with adjustable interval (8-999 second).
- [DRIVER FREE KVM HDMI SWITCH WITH USB 2.0 HUB] Plug and play with no driver needed: include all cables and DC 5V power adapter, with extra USB 2.0 port
- [4K HDMI KVM SUPPORT AUDIO MIC. AND AUTO EDID]Enjoy high resolution with auto EDID and Audio Support: supports 4K@30Hz high quality pictures.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

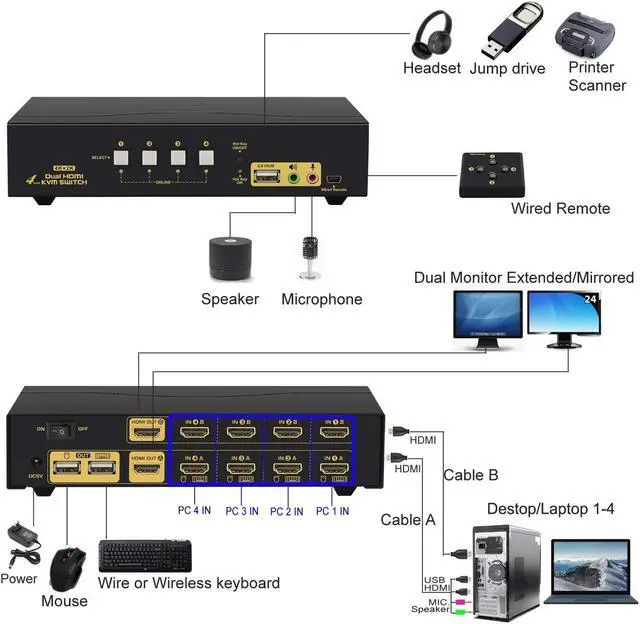

Dual-View KVM Switch HDMI 4 Port is designed to control up to 4 multi-graphics card or dual-output computers, laptops and other applicable devices.
Dual monitor display requires dual video connections from each computer to the KVM Switch.

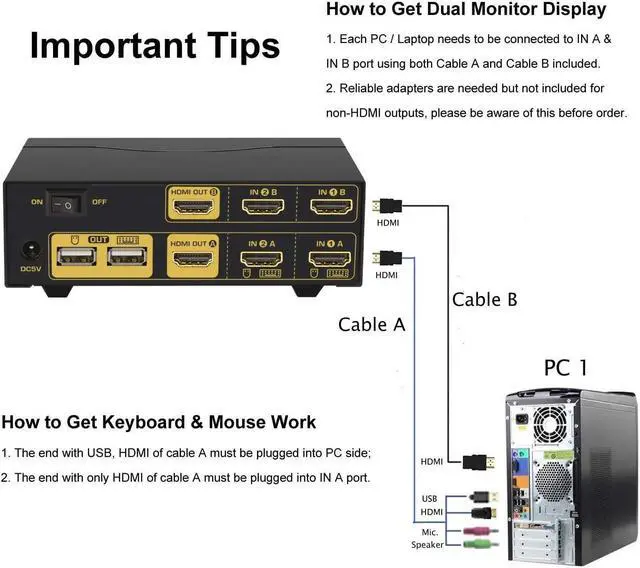

How to Get Dual Monitor Display (Important Please Read!!! ):
Connect both Cable A and Cable B from your computer to the switch, and set your computer display mode as Extended or Duplicated.
Scenario 1: Computer with 2 HDMI Out:
No adapter needed except any adapter needed for monitor
Scenario 2: Computer with HDMI + VGA / DVI / DisplayPort or other combination
Need standard VGA / DVI / DP to HDMI adapter, VGA to HDMI adapter needs to have built-in chips and power supply
Scenario 3: Laptop like MacBook Pro with only USB Type C output
Need reliable USB C docking HUB
How to Get Keyboard Mouse Work:
Make sure the end with USB of Cable A is connected to your computer side.
Standard Wired Keyboard and Mouse: Plug in the USB mouse and keyboard port at back panel;
Wireless Keyboard and Mouse: Plug the USB dongle into the USB Keyboard Port.
Gaming,
Optical,
Mechanical Keyboard and Mouse: Plug into the USB 2.0 HUB on front panel (hotkey or mouse switching is not supported for this connection).

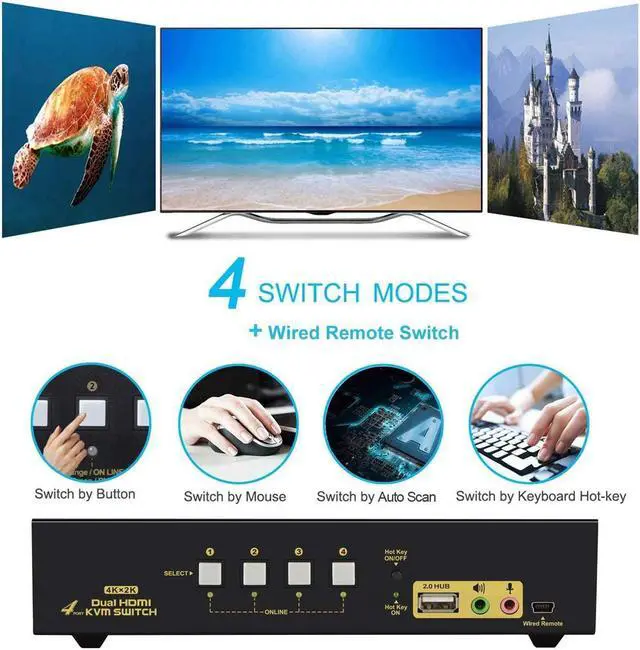

How to Switch:
1.
Keyboard Hotkey: twice right Ctrl +Port Number+Enter
2.
Mouse Click: Double Click the middle roller of mouse then click left or right
3. Push Button on front panel
4. Auto Scan with adjustable interval time of 8-999 seconds

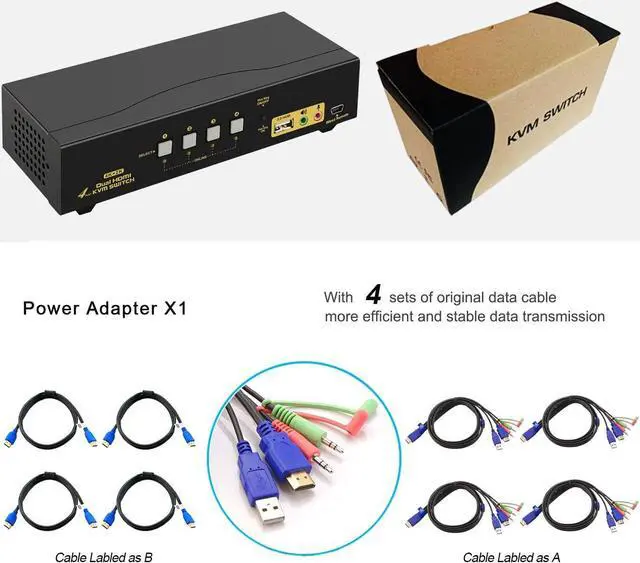

Whats in the Box:
1* 4 Port Dual KVM HDMI
4* Integrated KVM cable 4.92 Ft (marked as A for connecting to input A on the switch)
4* Standard HDMI Cable 4.92 Ft (Marked as B for connecting to input B on the switch)
1* User Manual in English
1* DC 5V Power Adapter
Dual monitor display requires dual video connections from each computer to the KVM Switch.
How to Get Dual Monitor Display (Important Please Read!!! ):
Connect both Cable A and Cable B from your computer to the switch, and set your computer display mode as Extended or Duplicated.
Scenario 1: Computer with 2 HDMI Out:
No adapter needed except any adapter needed for monitor
Scenario 2: Computer with HDMI + VGA / DVI / DisplayPort or other combination
Need standard VGA / DVI / DP to HDMI adapter, VGA to HDMI adapter needs to have built-in chips and power supply
Scenario 3: Laptop like MacBook Pro with only USB Type C output
Need reliable USB C docking HUB
How to Get Keyboard Mouse Work:
Make sure the end with USB of Cable A is connected to your computer side.
Standard Wired Keyboard and Mouse: Plug in the USB mouse and keyboard port at back panel;
Wireless Keyboard and Mouse: Plug the USB dongle into the USB Keyboard Port.
Gaming,
Optical,
Mechanical Keyboard and Mouse: Plug into the USB 2.0 HUB on front panel (hotkey or mouse switching is not supported for this connection).
How to Switch:
1.
Keyboard Hotkey: twice right Ctrl +Port Number+Enter
2.
Mouse Click: Double Click the middle roller of mouse then click left or right
3. Push Button on front panel
4. Auto Scan with adjustable interval time of 8-999 seconds
Whats in the Box:
1* 4 Port Dual KVM HDMI
4* Integrated KVM cable 4.92 Ft (marked as A for connecting to input A on the switch)
4* Standard HDMI Cable 4.92 Ft (Marked as B for connecting to input B on the switch)
1* User Manual in English
1* DC 5V Power Adapter
