8K @60Hz HDR UHD HDMI 2.1 Matrix, HDR 4K 120Hz HDMI True Matrix 4x2 48Gbps ARC 8K 60Hz Splitter Switcher Switch 4 in 2 out HDMI2.1 Audio extractor
- 8K HDR HDMI True Matrix switcher switching any one of the four HDMI inputs to either one of the two outputs easily by remote control or buttons on the product panel
- Supports HDMI 2.1 version, resolution up to 4k 120HZ and supports Dolby vision & HDR. Compatible with lower HDMI version also
- With audio extractor. Extract audio from HDMI outputs and output to optical audio and L/R audio
- Supports ARC. Return TVs audio to optical audio port where the TVs HDMI ports is ARC enabled
- Use premium 8K HDMI cables only, and if you do not get the perfect quality, please use shorter cables
- Supports audio independent EDID: choices for 5.1ch, 2.1ch and pass
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:

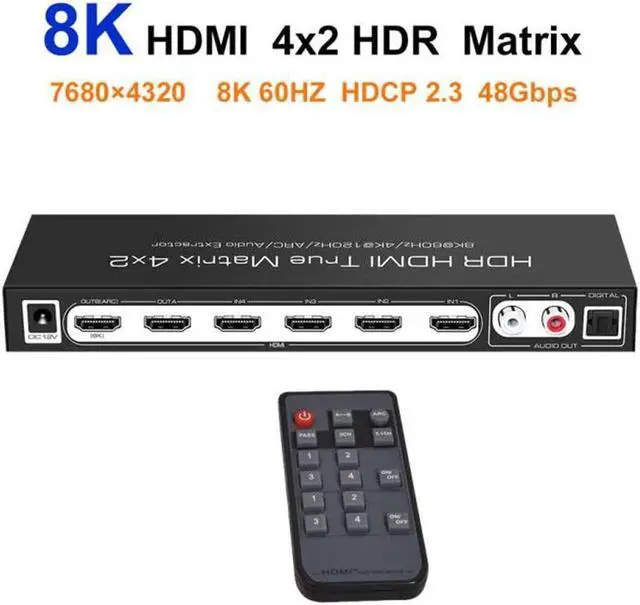

HDMI 2.1 Matrix 4 in 2 out
With built-in latest HDMI 2.1 video processing chip, the HDMI 4x2 matrix can support up to 8K@60Hz or 4K@120Hz video in and out.

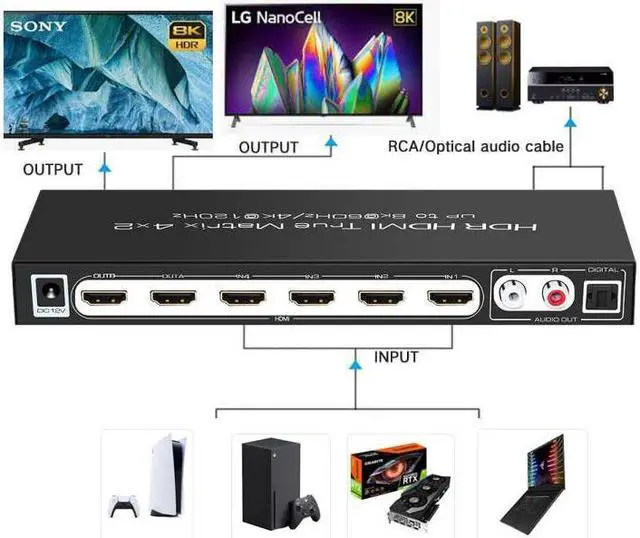

HDMI 2.1 Matrix-Matrix mode
The 4K 120Hz HDMI 4 in 2 out Matrix supports HDMI True Matrix mode. That means you can select any of the connected 4 video source for the output A and output B.

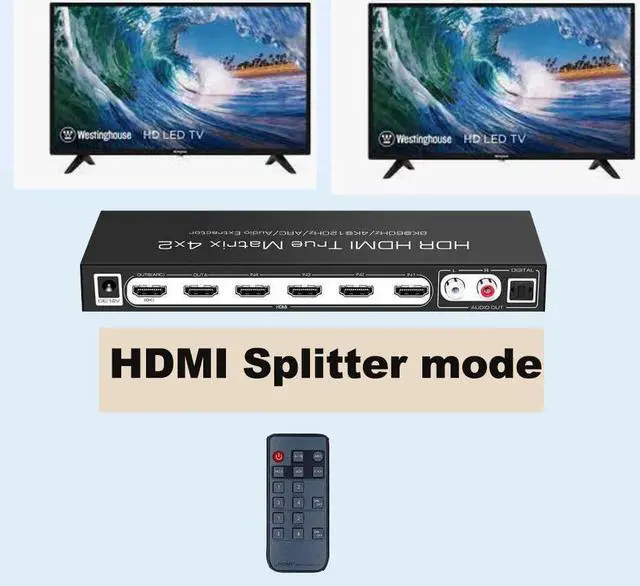

HDMI 4K 120Hz matrix-Splitter mode
The 4K 120HZ HDMI Matrix also supports HDMI Splitter mode.. It can work as a normal HDMI splitter and you can select the same video source for output A and output B.
HDMI 2.1 Audio extractor
The 8K HDMI Matrix switch splitter 4X2 supports audio extraction functions. It can extracts audio from the selected HDMI video source.
HDMI 2.1 ARC converter
The HDMI 2.1 Matrix's output A port supports ARC functions. You can connect the ARC port on your HDTV to this port and send audio to your speaker system.
SPECIFICATIONS:
Model name: 8K HDR HDMI True Matrix 4x2
Input ports: HDMIX4
Output ports: HDMIX2; RCAX2, Optical X1 (Only for HDMX0016M1)
Video format: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz, Support HDR/Dolby Vision
Deep color: 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1200MHz Max.
Transmission rate: 40 Gbps Max.
IR distance: 5m
Input cable length: 2160P/AWG 26 5m; 1080P/AWG 26 10m
Output cable length: 2160P/AWG 26 5m; 1080P/AWG 26 12m
Power adapter specification: Input: AC 100~240V Output: DC 12V/ 1.5A
Max working current: 500mA
Size: 250x75x30 (mm)
Weight: 440g

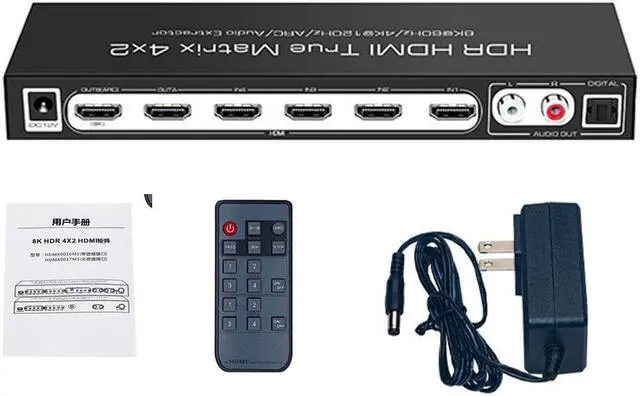

Package Includes:
HDMI 2.1 Matrix X1
Power adapter X1
Remote control X1 (No battery)
User manual X1
HDMI 2.1 Matrix 4 in 2 out
With built-in latest HDMI 2.1 video processing chip, the HDMI 4x2 matrix can support up to 8K@60Hz or 4K@120Hz video in and out.
HDMI 2.1 Matrix-Matrix mode
The 4K 120Hz HDMI 4 in 2 out Matrix supports HDMI True Matrix mode. That means you can select any of the connected 4 video source for the output A and output B.
HDMI 4K 120Hz matrix-Splitter mode
The 4K 120HZ HDMI Matrix also supports HDMI Splitter mode.. It can work as a normal HDMI splitter and you can select the same video source for output A and output B.
HDMI 2.1 Audio extractor
The 8K HDMI Matrix switch splitter 4X2 supports audio extraction functions. It can extracts audio from the selected HDMI video source.
HDMI 2.1 ARC converter
The HDMI 2.1 Matrix's output A port supports ARC functions. You can connect the ARC port on your HDTV to this port and send audio to your speaker system.
SPECIFICATIONS:
Model name: 8K HDR HDMI True Matrix 4x2
Input ports: HDMIX4
Output ports: HDMIX2; RCAX2, Optical X1 (Only for HDMX0016M1)
Video format: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz, Support HDR/Dolby Vision
Deep color: 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1200MHz Max.
Transmission rate: 40 Gbps Max.
IR distance: 5m
Input cable length: 2160P/AWG 26 5m; 1080P/AWG 26 10m
Output cable length: 2160P/AWG 26 5m; 1080P/AWG 26 12m
Power adapter specification: Input: AC 100~240V Output: DC 12V/ 1.5A
Max working current: 500mA
Size: 250x75x30 (mm)
Weight: 440g
Package Includes:
HDMI 2.1 Matrix X1
Power adapter X1
Remote control X1 (No battery)
User manual X1
