4K HDMI Audio Extractor Splitter, HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function

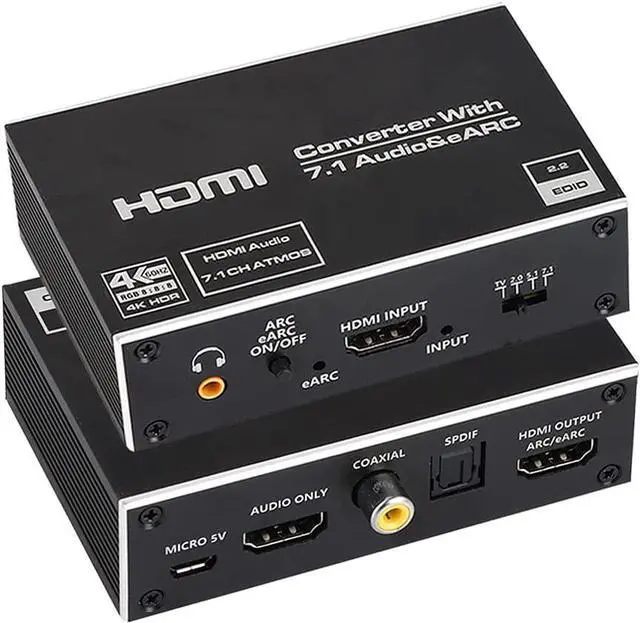

4K HDMI Audio Extractor
4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5 mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range ) pass-through and eARC/ARC Function.

Specification
Power Supply: DC 5v/ 1000mA.

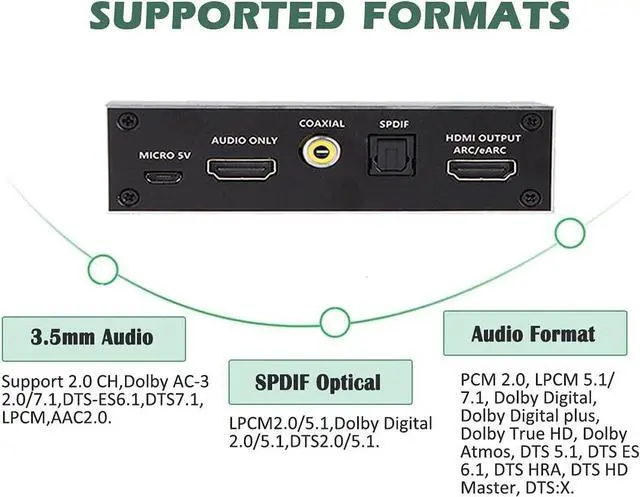

HDMI Audio Only Port: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.
Toslink SPDIF: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1.
Coaxial Output: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1.
3.5 mm Audio Jack: Analog stereo 2.0 ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz); 8-bit (4K x 2k@60Hz
RGB 8:8: 8/
YUV 4:4: 4); 8-bit, 10-bit, 12-bit (4K x 2K@60Hz
YCbCr 4:2: 2
/ 4:2: 0).

Feature
Support 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0 / 5.1 / 7.1 audio format.
HDMI Audio Formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.

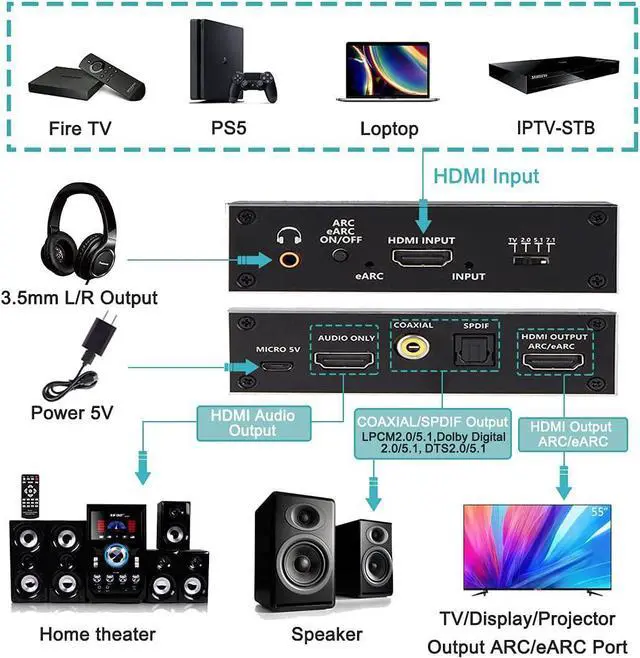

HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5 mm/
Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices
