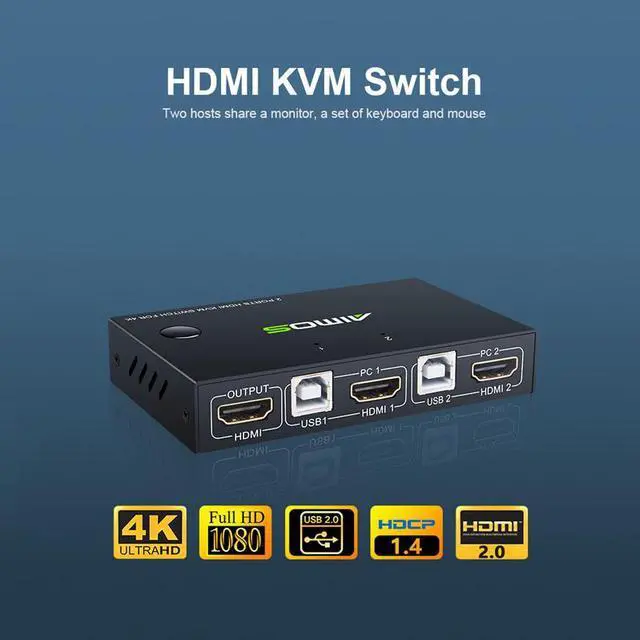

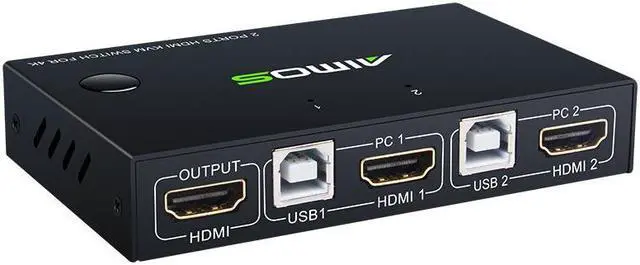

HDMI KVM Switcher 4K@30Hz 2 In 1 Out KVM Switcher Keyboard Mouse USB Shared Display Synchronization Controller USB KVM Switch

HDMI KVM Switcher 4K@30Hz 2 In 1 Out KVM Switcher Keyboard Mouse USB Shared Display Synchronization Controller USB KVM Switch



Description:

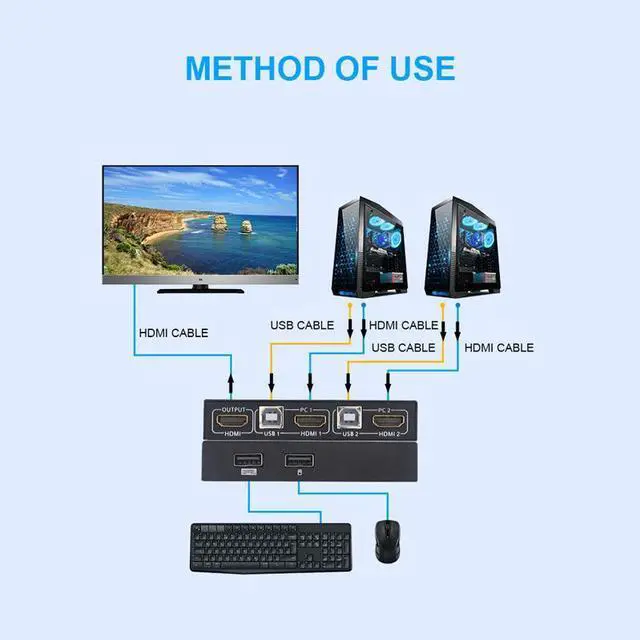

This KVM switcher allows you to control 2 host devices, such as computers, PS4, PS3, Xbox one, TV box.It can achieve 2 groups of high-definition video source and USB interface switch freely, adaptive EDID/HDCP decryption, can adapt to a variety of complex application environments.The equipment has excellent image processing and transmission capacity,make the output signal more smooth and steady.It is a reliable,high performance and efficient way of HDMI USB switch.And it can switch freely by hotkey.Suitable for office,computer romm,monitoring host,etc.



Features:

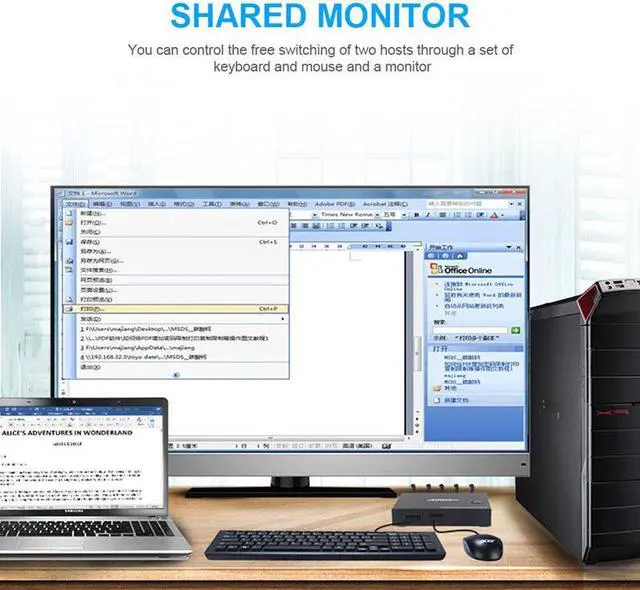

Only using 1 set of mouse and keyboard to control two devices, which is saving space, costs and increasing PC management efficiency.

Support 2 routes of high-definition video source and USB interface implementation switch freely.

2 In 1 out HDMI KVM switcher is compatible with HDMI 1.4 and HDCP 1.4, supports resolution up to 4K@30Hz. With this HDMI switcher, you can enjoy the most luxurious video and audio.

HDMI 2 ports KVM switcher adaptive EDID/HDCP decryption,can adapt to a variety of complex application environment.

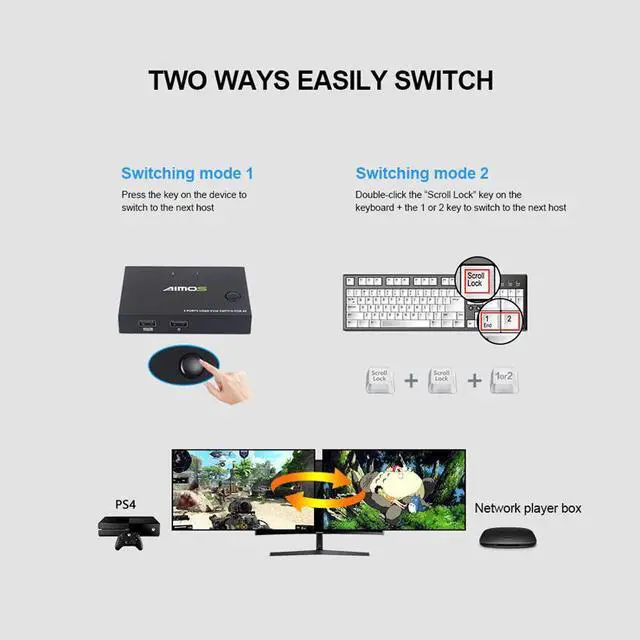

It can be switched by device button and keyboard,which is convenient and quick.

HDCP 1.4 standard-High-bandwidth digital content protection technology.

High compatibility,can auto-match source and display device.USB devices that can be connected such as: USB mouse, keyboard, printer, camera, etc.

Supports Windows10 / 8.1 / 8 / 7 / XP / Vista, Mac OS, Linux, Chrome OS.

Built-in automatic adjustment system,which makes the image smooth,clear and stable.

Built-in ESD protection system.

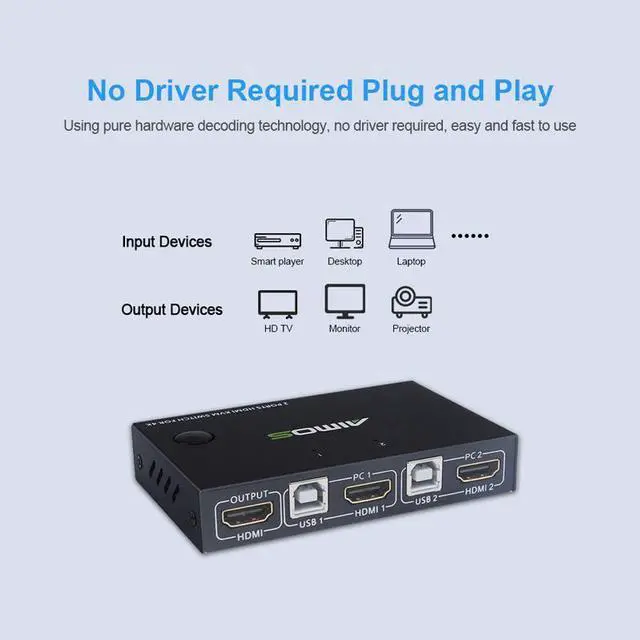

Easy to install,plug and play.



Specification:



Video

Standards:HDMI 1.4;HDCP 1.4

Maximum pixel clock:340MHz

Maximum data rate:10Gbps

Resolution range:Up to 4K×2K@30Hz,3D,1920*1080@60Hz

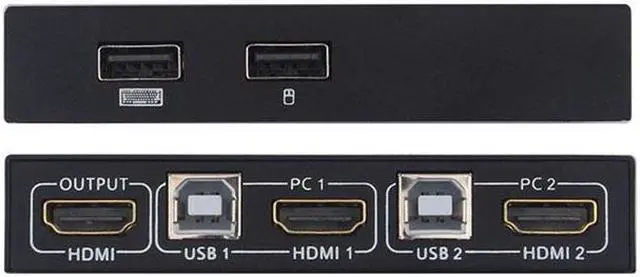

Connector:HDMI-A Interface

HDMI Cable Range:<5M(Resolution:1920*1080@60Hz)



USB

Interface protocols:USB2.0

PC input interface type:USB-B

Output interface type:USB-A



Other

Power supply:USB Power

Power dissipation:MAX 2W

Temperature:Operating:-5?-+70?

Humidity:Operating:5%-90%

Item size:10 * 6.4 * 1.9cm /3.94 * 2.52 * 0.75in(L * W * H)

Item weight: Approx.150g /5.29oz

Package size:21.5 * 15 * 5.5cm /8.46 * 5.91 * 2.17in(L * W * H)



Package Includes:

1 * HDMI KVM 2*1 SwitcherKEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB

2 * USB cableKEY_TAB

1 * User manualKEY_TAB KEY_TAB
