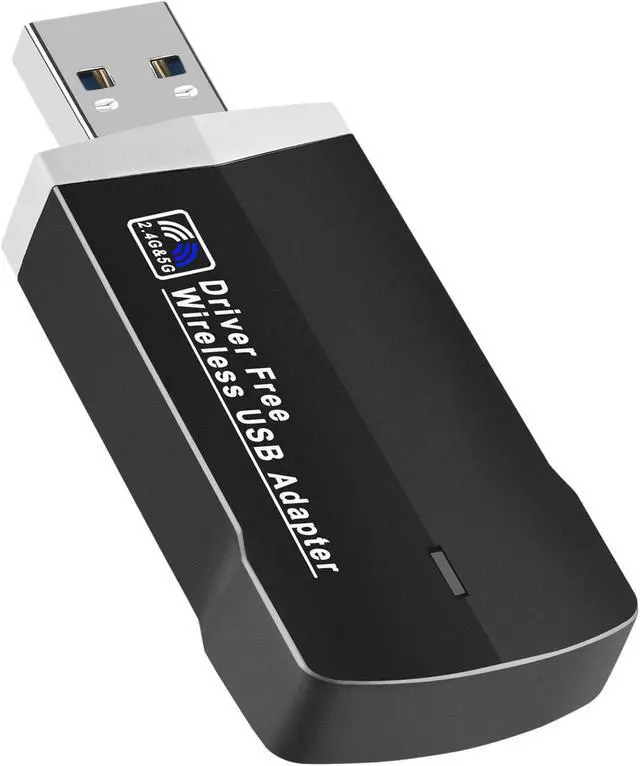

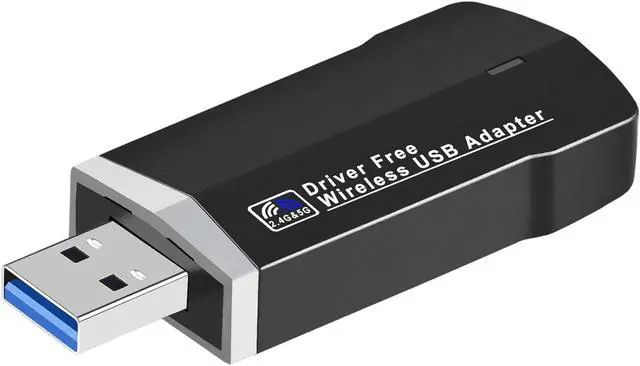

USB3.0 Dual Frequency USB Gigabit Wireless Network Card 2.4G/5.8G Dual Band Driver-free AC1300M WiFi Network Card

This is a 1300Mbps driver-free version of the wireless network card, which can do Plug & Play on the Windows operating system, no need to use CD to read drivers, and no need to search for drivers online.And since most computers do not have optical drives, the drive-free wireless network card perfectly solves the problem of not being able to read CD content.



Product description:

Support IEEE802.11ac standard protocol

Backward compatible with 802.11b/g/n wireless devices

AC1300M high-speed transmission, dual frequency optional (2.4GHz/5.8GHz)

Support WPA/WPA2/WEP/802.1X/WMM data encryption

Compatible with Windows XP/Vista/7/8/10/Win 11 multiple operating systems, plug and play

USB3.0 interface, stable and anti-interference



Product Specifications:

Main chip:MT7612U

Wireless Standard:IEEE802.11ac/a/n/g/b

Interface:USB 3.0

Antenna:Built-in antenna

Transmission distance:Indoor MAX: 50-100 meters (depending on the environment)

Operating frequency:2.412~2484GHz/5.15~5.825GHz (according to country area)

Transmit power

802.11b (CCK) 11Mbps: 18+/-1dBm

802.11g (OFDM) 54Mbps: 15+/-1dBm

802.11n(OFDM) 54Mbps: 15+/-1dBm

802.11ac (AC80) MCS9: 12+/-2dBm

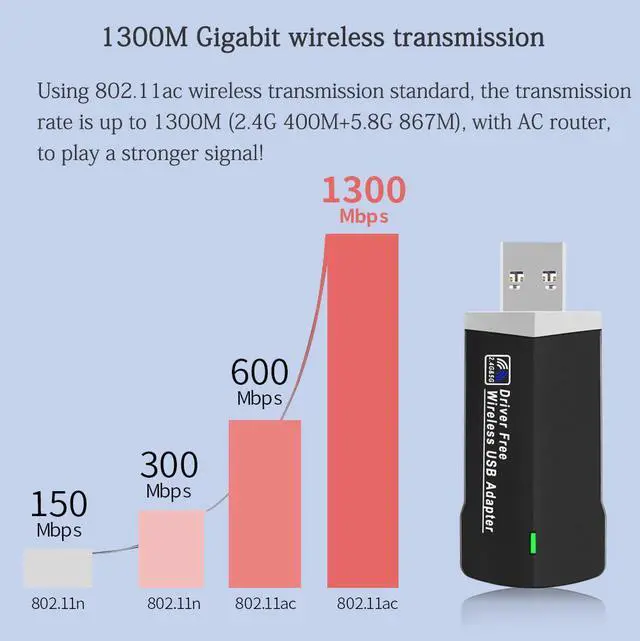

Wireless transmission rate 11b: Max 11Mbps, 11g: Max 54Mbps, 11n: Max 400Mbps, AC: Max 867Mbps



EVM

11b 11Mbps:<-15db

11g 54Mbps:<-27db

11ac MCS9:<-30db



Receive sensitivity

802.11b:-76+/-1dBm; 802.11g: -65+/-1dBm

802.11n (HT20), -70+/-1dBm; 802.11n (HT40), -65+/-1dBm

AC80-MCS9:-55+/-1dBm



Operating System:Windows XP/Vista/7/8/10/11

Wireless security support:WPA/WPA2/WEP/802.1X/WMM;

Size:63*25*10mm

Weight:38g
