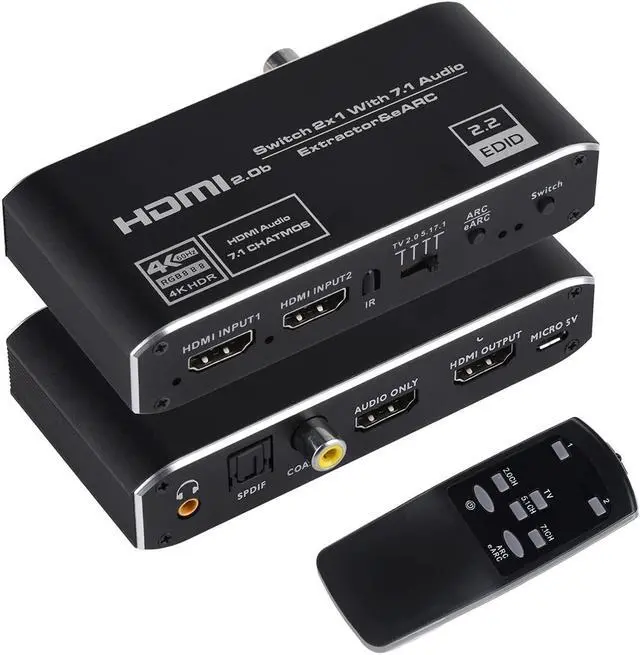

4K@60Hz eARC HDMI Audio Extractor, 2x1 HDMI Switch to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function HDMI2.0b
- [2x1 HDMI Switch With Audio Extractor] 4K HDMI 2.0 Audio Extractor at high performance. It has 2 HDMI Input and 1 HDMI output with audio Extract Function. Support ARC and eARC Function. The Extract Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port.
- [Support ARC and eARC Function] Extract the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC or eARC) Port to this Audio converter HDMI Output(ARC/eARC) Port, then connect to Amplifier or SoundBar.
- [High HDMI Input Resolution] Support Up to 4K@60Hz RGB 8:8:8. Color Space: RGB 8:8:8, Ycbcr 4:4:4/ 4:2:2/ 4:2:0. Color Deep: 8-bit, 10 bit, 12 bit(1080p@60HZ); 8-bit (4kx2k@60Hz RGB 8: 8: 8/YUV 4: 4: 4) 8-bit, 10-bit, 12-bit(4Kx2K@60HZ Ycbcr 4:2:2/4:2:0).
- [Compatibility]HDCP support 2.2/2.3, compatible with HDMI 2.0b. HDMI Input support: Computer, PS4, Xbox, Blu-ray DVD Player etc. HDMI Video Output support: Projectors, HDTVs, Monitor, etc with ARC/eARC Port. HDMI Audio Output support: Home theater.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI Audio Extractor, 2x1 HDMI Switch to HDMI + Optical Toslink SPDIF + 3.5 mm Audio Jack + Coaxial + 7.1C h HDMI Audio Support ARC and eARC Function
One HDMI input converted to one HDMI + Audio(SPDIF+R/L+ARC+Coaxial)Output to achieve the synchronization of audio signal separation.
Features
- Support 4K x 2K @60Hz, Support 3D.
- Support RGB 8:8: 8, YCbCr
4:4: 4/
4:2: 2/
4:2: 0.

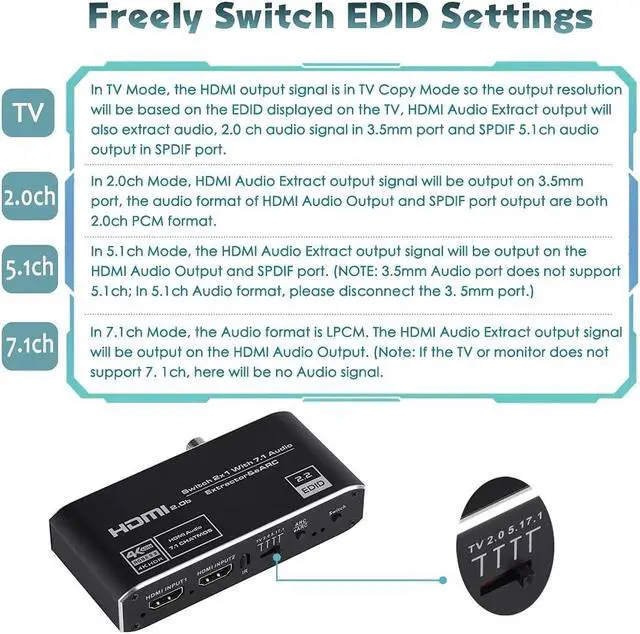

- 4 speed toggle switch to switch TV/ 2.0 / 5.1 / 7.1 audio format.

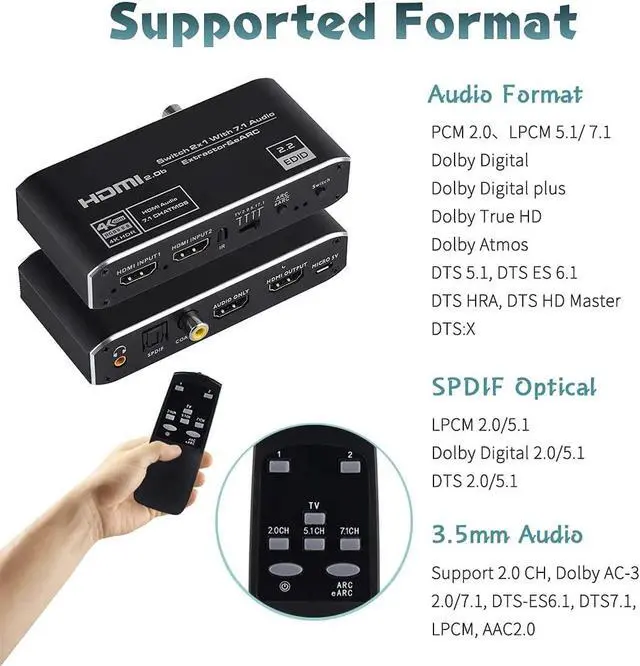

- HDMI Audio Formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.

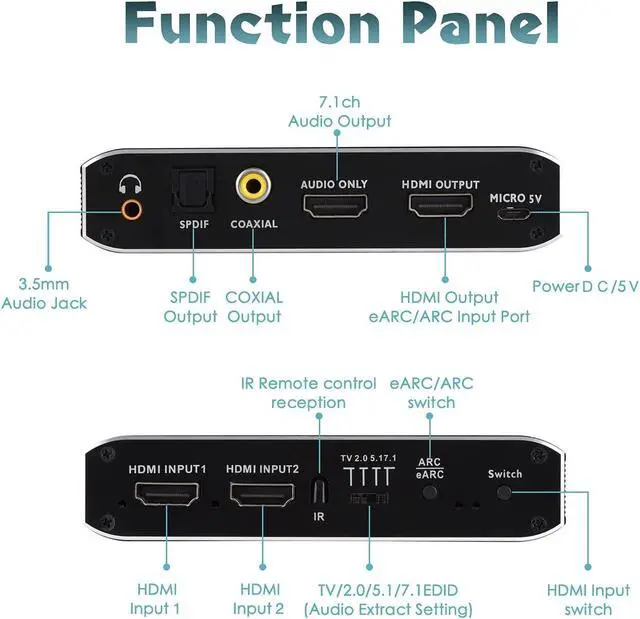

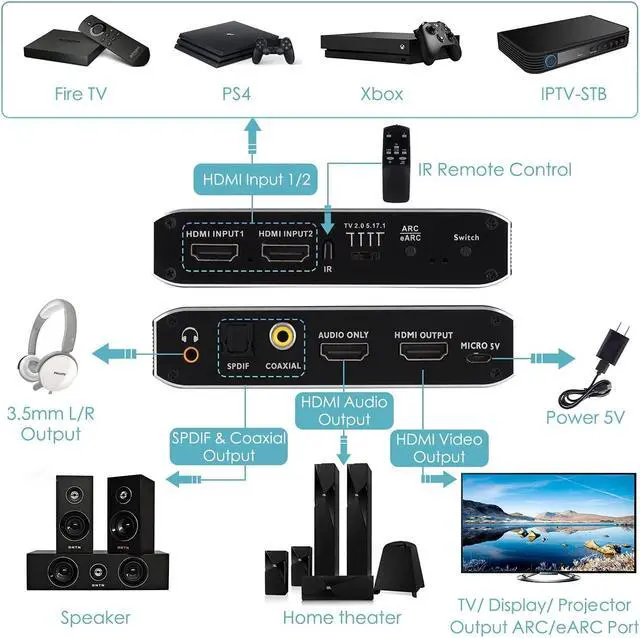

- HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF / 3.5 mm/
Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
- Power Supply: DC 5v/1000mA.
- HDMI Output ARC/eARC: TV eARC/ARC audio output port (connectto TV with ARC function).
- HDMI Audio Only Port: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.
- Toslink SPDIF: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1
- Coaxial Output: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1
- 3.5 mm Audio Jack: Analog stereo 2.0 ch
- Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz); 8-bit (4Kx2k@60Hz
RGB 8:8: 8/
YUV 4:4: 4); 8-bit, 10-bit, 12-bit (4Kx2K@60Hz
YCbCr 4:2: 2
/ 4:2: 0).

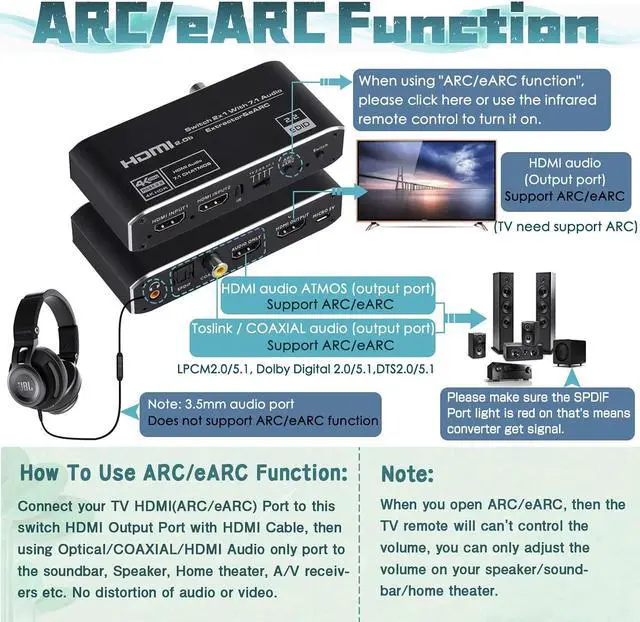

- Turn on/off the eARC function: Switch to "ON" position, the AUDIO ONLY port will output the eARC/ ARC audio; Switch toOFF" position, the AUDIO ONLY port will output the audio from HDMI IN port.
Package contents
1 x HDMI Switch Support eARC Extractor
1 x Power Adapter
1 x User Manual
One HDMI input converted to one HDMI + Audio(SPDIF+R/L+ARC+Coaxial)Output to achieve the synchronization of audio signal separation.
Features
- Support 4K x 2K @60Hz, Support 3D.
- Support RGB 8:8: 8, YCbCr
4:4: 4/
4:2: 2/
4:2: 0.
- 4 speed toggle switch to switch TV/ 2.0 / 5.1 / 7.1 audio format.
- HDMI Audio Formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.
- HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF / 3.5 mm/
Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Specifications
- Power Supply: DC 5v/1000mA.
- HDMI Output ARC/eARC: TV eARC/ARC audio output port (connectto TV with ARC function).
- HDMI Audio Only Port: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.
- Toslink SPDIF: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1
- Coaxial Output: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1
- 3.5 mm Audio Jack: Analog stereo 2.0 ch
- Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz); 8-bit (4Kx2k@60Hz
RGB 8:8: 8/
YUV 4:4: 4); 8-bit, 10-bit, 12-bit (4Kx2K@60Hz
YCbCr 4:2: 2
/ 4:2: 0).
- Turn on/off the eARC function: Switch to "ON" position, the AUDIO ONLY port will output the eARC/ ARC audio; Switch toOFF" position, the AUDIO ONLY port will output the audio from HDMI IN port.
Package contents
1 x HDMI Switch Support eARC Extractor
1 x Power Adapter
1 x User Manual
