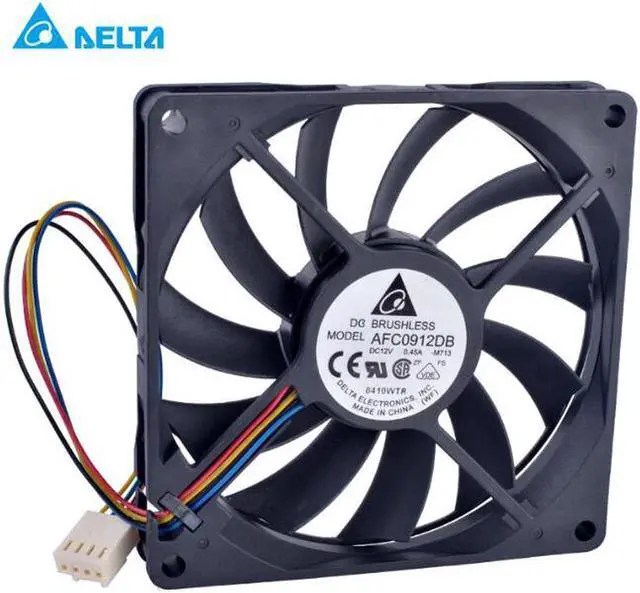

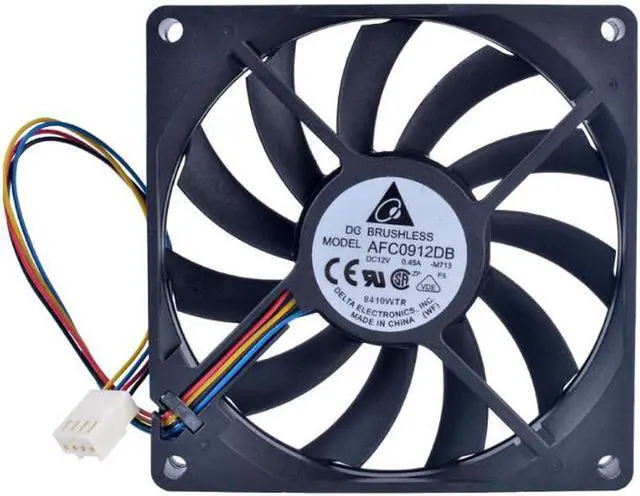

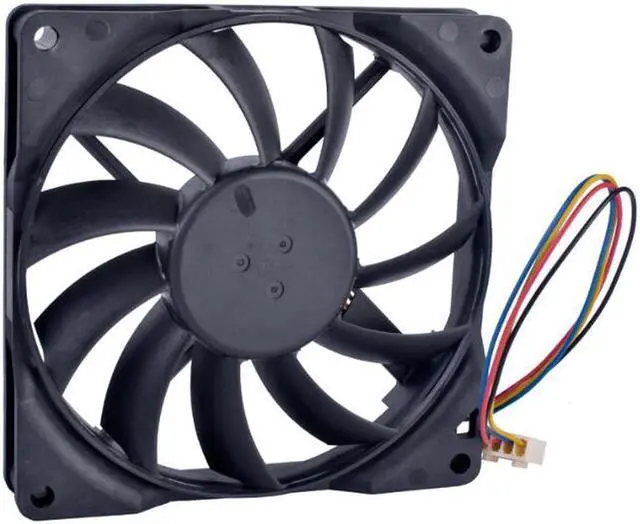

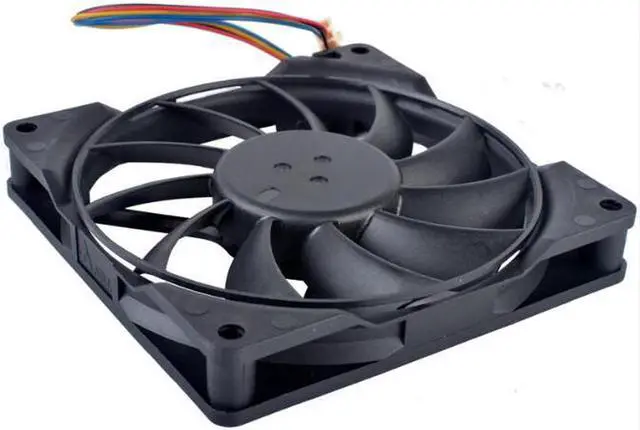

DELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fan
- Brand: Taiwan DELTA.
- Producer: Delta Electronics Public Co., Ltd.
- Model number: AFC0912DB
- Size: 92 x 92 x 15mm.
- (90MM 9015) Rated voltage: DC12V.
- Voltage range: DC 7.0 to 13.8V.
- Motor power: 0.45 a (nominal current) temperature sensing.
- Rated revolution: 3700rpm.
- Maximum air volume: 1.11 m³ 37.61
- CFM/min Noise indicator: 37.5 dB (A)
- Temperature range: -30... + 75 ° c.
- Bearing structure: no maintenance double ball bearing.
- Fan frame: injection molding, PBT+ 30% glass fiber +VO flame retardant.
- Wind blade: injection molding, PBT+ 30% glass fiber +VO flame retardant.
- Fan rotation: the direction of the fan blade is counterclockwise.
- Power supply range: plus or minus 15% of rated power supply.
- Insulation resistance: greater than 500 megohm.
- Working life: 100, 000 hours when the ambient temperature is 25.
+
+
