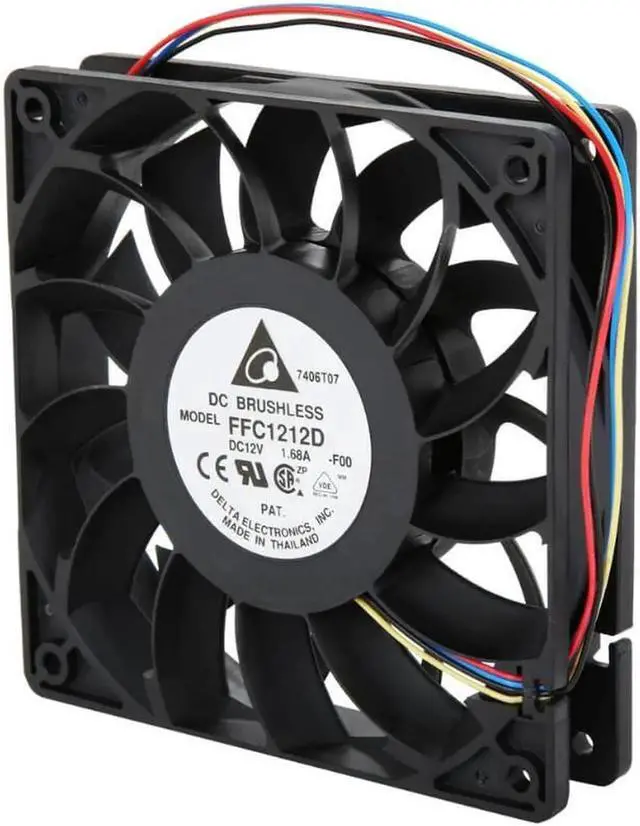

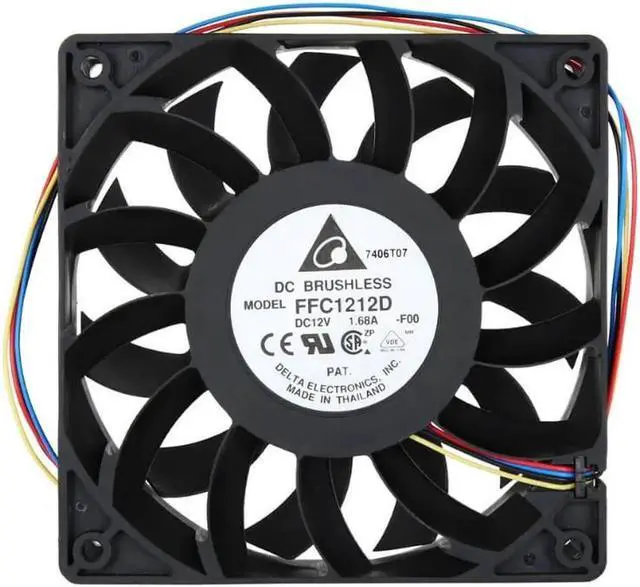

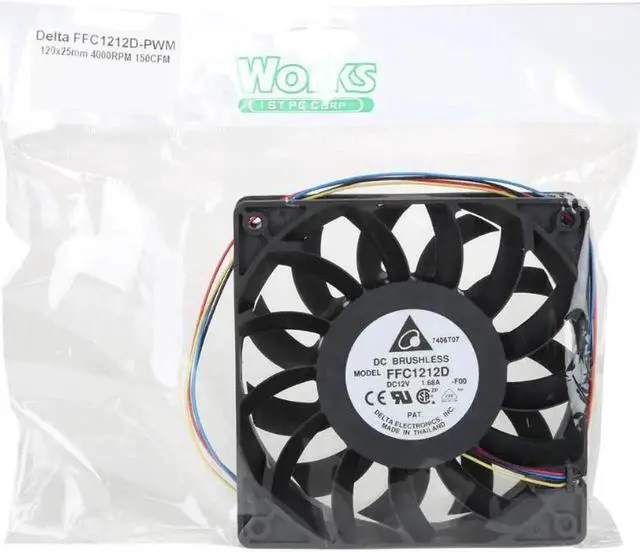

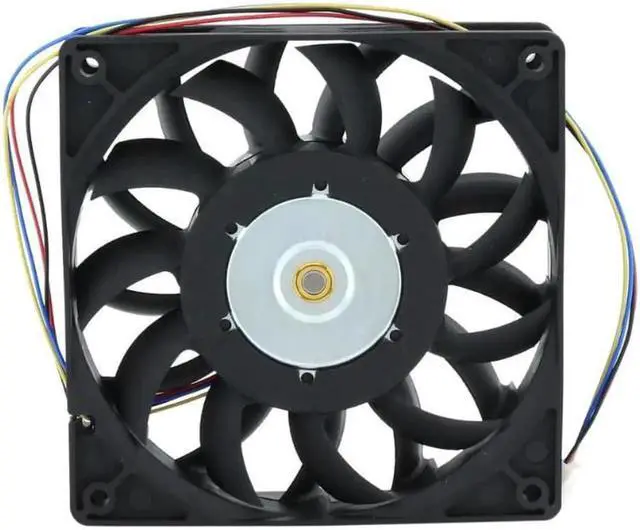

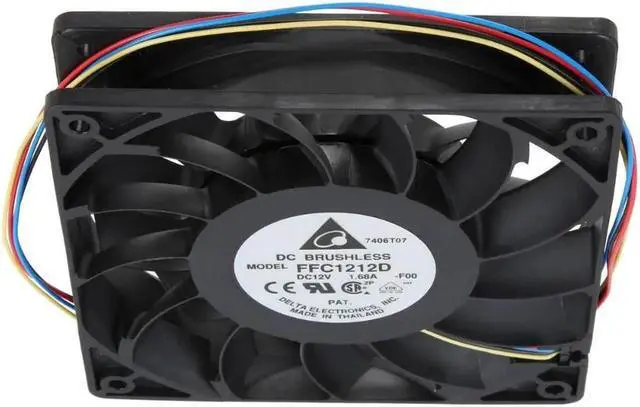

Delta FFC1212D-PWM High Quality Brushless DC Air Cooling Fan, 4000 RPM, 150 CFM, 44 dBA, 120x120x25mm, Dual Ball Bearing, PWM Fan Control

Model

Brand Delta

Model FFC1212D-PWM

Details

Type Case Fan

Compatibility Case

Bearing Type Dual Ball Bearing

RPM 4000 RPM

Air Flow 150 CFM

Noise Level 44 dBA

Power Connector 4 Pin

Color Black

Features

Features Premium quality coolilng fan with industrial strength made by one of the best known electronic manufacturers in the world, Delta Electronics, this 120 x 120 x 25mm PWM high quality brushless DC air coolilng fan will give you 150 CFM of directional air flow at maxium speed, yet quietness when under less load thanks to the smart and automatic fan speed control via PWM connection.

Fan speed is 4000 RPM with corresponding air flow of 150.33 CFM ( 4.257 M³/Min. ), and noise level of 56.4 dBA. Air pressure is 12.43 mm-H2O or 0.489 in-H2O. Rated voltage is 12VDC, and operating voltage is 10.8 to 12.6VDC. Input power is 1.45A at 17.4W. Maximum power consumption is 1.68A at 20.16W. Premium quality dual ball bearing is in place to ensure exceptionally long life and extra high performance. Unique directional fin design will concentrate air flow more to where it is supposed to go.

Fan will be at its maximum speed of 4000 RPM at 100% duty cycle, 2450 RPM at 50% duty cycle, 1150 RPM at 20% duty cycle, or 0 RPM at 0% duty cycle. The frequency for control signal of the fan will be able to accept 30HZ to 300KHZ. Preferred operating point for the fan is 20KHZ, and at 20KHZ 30% duty cycle the fan will be able to start from a dead stop. Fan speed will default to maximum when the speed control input is left unconnected. Fan will start at low speed and reach full speed in about 10 seconds.

Safety approvals include CE, CSA, UL, VDE, and RoHS. No ozone depleting substances such as PBBs, PBBOs, CFCs, PBBEs, PBDPEs, or HCFCs.

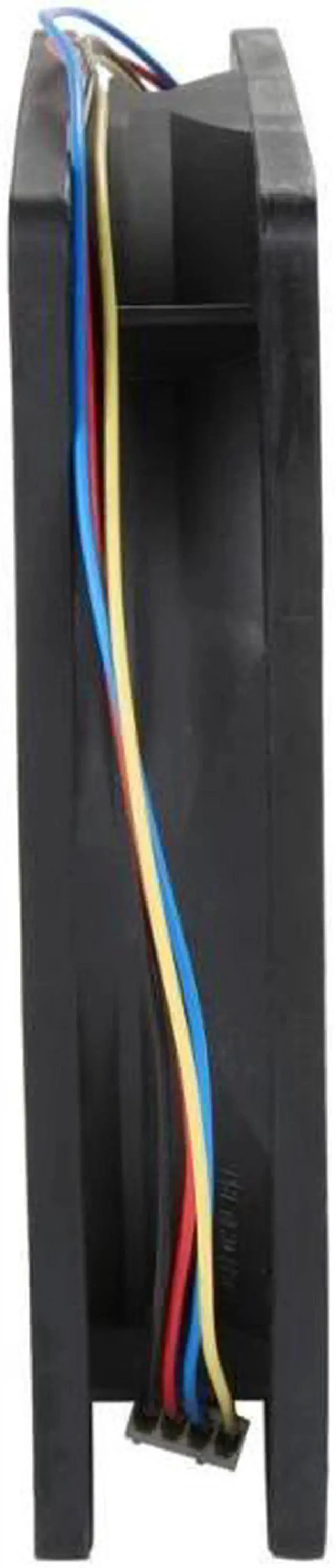

This fan has 4 wire leads with 4 pin PWM connector, and wire length is approximately 13 inches. Please make sure enough power is supplied to this fan in operation if you like to reach its maximum speed. Please exercise caution when handling this fan in operation due to its high speed.

Dimensions & Weight

Dimensions 120.00 x 120.00 x 25.00 mm

Additional Information

Date First Available December 06, 2022
