Tech Cabin Digital Power Meter US Plug LCD Power Saving Energy Monitor Watt Amp Volt KWh Meter Electricity Analyzer

Feature:

-Easily measure the power consumption and cost of electrical appliances.

-Simply plug the meter into the wall and then plug the device into the meter.

-With the help of this power meter monitor, you can determine the cost of the backup device, the power factor, whether the device is actually charged and how long the device has been charged.

-Measure various parameters: power (W), energy (kWh), volts, amperes, hertz, power factor and maximum power (W), time, number of days-kWh is very important, because this is the basis of your electricity bill!

-Clear LCD display,

easy to read (screen size: 45mm x 70mm).

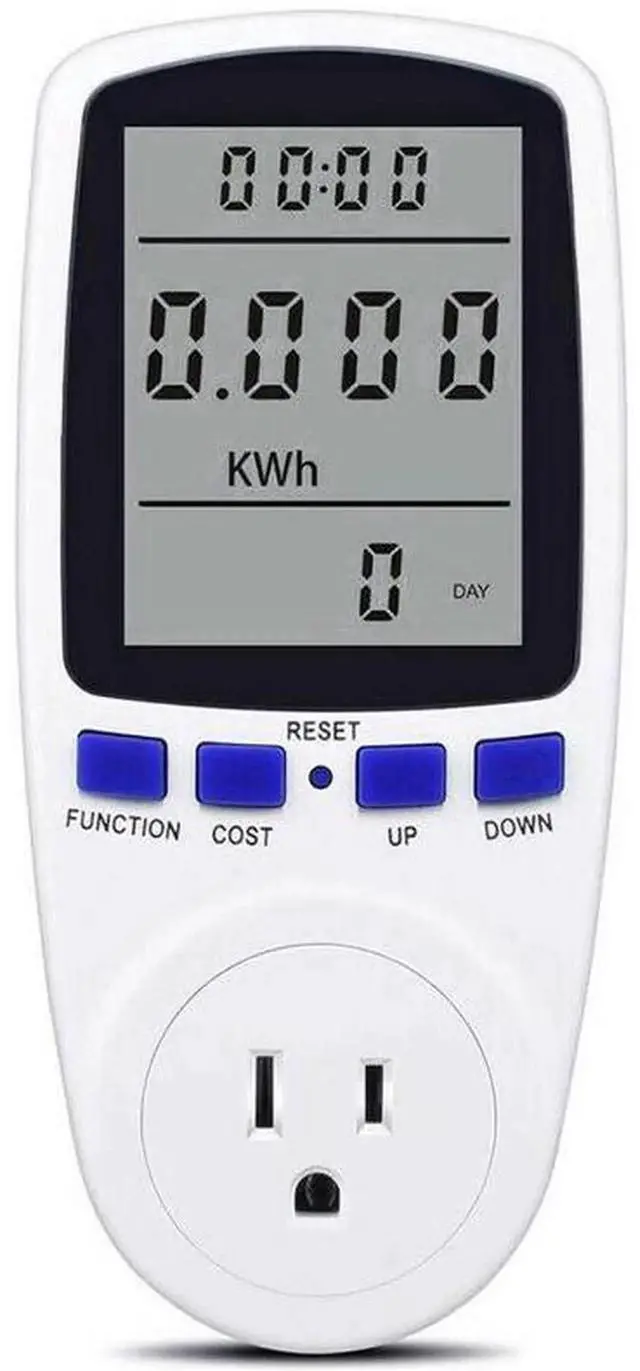

-Cumulative kWh monitor

-Calculate electricity bill

-Press the COST, FUNCTION, UP and DOWN buttons to set the electricity price according to the instructions

-Set the electricity value range from 00.00COST /KWH~ 99.99COST /KWH

-Display volts, amperes and wattage, accurate to 3%

-Low power consumption.

-Built-in battery ( 3.6V rechargeable battery) backup-allows the meter to be moved (and viewed) without losing readings.

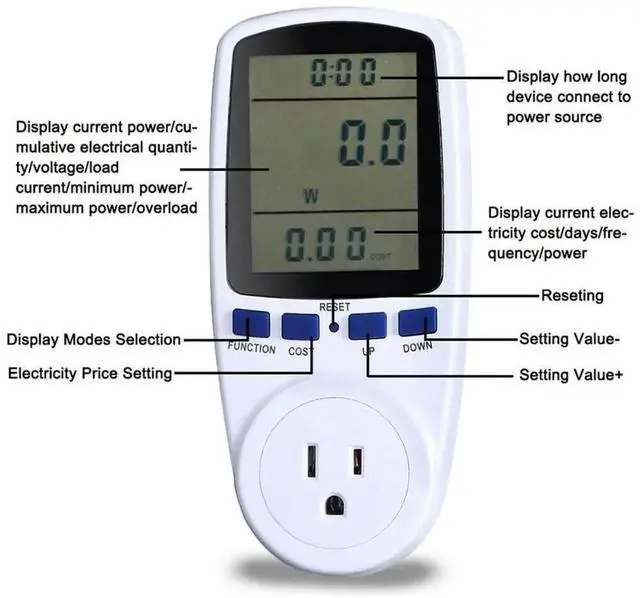

8 DISPLAY MODES:

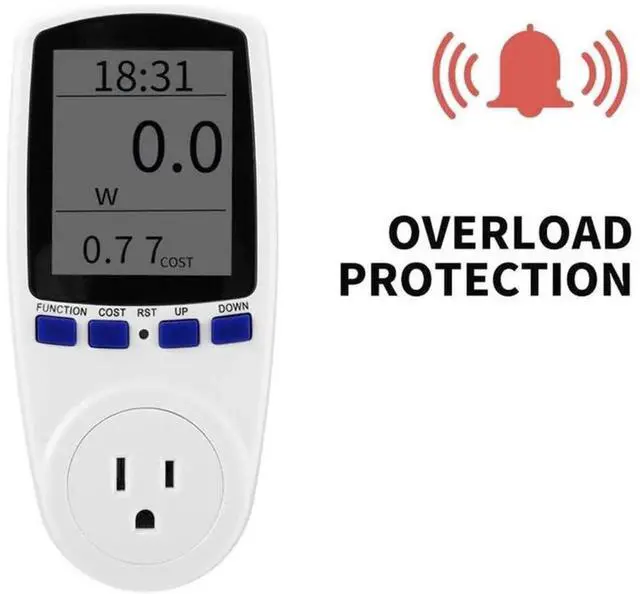

Time/Watt/Cost Display; Time/Cumulative electrical quantity Display; Time/Voltage/Frequency Display; Time/Current/Power Factor Display; Time/Minimum Power Display; Time/Maximal Power Display; Time/Price Display; Overload Display.

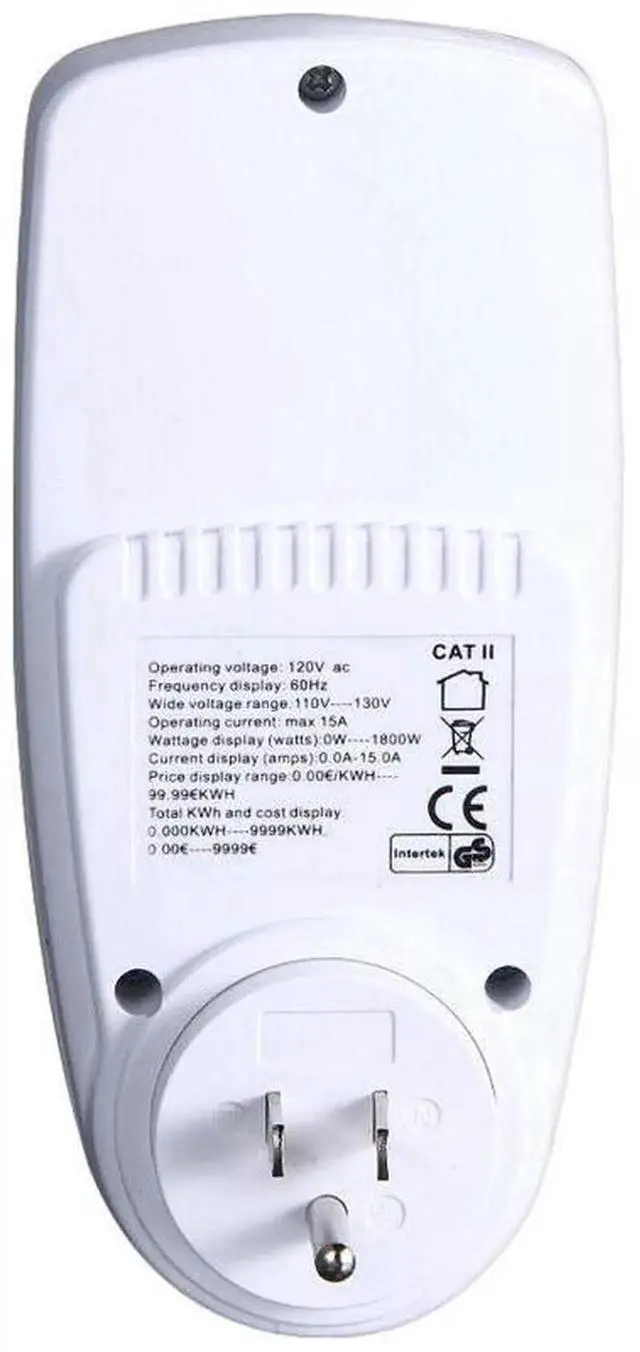

Specification:

Power consumption of the power meter monitor: 0.5W

Working voltage: 120VAC

Frequency display: 60HZ

Working current: 15A max

Wide voltage range: 110V-130V

The set wattage display (watts) is 0W~9999W; but the actual wattage display (watts) is 0~1800W

Time display range: 0 seconds to 9999 days

Voltage display range: 0V~9999V

Current display (ampere): 0.000A ~ 15.000A

Frequency display: 0Hz~9999Hz

Price display range: 0.00COST /KWH~ 99.99COST /KWH

Total KWh and cost display: 0.000KW h-9999KWh, 0.00COST ---- 9999COST

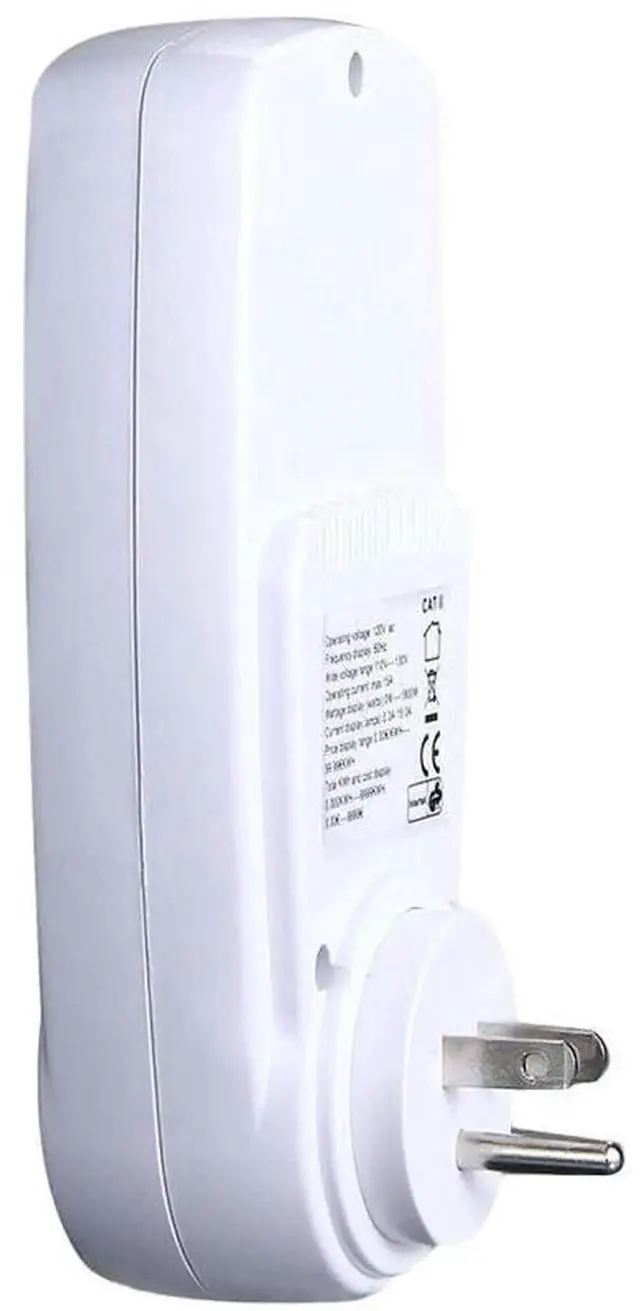

3-pin US plug

Package Included:

1X power meter (US plug)

1X User Manual
