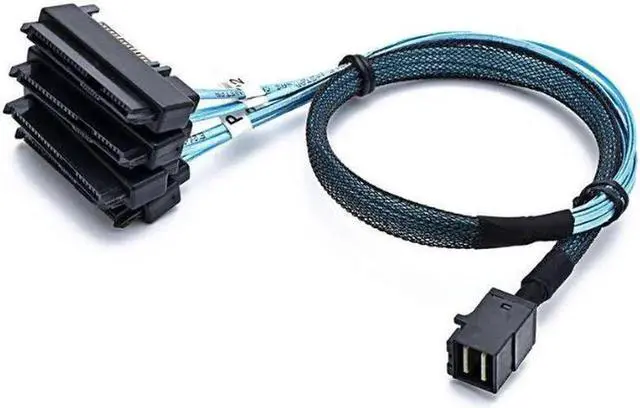

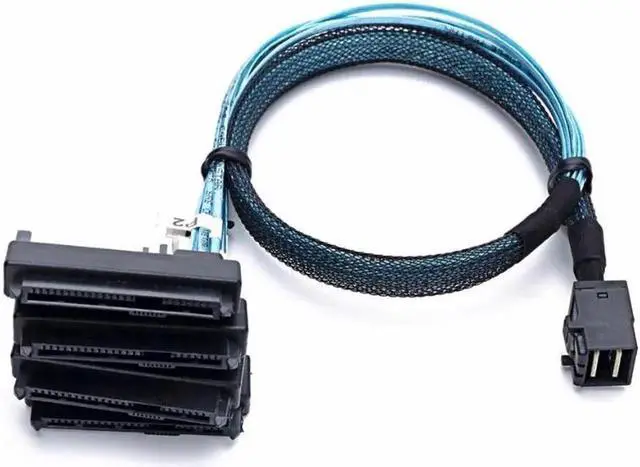

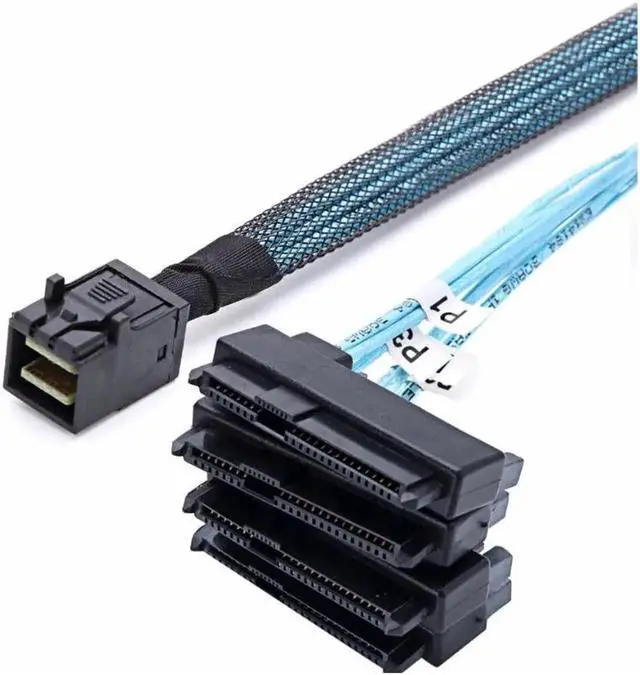

SAS SATA Cables SFF-8643 To 4 SFF-8482 Internal Mini SAS HD to 4 29pin SFF-8482 connector with SAS 15pin Power Port 12GB/S Cable(0.5m)

Features:

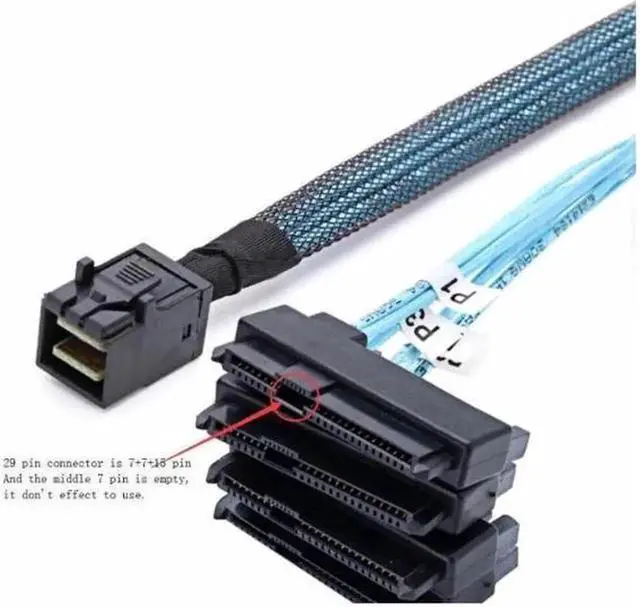

Note: 29pin SFF-8482 is 7+7+15 pin, the middle 7 pin is empty, it don't effect to use.

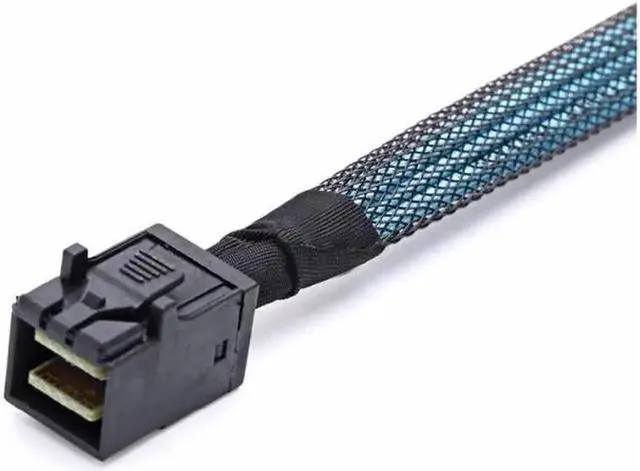

side 1: Internal Mini SAS sff-8643

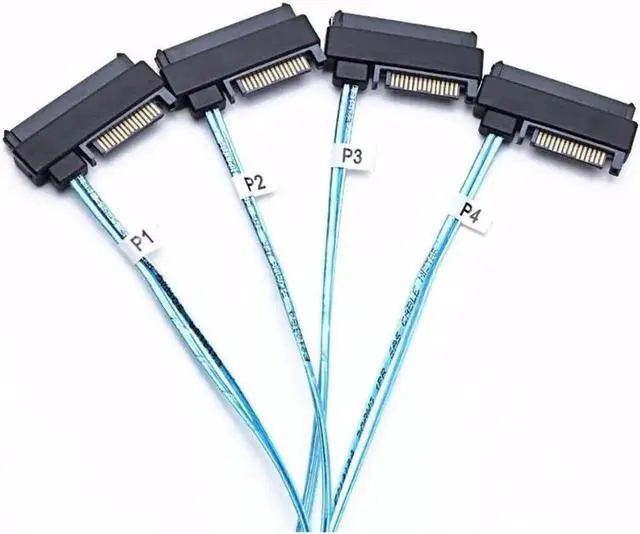

side 2: (4) 29pin SFF-8482 connectors with SAS 15pin power port

cable: 30awg

cable length: 0.5 ( 1.64 ft)/1m( 3.28 ft).

cable Color: black & Blue.

Transmission rate 12 Gbps.

Internal Mini SAS SFF-8643 to (4) 29pin SFF-8482 connectors with power connecting a SAS controller (SFF-8643) to four SATA/SAS disks (SFF-8482)

Please note that Mini SAS (SFF-8643) is host, 4 SAS 29 (SFF-8482) is target, internal Mini Serial Attached SCSI x4 (SFF-8643) to (4) x1 (SFF-8482) Serial Attached SCSI (controller based) fan-out cables

Before you buy this cable, Please make sure the Mini SAS (SFF-8643) on your motherboard or RAID controller. If the Mini SAS (SFF-8643) on your backplane, this cable will not work with them

Mini SAS (SFF-8643) connect to the controller, 4 SAS connect to the HDD (hard disc driver)

Applications

Data/Communications

1. RAID (Redundant Array of Independent Disks ), 2. Workstations, 3. Rack-mount server, 4. Servers, 5. Storage rack.

Package included:

1 x SFF-8643 To 4 SFF-8482 cable
