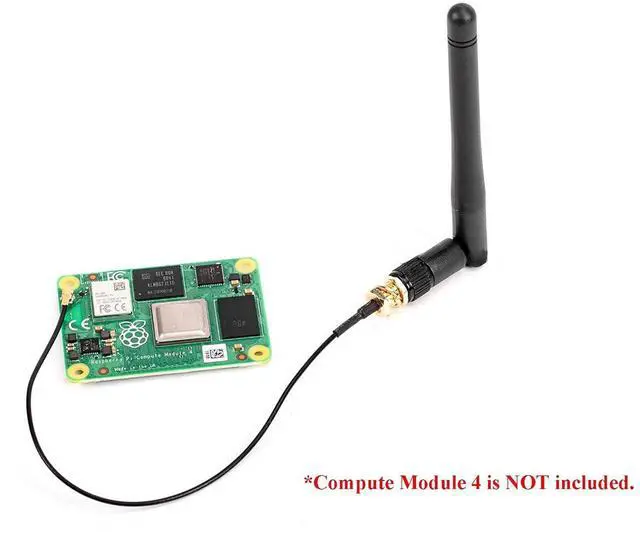

Antenna Kit Compatible with Raspberry Pi Compute Module 5 (CM5) / Compute Module 4 (CM4), Supports 2.4G/5G W-i-F-i Frequency Band, SMA Male Central Pin, 2±0.5 dBi
Limited time offer, ends 07/19 By EmpressTech
- Antenna Compatible with Raspberry Pi Compute Module 5 (CM5) and Compute Module 4 (CM4); Frequency Range: 2400-2500/5150-5850 MHz; Maximum power: 10 W; Bandwidth: 100700 MHz; Connector: SMA male central pin
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Antenna Specification
Frequency range: 2400-2500/5150-5850
MHz Maximum power: 10
W Bandwidth: 100700
MHz VSWR: 1.92
Connector: SMA male central pin
Peak Gain: 2± 0.5 dBi
Body Material: TPEE
Output Impedance: 50
Operating Voltage: -20C ~ + 70C
Polarisation: Vertical
Radiation: Omnidirectional

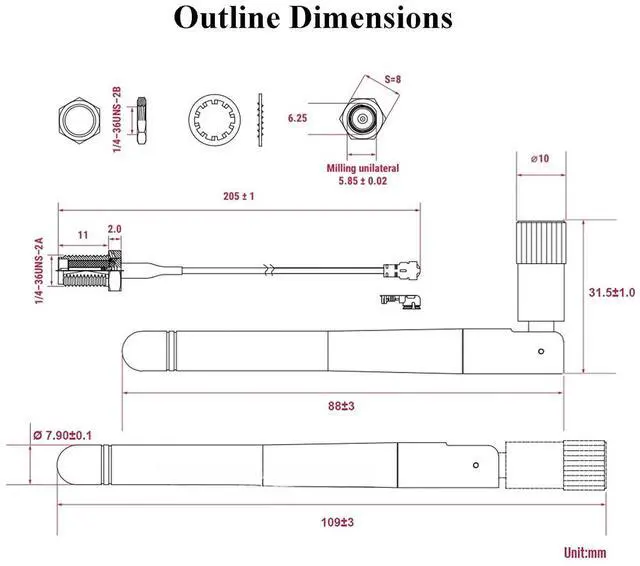

Dimensions: 109 × 10 mm Package Content ORD-CM4-ANTENNA x1
Frequency range: 2400-2500/5150-5850
MHz Maximum power: 10
W Bandwidth: 100700
MHz VSWR: 1.92
Connector: SMA male central pin
Peak Gain: 2± 0.5 dBi
Body Material: TPEE
Output Impedance: 50
Operating Voltage: -20C ~ + 70C
Polarisation: Vertical
Radiation: Omnidirectional
Dimensions: 109 × 10 mm Package Content ORD-CM4-ANTENNA x1
