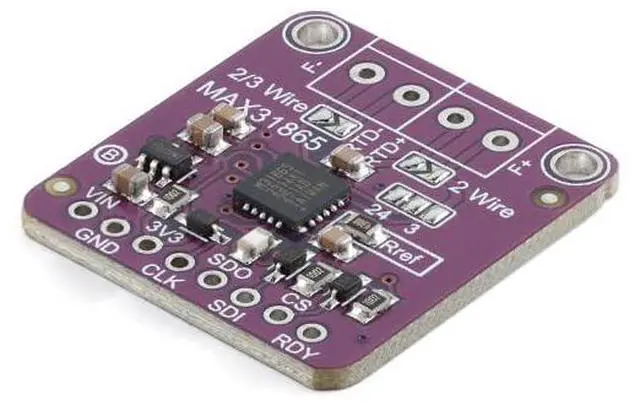

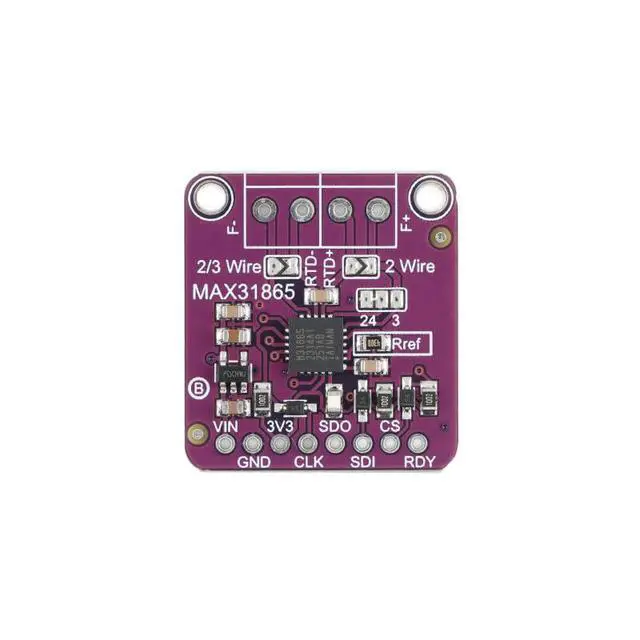

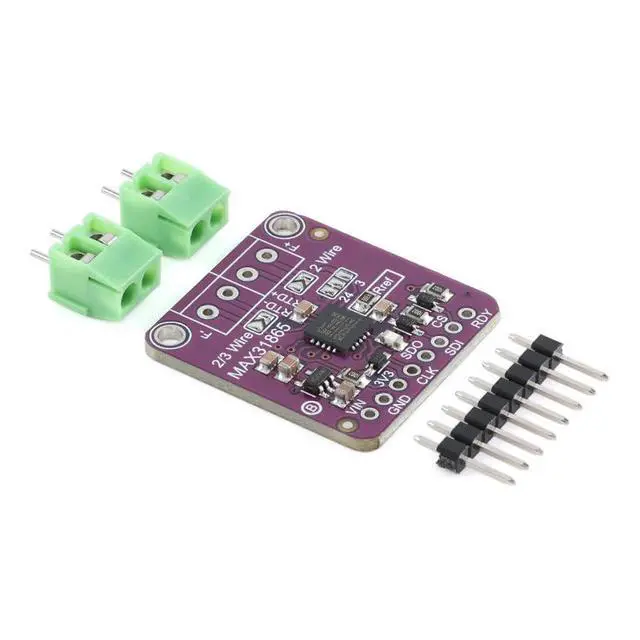

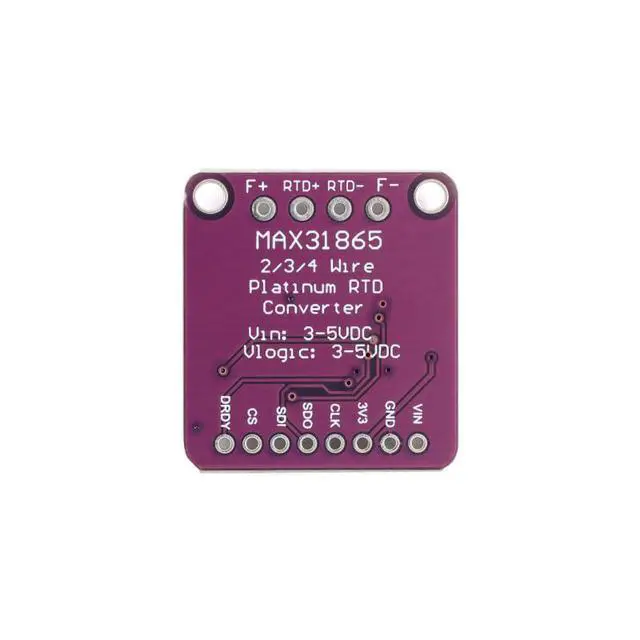

1Pc MAX31865 RTD Sensor Module Platinum Resistance Detector for PT100/PT1000
- RTD-to-Digital Temperature Converter: The MAX31865 module is designed for platinum resistance temperature detectors, converting RTD resistance into digital temperature data. It is suitable for PT100/PT1000 temperature sensing applications, industrial temperature monitoring, heating control, laboratory equipment, and embedded electronics projects.; High-Resolution 15-Bit ADC: Featuring a 15-bit ADC, the MAX31865 provides precise resistance-to-digital conversion for RTD temperature measurement. The nominal temperature resolution is 0.03125°C, allowing the module to detect small temperature changes for accurate monitoring and control.; Wide Temperature Measurement Range: This RTD interface supports temperature measurement from as low as 100°C up to +800°C, depending on the RTD sensor used. It is a practical choice for applications requiring wide-range temperature detection in industrial, scientific, and DIY control systems.; SPI Interface with Flexible RTD Wiring: The module communicates through an SPI interface and supports 2-wire, 3-wire, and 4-wire RTD sensor connections. This flexible wiring compatibility makes it easy to integrate with Arduino, STM32, Raspberry Pi, and other microcontroller platforms.; Built-In Protection and Fault Detection: The MAX31865 input includes overvoltage protection up to ±45V and supports configurable RTD fault detection, including open-circuit and short-circuit detection. With a maximum conversion time of 21 ms, it provides fast and reliable...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
MAX31865 RTD-to-Digital Converter Module, PT100 PT1000 Platinum Resistance Temperature Detector Sensor Interface, 15-Bit SPI Temperature Measurement Module for 2-Wire 3-Wire 4-Wire RTD Probes
Product
Sensor Type: Platinum resistance temperature detector, RTD
Compatible RTD Types: PT100 / PT1000
Operating Voltage: 3.03.
6V Communication Interface: SPI
Supported RTD Connections: 2-wire, 3-wire, 4-wire sensor connections
Temperature Measurement Range: 100°C to +800°C Nominal
Temperature Resolution: 0.03125 °C, varies with RTD nonlinearity
Accuracy: ± 0.5 °C, 0.05 % of full scale
Conversion Time: 21 ms
max Input Protection: Overvoltage protection up to ±45V
Fault Detection: Configurable RTD open-circuit and short-circuit detection
Typical Applications: Industrial temperature sensing, heating control, laboratory instruments, 3D printers, embedded temperature monitoring Pin
Description FORCE+: High-side RTD drive
FORCE: Low-side RTD loop
RTDIN+: Positive RTD input
RTDIN: Negative RTD input
GND: Ground 3V 3: 3. 3V power supply pin
CLK: SPI serial clock line
SDO: Serial data output
SDI: Serial data input
CS: Active-low chip select pin
DRDY: Data ready output pin. DRDY goes low when a new conversion result is available in the data register and returns high after the RTD resistance data register is read.
Product
Specifications
Product Name: MAX31865 RTD-to-Digital Converter Module Main Chip: MAX31865Sensor Type: Platinum resistance temperature detector, RTD
Compatible RTD Types: PT100 / PT1000
Operating Voltage: 3.03.
6V Communication Interface: SPI
Supported RTD Connections: 2-wire, 3-wire, 4-wire sensor connections
Temperature Measurement Range: 100°C to +800°C Nominal
Temperature Resolution: 0.03125 °C, varies with RTD nonlinearity
Accuracy: ± 0.5 °C, 0.05 % of full scale
Conversion Time: 21 ms
max Input Protection: Overvoltage protection up to ±45V
Fault Detection: Configurable RTD open-circuit and short-circuit detection
Typical Applications: Industrial temperature sensing, heating control, laboratory instruments, 3D printers, embedded temperature monitoring Pin
Description FORCE+: High-side RTD drive
FORCE: Low-side RTD loop
RTDIN+: Positive RTD input
RTDIN: Negative RTD input
GND: Ground 3V 3: 3. 3V power supply pin
CLK: SPI serial clock line
SDO: Serial data output
SDI: Serial data input
CS: Active-low chip select pin
DRDY: Data ready output pin. DRDY goes low when a new conversion result is available in the data register and returns high after the RTD resistance data register is read.
