1.51inch Transparent OLED with Expansion Board,for Raspberry Pi/Arduino/STM32,128x64 Resolution Light Blue Color Display,Full Viewing Angle, SPI/I2C Interfaces, Embedded Independent Driver Chip
- 1.51 inch Transparent OLED with Expansion Board for Raspberry Pi/Arduino/STM32full viewing angle
+
+
Overview
Specs
Reviews

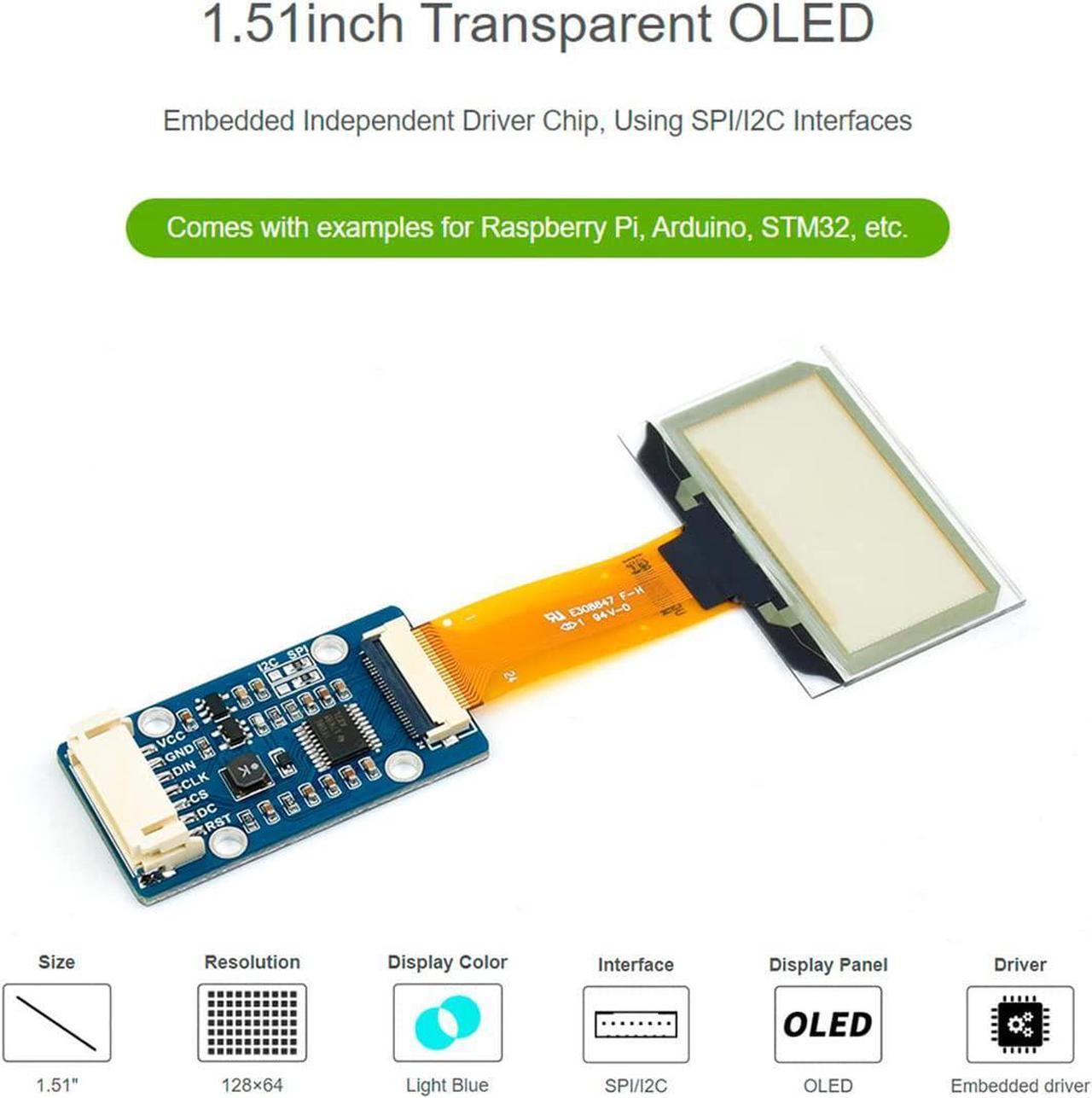

1.51 inch Transparent OLED with Expansion Board for Raspberry Pi/Arduino/STM32full viewing angle
Embedded independent driver chip SSD1309.

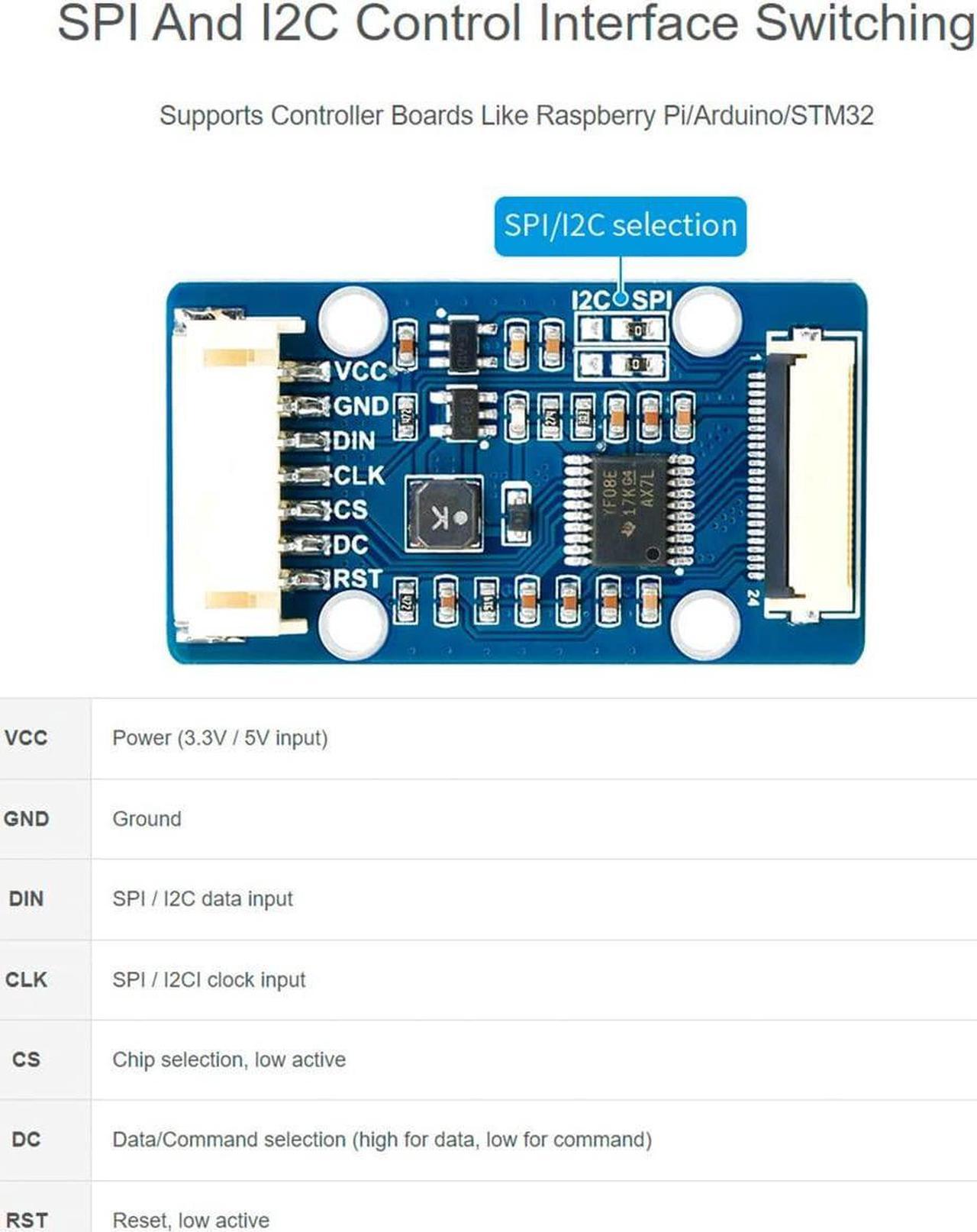

Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate. There are two driver interfaces on the OLED module: 4-wire SPI and I2C interfaces respectively. Two resistors can be soldered on the back of the module. The corresponding communication mode can be selected through the selection of resistors.

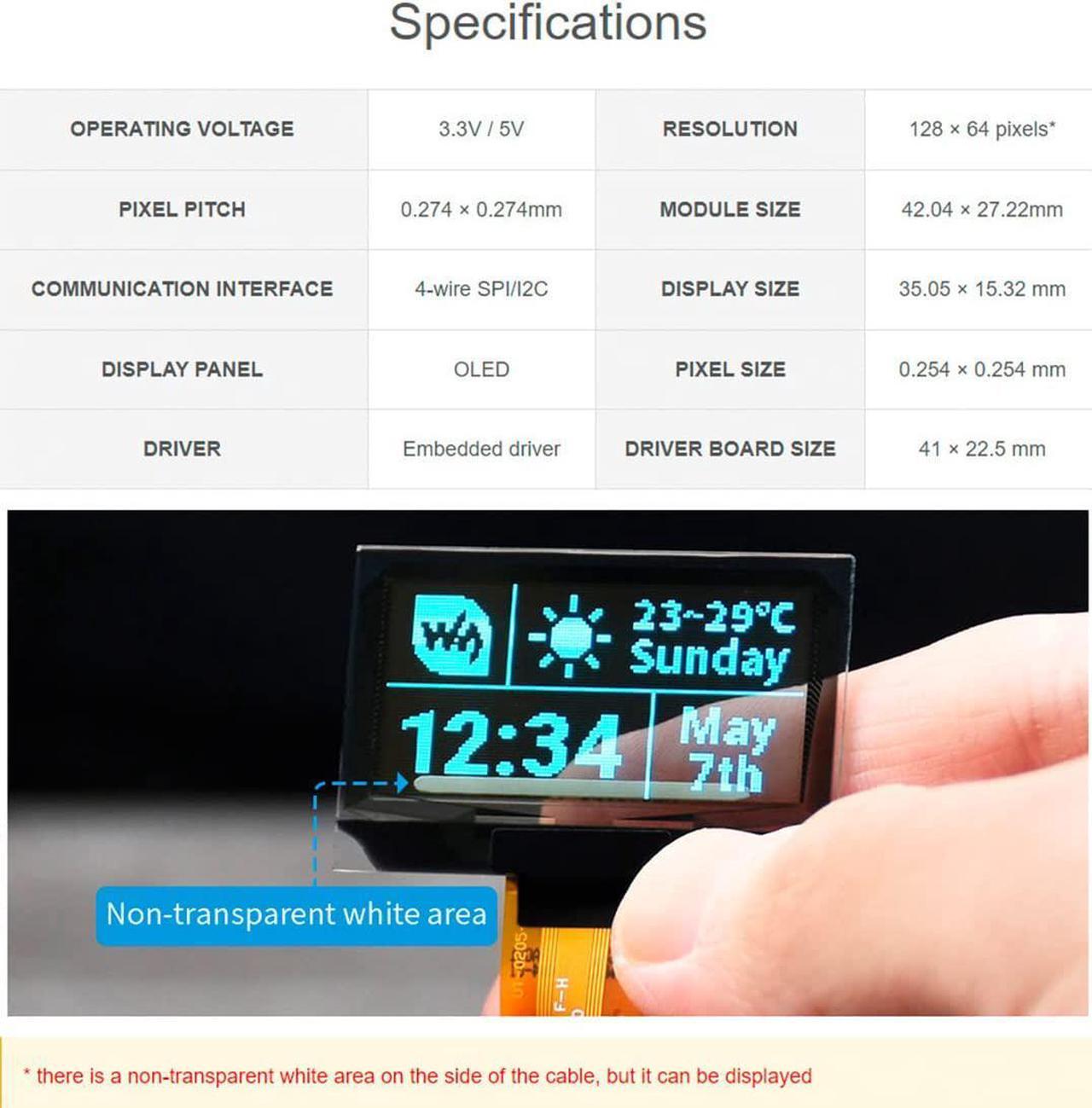

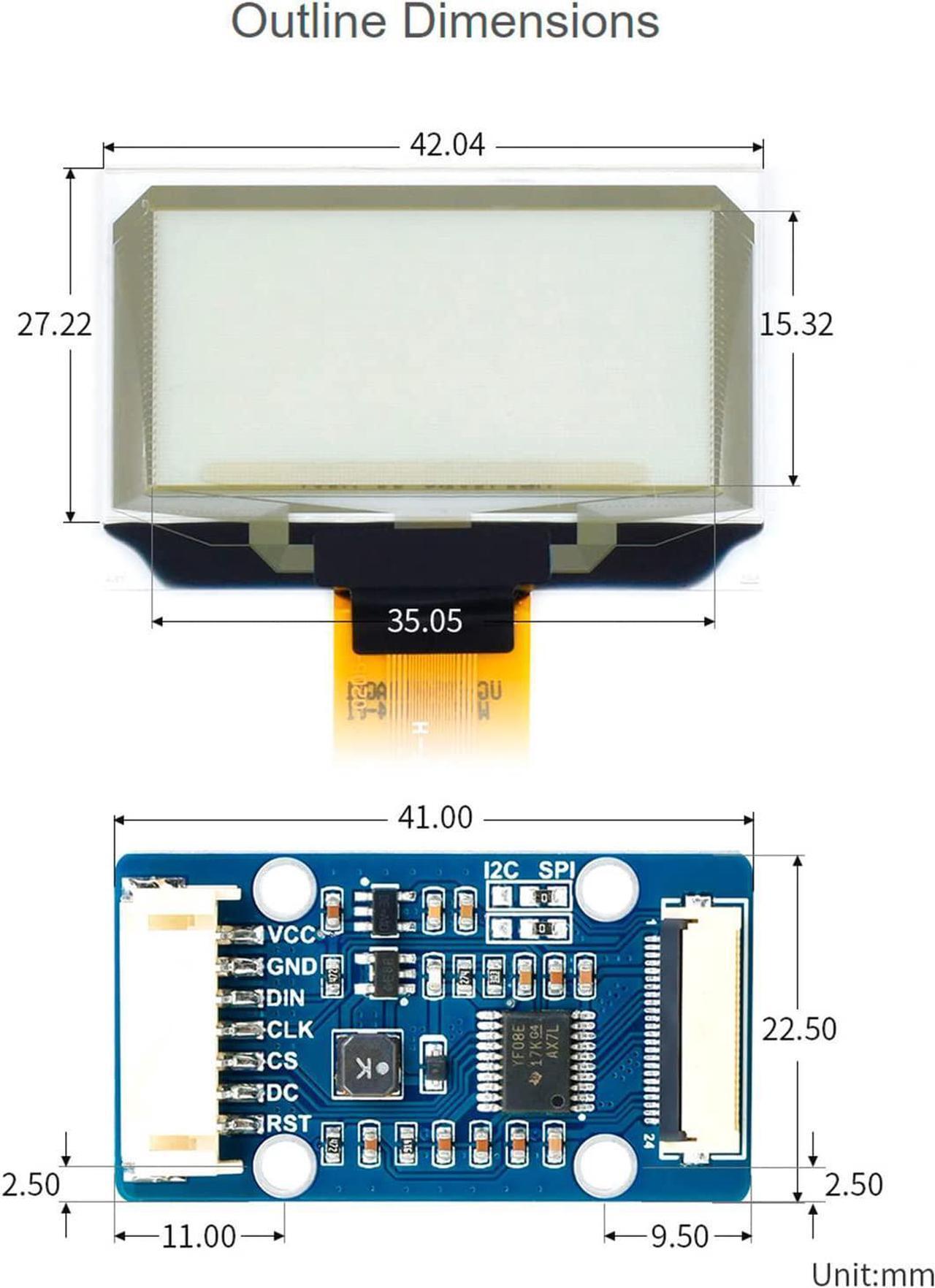

Operating Voltage: 5V/3.3V. Communication Interface: SPI/I2C. Controller: SSD1309. Resolution: 128 x 64. Display Size: 35.05 x 15.32 (mm). Pixel Size: 0.254 x 0.254 (mm). Board Size: 41 x 22.5 (mm).. Display Color: Light Blue.
Online Document/Development Resources: waveshare.com/wiki/1.51inch_Transparent_OLED
Embedded independent driver chip SSD1309.
Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate. There are two driver interfaces on the OLED module: 4-wire SPI and I2C interfaces respectively. Two resistors can be soldered on the back of the module. The corresponding communication mode can be selected through the selection of resistors.
Operating Voltage: 5V/3.3V. Communication Interface: SPI/I2C. Controller: SSD1309. Resolution: 128 x 64. Display Size: 35.05 x 15.32 (mm). Pixel Size: 0.254 x 0.254 (mm). Board Size: 41 x 22.5 (mm).. Display Color: Light Blue.
Online Document/Development Resources: waveshare.com/wiki/1.51inch_Transparent_OLED
