Specific
| Options | 16GB+512GB / 32GB+1TB / 64GB+2TB |
|---|---|

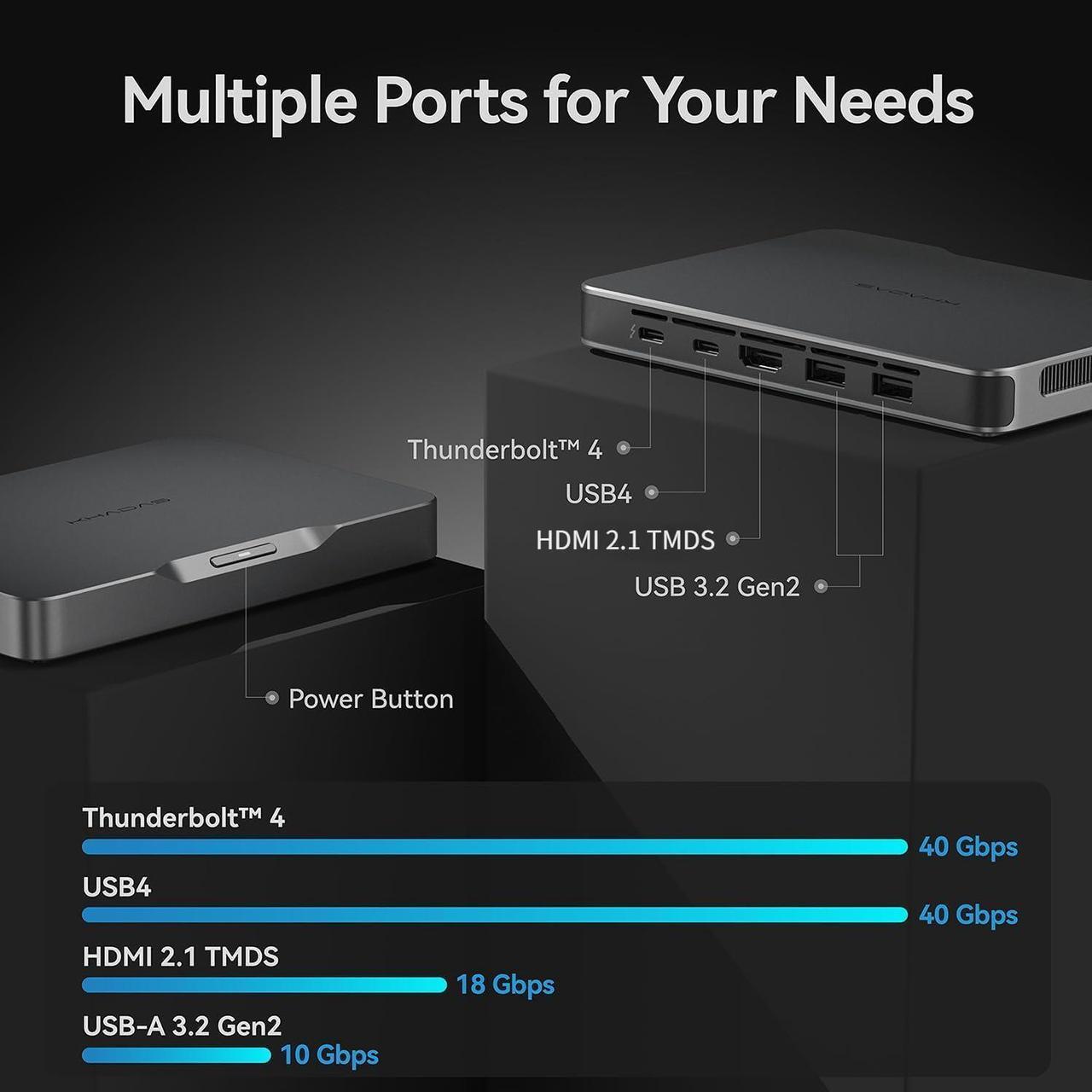

| I/O Port | Thunderbolt 4 (40Gbps) × 1 / USB4 (40Gbps) × 1 / HDMI 2.1 TMDS (18Gbps) × 1 / USB-A 3.2 Gen2 (10Gbps) × 2 |

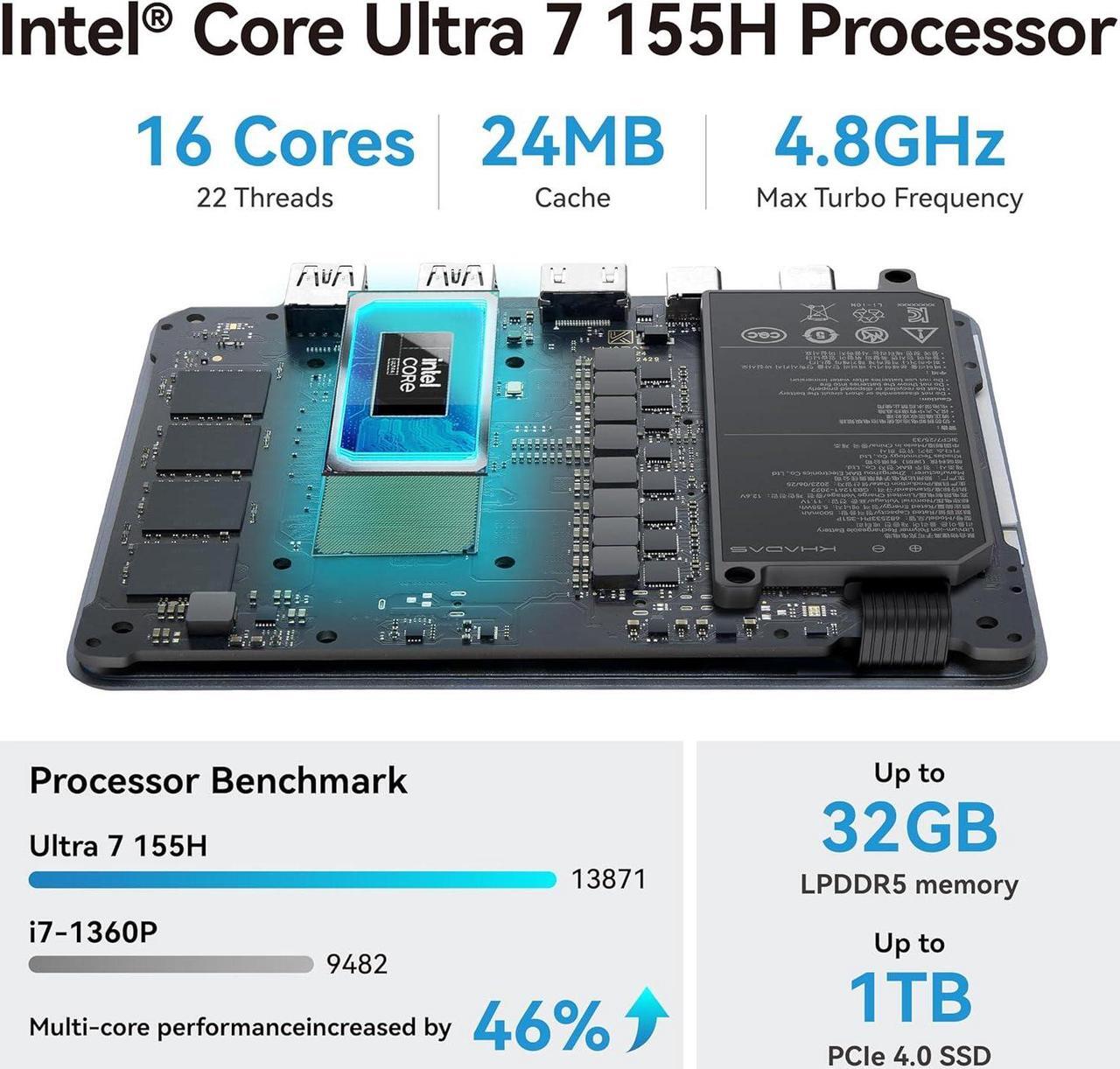

| Intel Chip | Ultra 7 155H/ Ultra 5 125H |
| Size&Weight | 146 × 105 × 20 mm 435 g |
| Graphics | Intel® Arc GPU 2.25GHz dynamic frequency |
| Memory | 64GB LPDDR5X or 32GBLPDDR5 memory Maximum frequency: 7467 MHz or 6400MHz |
| Storage | 2TB or 1TB PCIe 4.0 M.2 2230 SSD Expandable: PCIe 4.0 M.2 2230 SSD × 1 |

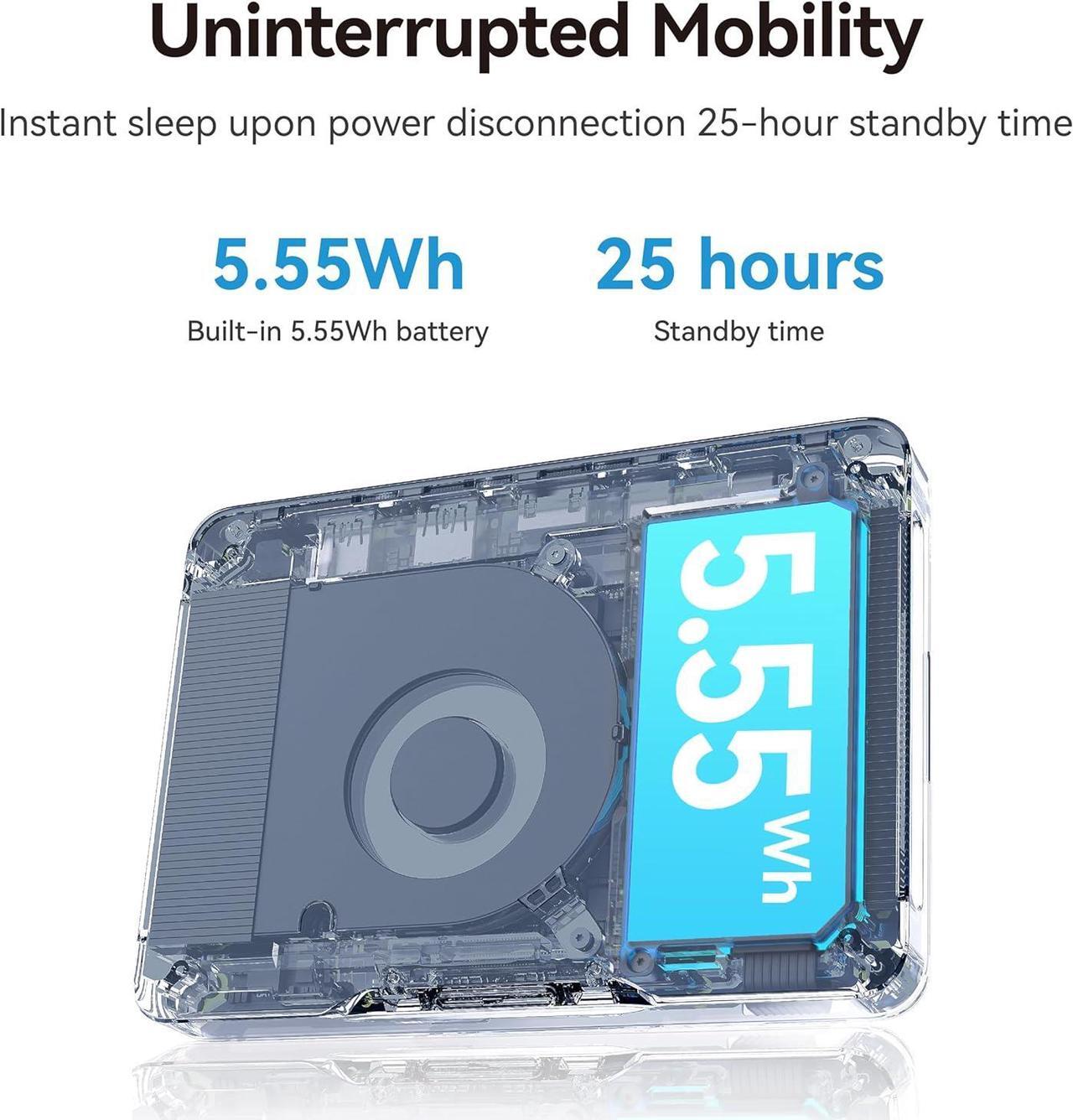

| Battery&Power | Built-in 5.55Wh standby battery 65W USB-C power adapter |
| Communications | Wi-Fi 6E (802.11ax) Bluetooth 5.3 |

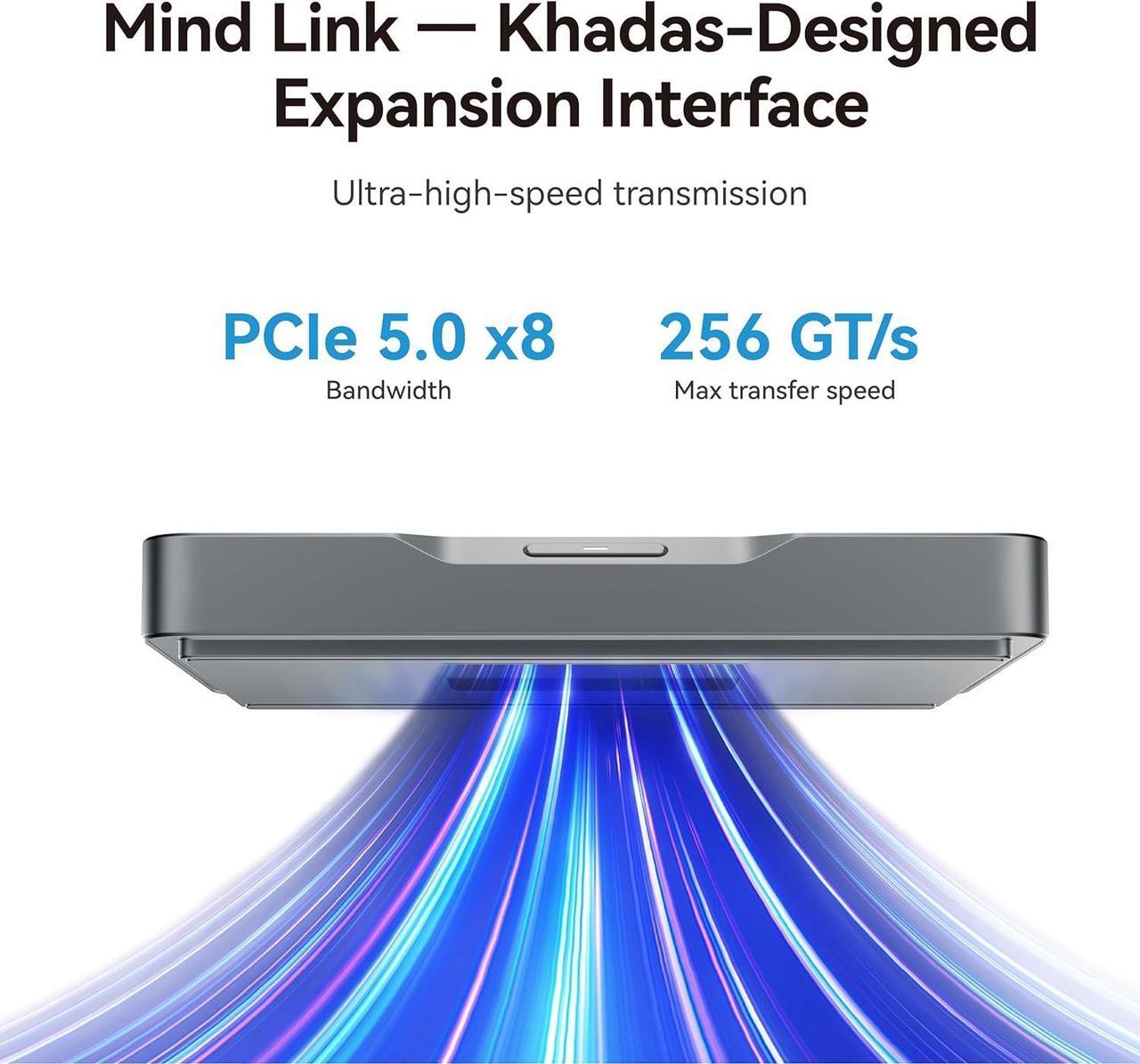

| Mind Link | PCIe 5.0 x8 bandwidth Max speed of 256 GT/s Supports USB 3.2 Gen2, HDMI 2.1, 10A input power |
| Display Output | HDMI 2.1: up to 4K 60Hz Thunderbolt 4 or USB4: up to 8K (60Hz), 5K (72Hz) or 4K (240Hz) |
| Operating System | Windows 11 Home |
Package Included
- 1 × Khadas Mind 2
- 1 × 65W Power Adapter
- 1 × USB-C to USB-C Cable (1.2 m)
- 1 × Manual
- 1 × Warranty Card
Eco-system Device
- Khadas Dock: //www.newegg.com/khadas-dock-silver/p/1DN-042R-00002?Item=9SIBWBMK9T1818
- Khadas Graphics: //www.newegg.com/p/1DN-042R-00003?Item=9SIBWBMKBB6195
- Khadas Mind leather case: //www.newegg.com/p/18W-08G0-00001?Item=9SIBWBMKA14387
- With the above ecosystem device, you can significantly enhance the efficiency of Khadas Mind.
| Products | ||||||
|---|---|---|---|---|---|---|
| Processor | 13th Gen Intel Core i5-1340P | 13th Gen Intel Core i7-1360P | Intel Core Ultra 5 125H 16GB | Intel Core Ultra 7 155H 32GB | Intel Core Ultra 7 155H 64GB | GeForce RTX 4060 Ti 16GB |
| RAM | 16GB | 32GB | 16GB | 32GB | 64GB | 16GB |
| Built-in SSD | 512GB | 1TB | 512GB | 1TB | 2TB | |
| SSD Expandable | 2TB | 2TB | 2TB | 2TB | 2TB | |
| Core&Thread | 12C/16T | 12C/16T | 14C/18T | 16C/22T | 16C/22T | |
| Graphics | Intel Iris® Xe Graphics | Intel Iris® Xe Graphics | Intel Arc GPU | Intel Arc GPU | Intel Arc GPU | |
| Storage Type | PCIe 4.0 M.2 2230 SSD | PCIe 4.0 M.2 2230 SSD | PCIe 4.0 M.2 2230 SSD | PCIe 4.0 M.2 2230 SSD | PCIe 4.0 M.2 2230 SSD | |
| Battery & Power | Built-in 5.55Wh standby battery, 65W USB-C power adapter | Built-in 5.55Wh standby battery, 65W USB-C power adapter | Built-in 5.55Wh standby battery, 65W USB-C power adapter | Built-in 5.55Wh standby battery, 65W USB-C power adapter | Built-in 5.55Wh standby battery, 65W USB-C power adapter | |
| Communications | Wi-Fi 6E (802.11ax) & Bluetooth 5.3 | Wi-Fi 6E (802.11ax) & Bluetooth 5.3 | Wi-Fi 6E (802.11ax) & Bluetooth 5.3 | Wi-Fi 6E (802.11ax) & Bluetooth 5.3 | Wi-Fi 6E (802.11ax) & Bluetooth 5.3 | |
| I/O Interface | Full-featured USB-C x2 HDMI 2.0 18Gbps x1 USB-A 3.2 Gen2 10Gbps x2 | Full-featured USB-C x2 HDMI 2.0 18Gbps x1 USB-A 3.2 Gen2 10Gbps x2 | Thunderbolt 4 40Gbps x1 USB4 40Gbps x1 HDMI 2.1 TMDS 18Gbps x1 USB-A 3.2 Gen2 10Gbps x2 | Thunderbolt 4 40Gbps x1 USB4 40Gbps x1 HDMI 2.1 TMDS 18Gbps x1 USB-A 3.2 Gen2 10Gbps x2 | Thunderbolt 4 40Gbps x1 USB4 40Gbps x1 HDMI 2.1 TMDS 18Gbps x1 USB-A 3.2 Gen2 10Gbps x2 | USB-C × 1 USB-A 3.2 Gen2 10 Gbps × 1 HDMI 2.1a × 2 DisplayPort 1.4a × 1 2.5 Gbps Ethernet × 1 SD 4.0 Card Reader 200 MB/s × 1 3.5 mm Headphone Jack × 1 |
